SX4-12-12B
NADE
1
1 year
China
Product Description

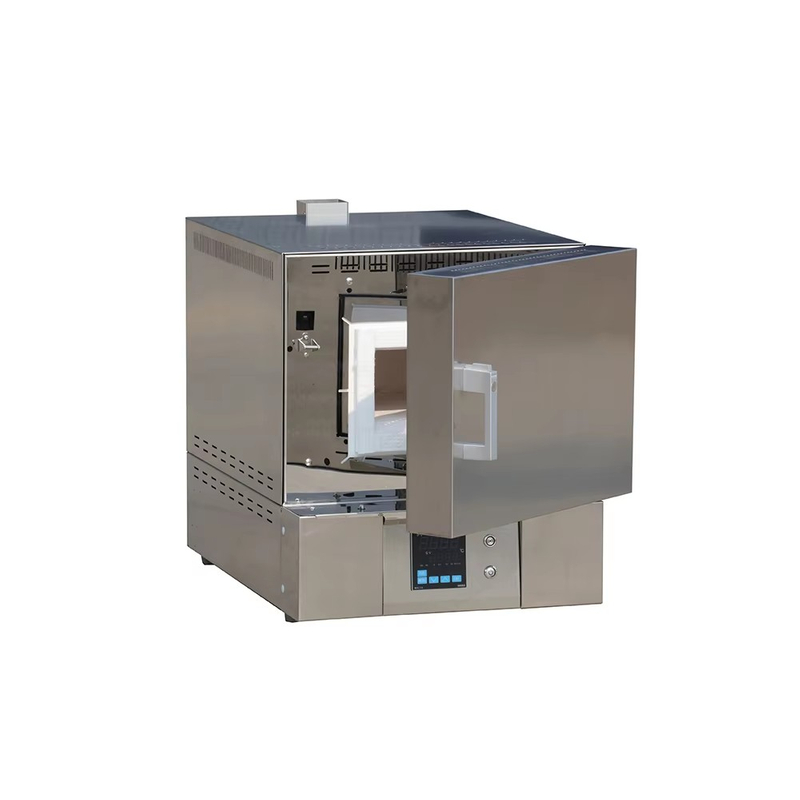

NADE SX4-12-12B 1200℃ stainless steel out shell Ceramic Fiber Muffle Furnace
(B series with the stainless steel out shell)
Sintering, melting, elemental analysis and physical measurement within 1200℃ of precise control
Characteristics:
v Mirror stainless steel mouth, long-term use will not change color.
v Imported double insulated ceramic liner, stable performance
v Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.
v In the double shell, the air sleeve is insulated, and the double guiding air passage.
v High-precision micro-computer controller and precision sensor are perfectly integrated, and the temperature is accurate.
SX4 model also has the following characteristics:
v Import time control system and high precise sensor with sensitive, response, high precision and good stability.
v Adding exhaust devices is beneficial to ashing.
v Split design, circuit detachable, easy to maintenance and repair.
v P model is program temperature control type. Program temperature controller can programme multistage program.
Specification
Model | SX3-2.5-12 | SX3-5-12 | SX3-8-12 | SX3-10-12 | SX3-36-12 | |
SX3-2.5-12B | SX3-5-12B | SX3-8-12B | SX3-10-12B | |||
SX4-2-12 | SX4-7-12 | SX4-12-12 | SX4-16-12 | SX4-36-12 | ||
SX4-2-12B | SX4-7-12B | SX4-12-12B | SX4-16-12B | |||
SX4-2-12P | SX4-7-12P | SX4-12-12P | SX4-16-12P | SX4-36-12P | ||
SX4-2-12PB | SX4-7-12PB | SX4-12-12PB | SX4-16-12PB | |||
Heating mode | Alloy wire heating in three sides left; right; top side. | |||||
Function | Temp. Range | 100-1200℃ | ||||
Temp. Resolution Ratio | 1℃ | |||||
Temp. motion | ±1℃ | |||||
Temp.Rising time to max temp | ≤30min | |||||
Structure | Chamber material | Ceramic fiber | ||||
Outer shell | cold rolling steel electrostatic spraying exterior; B model: stainless steel | |||||
Insulation layer | Ceramic fiber | |||||
Heater | Alloy heating wire | |||||
Power rating | 1.5kW | 3.0kW | 4.5kW | 6.0kW | 9.0kW | |
Exhaust hole | φ30mm(chimney size 80*60mm) | |||||
| Temp. control mode | SX3 Type : domestic Xianmen Yudian single-stage temperature controller SX4 Type:Japaness conduction single-stage temperature controller SX4-P:Japaness Fuji color LCD 64- segment programmed temperature controller | ||||
Temp. setting mode | Touch button setting | |||||
Temp. display mode | Measuring temperature: LED upper row, setting temperature: the lower row | |||||
Timer | Timing Function:0~9999 min;SX4-P:Timing Function, 99 hours and 59 minutes(with Timing Waiting Function) | |||||
Operation function | Fixed temperature operation, timing function, auto stop. | |||||
Additional function | Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory | |||||
Sensor | SX3:Platinum-rhodium sensor；SX4:High precision K type sensor | |||||
Safety device | Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermocouple failure | |||||
| Inner Chamber size (W*L*H)(mm) | 120*200*80 | 200*300*120 | 200*300*200 | 250*400*160 | 300*400*300 |
Exterior size (W*L*H)(mm) | 450*685*600 | 530*785*640 | 530*785*720 | 600*895*700 | 630*885*820 | |
Packing size (W*L*H)(mm) | 580*775*730 | 660*875*770 | 660*875*850 | 730*985*830 | 760*975*950 | |
Volume | 2L | 7L | 12L | 16L | 36L | |
Current rating (50/60HZ) | AC220V/6.6A | AC220V/13.6A | AC220V/20.4A | AC380V/9.9A | AC380V/13.6A | |
NW/GW (kg） | 33/37 | 45/50 | 62/68 | 77/96 | 87/106 | |
optional type | LCD program temperature control device with USD date storage | |||||
