Lab Drying Equipment
Nade
DZG-6050SBD
Zhejiang, China
50L
±2℃ at 100℃
Ambient +10-400°C
(Platinum gold resistor PT100)
Vacuum Oven with pump
Separating the plank type heats
60Pa
2No
AC110/220V 10% 50/60Hz
Digital Display
Product Description

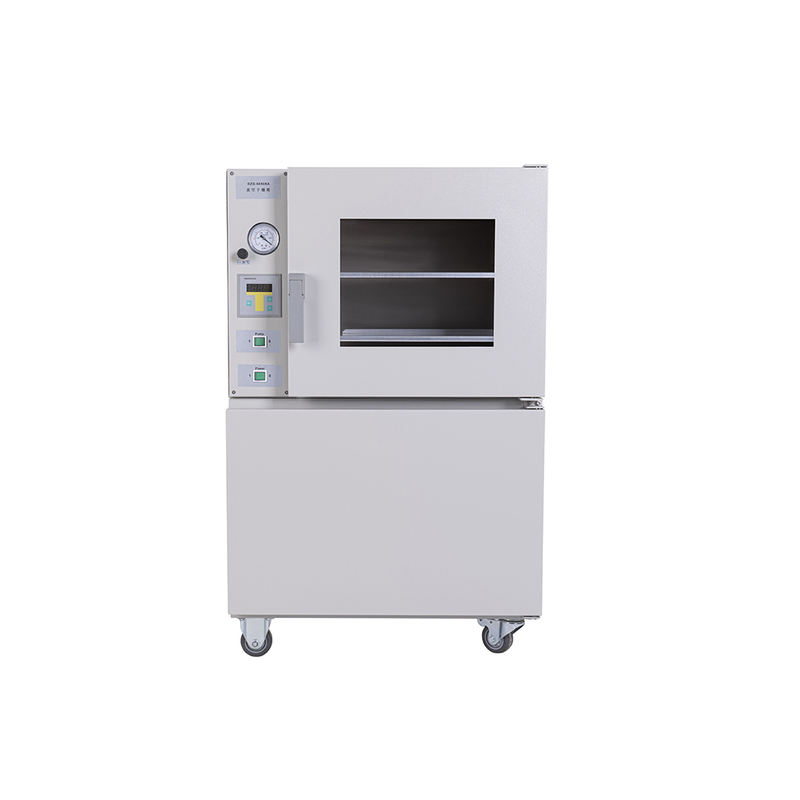

Nade Lab Measuring InstrumentS Sign type Vacuum Oven with pump DZG-6050SBD +10~400C 50L
Feature:
1.Cuboid chamber maximizes the effective cubage.
2.Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.
3.Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.
4.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.
5.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
6.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
7.D Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation.
8.K Models have digital vacuum gauge, vacuum quantity control can be achieved.
9.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
10.Equipped with the interface of inert gas and flow meter of inert gas. (Option)
| Mode(Stand type) | DZG-6050SA(D) DZG-6050SA(D)K | DZG-6100(D) DZG-6100(D)K | DZG-6050SB(D) | DZG-6090(D) DZG-6090(D)K | DZG-6210(D) DZG-6210(D)K | ||
| Chamber volume (L) | 50 | 90 | 50 | 90 | 210 | ||
| Environmental condition | Temperature 5~ 40℃ | ||||||
|
| Maximum relative humidity 80% | ||||||
|
| Altitude up to 1500m | ||||||
| Power | AC220V,50Hz | ||||||
| Range | Ambient +10-250℃ | Ambient +10-400℃ | Ambient +10-250℃ | ||||
| Temperature | Accuracy | ±2℃ at 100℃ | |||||
|
| Fluctuation | ±1℃ | |||||
|
| Controller | PID microprocessor controls, touch type, numeral manifestation | |||||
|
| Sensor | Platinum gold resistor PT100 | |||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||||
| Material | Internal | 304 stainless steels | |||||
|
| External | Iron 08F | |||||
| Dimension(mm) | Internal | 415×370×345 | 450×450×450 | 415×370×345 | 450×450×450 | 560×640×600 | |
|
| External | 710×510×1110 | 610×590×1380 | 770×570×1170 | 610×590×1380 | 720×730×1660 | |
| Vacuum degree | 60Pa | ||||||
| Heating way | Surrounding heating | Shelf heating | |||||
| Net weight | 145KG | 170KG | 155KG | 170KG | 230KG | ||
| Consumption power | 1300W | 2120W | 1600W | 1200W | 2100W | ||
| Shelve(Supply/most) | 2 | 3 | |||||
