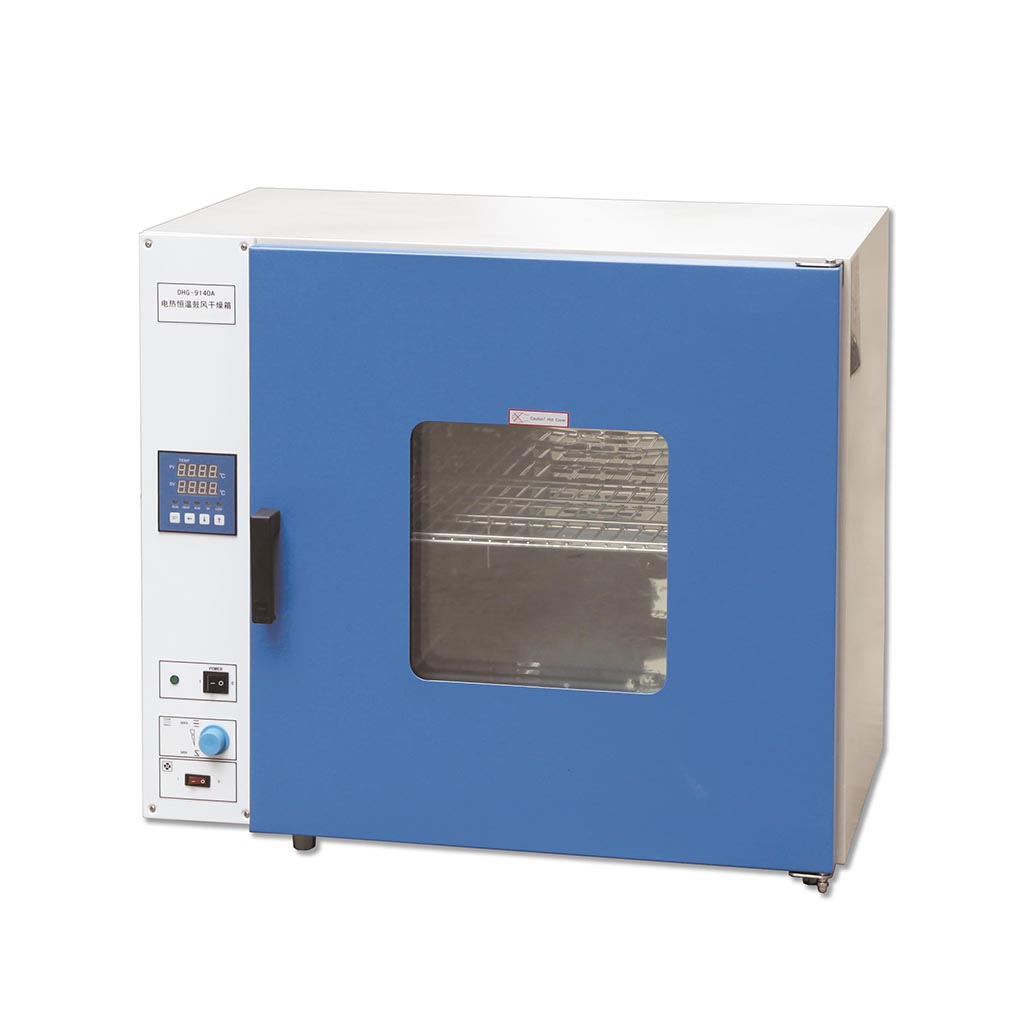

DHG-9140A Benchtop electro-thermostatic hot air circulation drying oven

Temp range: RT +10℃~250℃
Temp resolution: 0.1℃
Input power: 2070W
Inner dimension(mm): 550*450*550
Availability:
  • DHG-9140A

  • NADE

  • AC 220V/50Hz

  • 1

  • 1 year

  • China

Product Description

DHG9140A台式电热鼓风干燥箱
For industrial and mining enterprises, laboratories, scientific research units, etc. for drying, baking, wax melting, and sterilization.


Feature

1. LED digital highlight display microcomputer temperature controller with temperature control protection and timing function,  precisionand reliable temperature control .
2. The box body is made of mirror-finished stainless steel or brushed plate material by chlorine arc welding, and theenclosure is made of high-quality steel plate material with beautiful and novel appearance.
3. Hot air circulation system is composed of fan which can continuously run under high temperature and proper air duct, uniform temperature in the operating chamber.
4. Use the imported fan and imported thyristor, which has a long service life and can avoid frequent replacement.
5. Independent temperature limit alarm system, automatically interrupts when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (Optional)
6. Can be equipped with a printer or 485 interface, which can be used to connect to a printer or computer for real-time recording and temperature parameter changes. (Optional)
7. The "D" series are intelligent ten-segment programmable liquid crystal controllers.

Specification


Model

DHG-9000 series of benchtop electro-thermostatic air drying oven

9030A

9030AD(101-0A)

9070A

9070AD(101-1A)

9140A

9140AD(101-2A)

9240A

9240AD(101-3A)

Voltage

AC 220V/50Hz

Temperature range

RT +10℃~250℃

Temperature resolution

0.1℃

Temperature fluctuation

±1℃

Operating ambient
temperature

+5℃~40℃

Input power

870W

1570W

2070W

2470W

Inner dimension(mm)

340*325*325

450*400*450

550*450*550

600*550*750

Outline dimension(mm)

625*510*490

740*580*630

830*650*730

880*770*930

Carrier (standard configuration)

2pcs

Timing range

1-9999 minutes

Remark

Imported fan and imported thyristor. The "D" series are intelligent ten-segment programmable liquid crystal controllers. The tanks for model with “A” is made of mirror stainless steel.

Conditions of no-load performance test: ambient temperature: 20℃, and ambient humidity: 50%RH.
