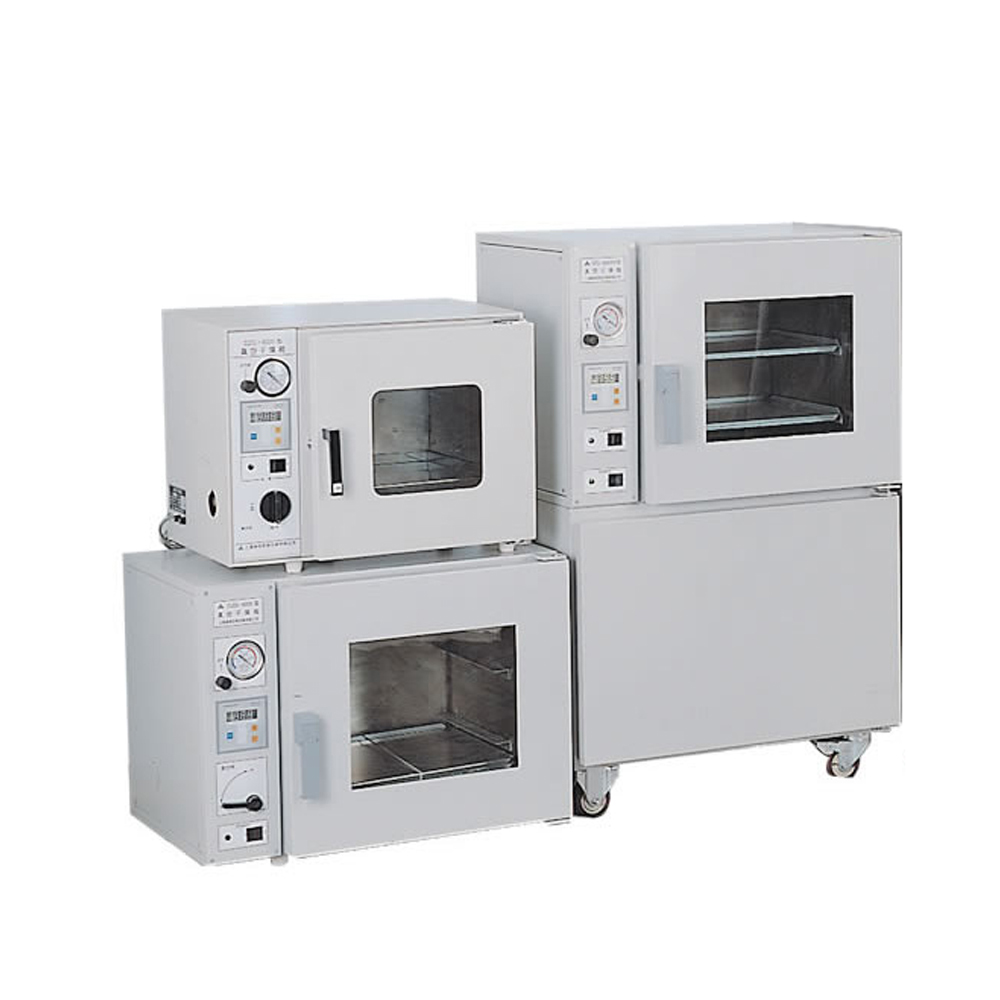

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

  • Vacuum Drying Equipment

  • 50kg

  • Medicine Processing, Chemicals Processing, Plastics Processing

  • New

  • Zhejiang, China

  • Nade

  • 220V

  • 1300

  • 710x510x530mm

  • CE

  • Energy saving

  • 1 Year

  • Online support, Video technical support

  • 71

  • No service

  • Manufacturing Plant, Food & Beverage Factory, Farms

  • None

  • None

  • Ordinary Product

  • Not Available

  • Not Available

  • 1 Year

  • Other

  • 50L

  • Ambient+10-250

  • Altitude up to 1500m

  • 304 stainless steels

  • 60Pa

  • 304 stainless steels

  • Hot Air Drying Machine

  • 08F(Iron 08F)

  • 71

Product Description

Nade CE Certificate laboratory instruments Set type Vacuum Oven and Vacuum Chamber /Furnace DZG-6050K +10~250C 50L

Product Description

Vacuume Oven Detail:

1.Remark: 6090,6210 structure
Heaters are installed among every of shelf, every shelf’s temperature can be controlled separately. Heating process is short, temperature rising quickly. Have vacuum pumps, and equipped with vacuum electromagnetism inflated valve.
2. Remark: 6020 structure
The heater is installed among the shelf, heating process is short, temperature rising quickly.
3. Remark: 6050 structure
Adopting the platetype heater to evenly distribute to heat over the outer wall of the chamber

Feature

1.Cuboid chamber maximizes the effective cubage.

2.stand type vacuum drying oven :Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.

3.Desk type vacuum drying oven:6020,6050 model""s Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.

4.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.

5.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.

6.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.

7.D Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation.

8.K Models have digital vacuum gauge, vacuum quantity control can be achieved.

9.Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.

10.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.

11.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)

12.Equipped with the interface of inert gas and flow meter of inert gas. (Option)

Specification

Mode(Desk type)

6020(D)

6050(D)

6050(D)K

Chamber volume (L)

25

50

Environmental condition

Temperature 5~40℃

Maximum relative humidity 80%

Altitude up to 1500m

Power

AC220V,50Hz

Range

Ambient+10-200℃

Ambient+10-250℃

Temperature

Accuracy

±2℃ at 100℃

Fluctuation

±1℃

Controller

PID microprocessor controls, touch type, numeral manifestation

Sensor

Platinum gold resistor PT100

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Internal

304 stainless steels

External

Iron 08F

Dimension

(mm)

Internal

300×300×275

415×370×345

External

590×420×460

710×510×530

Vacuum degree

60Pa

Heating way

Shelf heating

Surrounding heating

Net weight

33KG

71KG

Consumption power

250W

1300W

Shelve(Supply/most)

1No

2No

Certifications

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

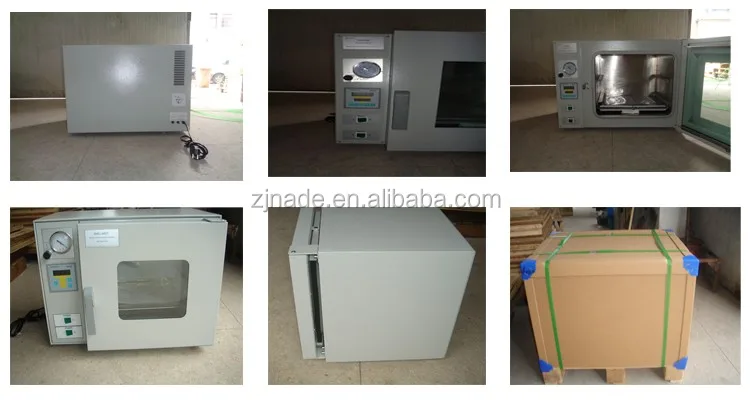

Real photos show

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

Packaging & Shipping

Our Packaging Details:

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

Our Shipping

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

Company Information

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

Our Services

Nade CE Certificate Set type Vacuum Drying Oven and Vacuum Chamber /Furnace DZG-6050K 50L +10-250

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
