Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

  • 1 year
  • Laboratory Thermostatic Devices
  • Nade
  • YBS-DH
  • Zhejiang, China
  • Two boxes (upper and lower)
  • 220V/50Hz
  • Upper: RT +5℃~65℃ Lower: 0℃~60℃
  • 0.1℃
  • ±0.5℃
  • ±1℃(at 37℃)
  • Upper: 435*470*380 Lower: 450*470*500
  • 780*625*1610
  • Upper: 2pcs Lower: 2pcs
  • 1~9999minutes

Product Description

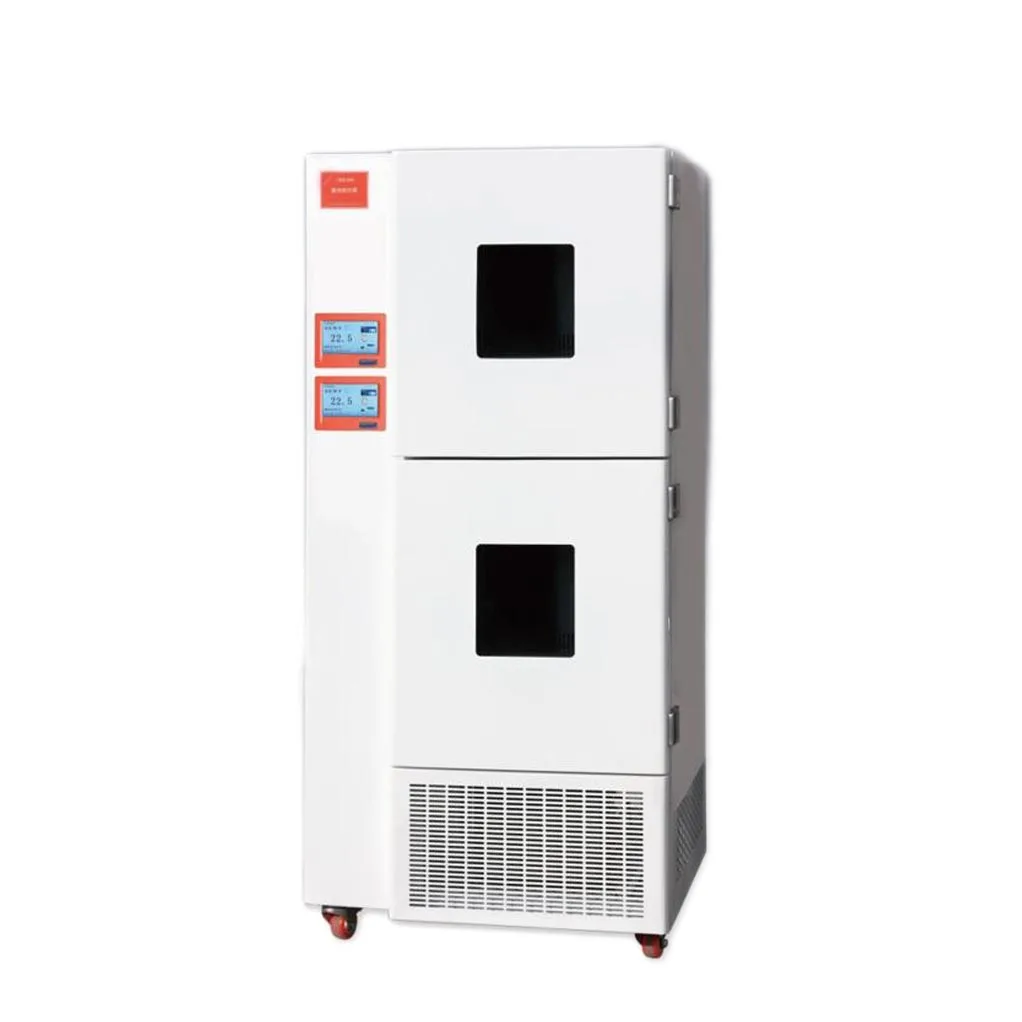

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box

Introduction

The new generation of stacking combination box is widely used in schools, research units, small footprint, space-saving, increase the number of experimental samples, the upper and lower boxes can be used at the same time with different temperature sections, saving experimental time.

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

Features

1. 4.3-inch LCD touch screen controller, multiple groups of data displayed on one screen, menu-style operation page, easy to understand.

2. Using high-quality stainless steel inner tank, four corners and semi-circular arc transition, the shelf bracket can be freely loaded and unloaded, easy to clean.

3. The unique air duct design and circulation fan, ensure the uniform temperature of the working room.

4. Convenient data processing system, which can be connected to a printer (real-time printing), USB interface (data backup), and 485 communication interface (connect to the computer). (Optional)

5. With independent temperature limit control system, will automatically interrupt if upper temperature limit is exceeded, to ensure the safe operation of the experiment. (Optional)

6. The program control (30 segments) can carry out the gradient control of the temperature rise, and the temperature rises slowly from the initial temperature. (Optional)

Specification

Model

YBS-DH

YBS-DHG

YBS-DHP

YBS-GD

Number of boxes

Two boxes (upper and lower)

Voltage

220V/50Hz

Temperature range

Upper: RT +5~65

Lower: 0~60

50~250

RT+5~80

Upper: 50~250

Lower: RT+5~80

Temperature resolution/fluctuation

0.1/±0.5

Temperature uniformity

±1(at 37)

±2.5%(at100)

±1.5%(at 37)

±2.5%(at100)

±1(at37)

Inner dimension

(mm)

Upper: 435*470*380

Lower: 450*470*500

Upper and lower both : 500*465*500

Outline dimension

(mm)

780*625*1610

845*620*1440

Carrier (standard configuration)

Upper: 2pcs

Lower: 2pcs

Timing range

1~9999minutes

Remark

LCD temperature controller, Imported motor and imported thyristor, Programmable temperature printing

Pic

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

Conditions of no-load performance test: ambient temperature: 20, and ambient humidity: 50%RH;

Packaging & Shipping

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

Hot Selling Products

Hot Selling Products..........

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units
Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

Our Services

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

Company Information

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

Nade YBS-DH 4.3-inch LCD touch screen lab space-saving stacking combination box used in schools, research units

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
