Drying Oven
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Drying, burning, sterilizing, aging and similar applications
New
Zhejiang, China
Nade
220V 50HZ
375
660x710x860mm
CE ISO
Long Service Life
1 Year
Online support, Engineers available to service machinery overseas
Online support
Machinery Repair Shops, Energy & Mining
None
None
Ordinary Product
Not Available
Not Available
1 Year
Other
Drying Convectional Oven
Electricity
Stainless Steel 304
140L
55x55x46cm
RT+5~+80
0.1
have
Product Description

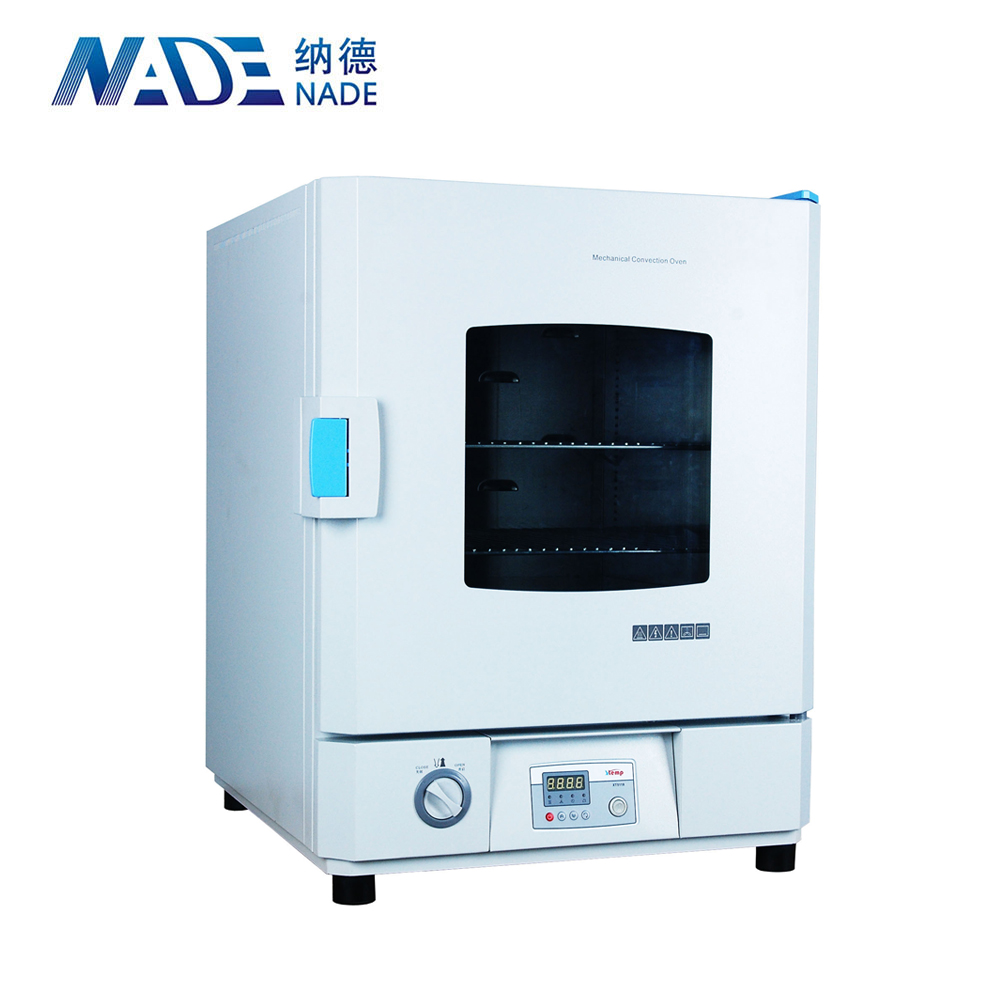

Nade 140L Drying Convenctional Oven XT5116-IN140 Mechanical convection incubator and ovens +5~80C
Function introduction:
Specification:
1.Mechanical convection ovens for Drying, burning, sterilizing, aging and similar applications.
2.Available with capacity of 50L, 70L, 140L, 240L, 420L and 720L for varieties of applications.
3.Precise incubating and hot-air drying, sterilizing in one unit, help to save money and make more space.Micro-processor based temperature controller and zero hysteresis wire heater for stability up to ± 0.1 °C
4.Silent hot conditioned long shaft fan and the unique design of air circulation for uniformity up to ± 1%.
5.Patented ventilator featured with safe and easy access for exhausting of damp and fume, fast cool-down and ultralow intrinsic temperature close to ambient.
6.Replacement for Binder FD, Memmert UF, MMM Stericell, Yamato DF and As One OFX.
| Models | XT5116-IN50 | XT5116-IN70 | XT5116-IN140 | XT5116-IN240 | XT5116-IN420 |
| Effective capacityL | 50 | 70 | 140 | 240 | 420 |
| Temperature range ℃ | RT+5~+80 | RT+5~+80 | RT+5~+80 | RT+5~+80 | RT+5~+80 |
| Temperature stability±℃ | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature uniformity±℃ | 1.0%~1.5% | 1.0%~1.5% | 1.0%~1.5% | 1.0%~1.5% | 1.0%~1.5% |
| Heater wattageW | 240 | 240 | 375 | 500 | 500 |
| Recovery time to DIN 12880 | 35~40min | 32~35min | 35~40min | 25~30min | 22~25min |
| Interior size (WDH)mm | 400×400×320 | 440×400×400 | 550×550×460 | 640×610×610 | 797×634×850 |
| Overall size(WDH) mm | 510×550×698 | 550×550×778 | 660×705×858 | 750×765×1008 | 945×800×1380 |
| Shelves(standard/maximum)EA | 2/3 | 2/4 | 2/5 | 3/7 | 4/8 |
| Observation window | YES | YES | YES | YES | YES |
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
