Zhejiang, China
Nade
CHY-C2A
CHY-2A
0~2 mm (standard)
Thickness Tester
0.1 μm
50 mm2 (film)
17.5±1 KPa (film)
220V
1 Year
Lab Testing
35kgs
Product Description

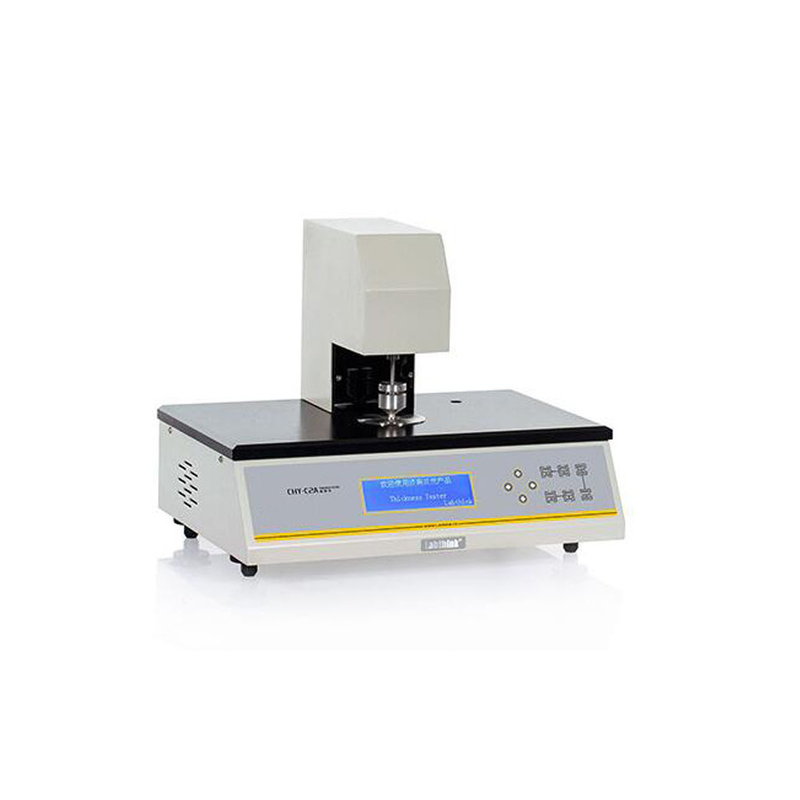

Nade Textile & Fabrics Thickness Gauge Meter CHY-C2A Thickness Measuring Testing Instrument
Standards:
ISO 4593, ISO 534, ISO 3034, ASTM D374,ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702
Features:
Specifications:
| Specifications | CHY-C2A |
| Test Range | 0~2 mm (standard) |
| 0~6 mm, 12 mm (optional) | |
| Resolution | 0.1 μm |
| Test Pressure | 17.5±1 KPa (film) |
| 50±1 KPa (paper) | |
| Contact Area | 50 mm2 (film) |
| 200 mm2 (paper) | |
| Note: Select one presser foot for film or paper; Customization is available | |
| Instrument Dimension | 461 mm (L) x 334 mm (W) x 357 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 32 kg |
Applications:
Basic Applications:
1. Plastic Films, Sheets and Diaphragms
2. Paper and Paper Board
3. Foils and Silicon Wafers
4. Metal Sheets
5. Textiles and Non-woven Fabrics
6. Solid Electrical Insulating Materials
Extended Applications:
1. Extended Test Range of 5mm and 10mm
2. Curved Presser Foot
