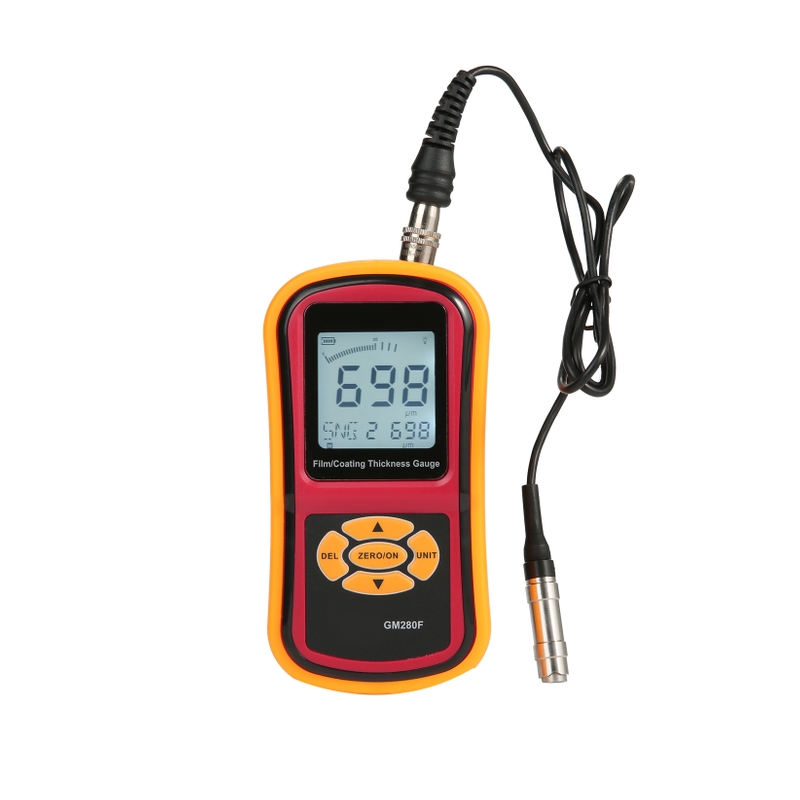

GM280F Film coating thickness gauge

Measurement ranges: 0~1800um
Resolution: 0.1um/1um
Power supply: 3*1.5V AAA alkaline battery
Operation humidity: 10-95%RH
Availability:
  • GM280F
  • NADE
  • 1
  • 1 year
  • China

Introduction


Applying magnetic thickness measuring method and eddy current measuring principle, this unit can quickly and precisely measure the thickness of nonmagnetic coating such as painting or electrodeposition on the iron magnetic substrate, and finds its wide application in the fields of manufacturing,metal processing, chemical industry and commercial inspection.


Features

1.Three calibration methods: zero, two and basic

2.Three measurement methods: single, continuous and deviation
3. Data record, recall and delete function
4.Data analysis: Average, Maximum, Minimum, standard deviation, and measure times
5. Buzzer prompt function
6. Metric / Imperial unit selection
7. Low battery indicator function
8. Automatic shutdown function

9. LCD backlight function
10. Measure non magneric coating on magnetic conductor base material

11. Uses hi- sense of vibration sensor, measuring accurately


Specification


Model

GM220

GM280

GM280F

Measurement ranges

0-1800μm

0-1500μm

0-1800μm

Resolution

0.1um/1μm

0.1um/1μm

0.1um/1μm

Operation temperature

0~40℃

0~40℃

0~40℃

Operation humidity

10-95%RH

10-95%RH

10-95%RH

Overall dimensions

67*30*175mm

72*35*145mm

72*35*145mm

Weight

133g

216.5g

246.1g



Accessories

Digital coating thickness tester main unit*1
Sensor*1
English Instruction Manual*1
Standard sheet*6
Iron base material for calibration*1
PP Packing Box*1
