Nade Glass Bottle Wall Thickness Tester WBT-02 Thickness Gauge Meter

  • 1 year
  • other
  • Zhejiang, China
  • Nade
  • WBT-02
  • Electronic
  • WBT-02
  • Bottle Wall Thickness Tester
  • 0-12.7mm
  • 0.001mm
  • 8-130mm
  • ≤310mm
  • 280*220*500mm
  • about 10kg

Product Description

Product Description

Glass Bottle Wall Thickness Tester WBT-02 used for test wall and bottom thickness of ampoules, vials, infusion bottles, beer bottles, plastic bottles in food, medicine, cosmetics and other industries.

Applications

Basic Application

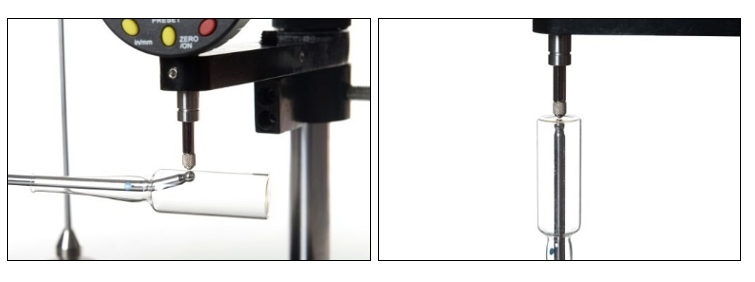

Used to measure the thickness of the bottom and wall of ampoules, vials, oral liquid bottles, infusion bottles, etc.

Used to measure the thickness of the bottom and wall of liquor bottles, wine bottles, etc.

Used to measure the thickness of the bottom and wall of plastic bottles, preforms, etc.

Feature
  • LCD digital display
  • Test the bottom and wall thickness of the bottle in one machine
  • High precision meter, test resolution up to 0.001mm
  • Flexible and measurable large and small sampleNade Glass Bottle Wall Thickness Tester WBT-02 Thickness Gauge Meter
Specification

Item

WBT-02

Thickness Range

0-12.7mm (customizable)

Resolution

0.001mm

Specimen Diameter

8-130mm

Specimen Height

≤310mm

Instrument Dimension

280mm(L)×220mm(W)×500mm(H)

Net Weight

1kg

Standards:QBT 2665,QB 2357,QBT 1868
