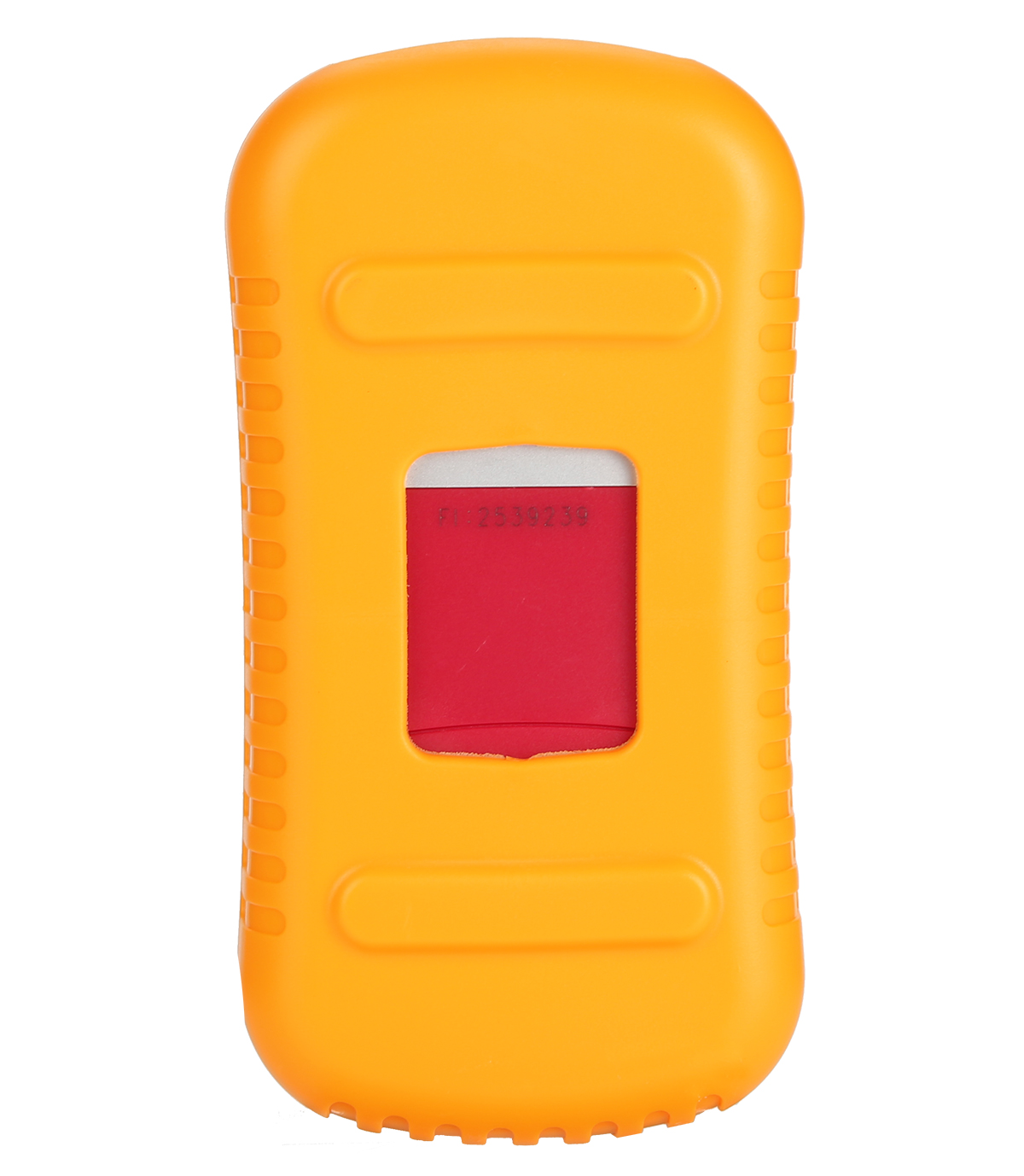

GM130 Ultrasonic Thickness Gauge

Measurement ranges:1.00 to 300.00mm
Working frequency:Working frequency
Lower limit of pipe measurement: Φ15x2.0mm(Φ6mm transducer)
Φ20x3.0mm(Φ10mm transducer)
Availability:
  • GM130
  • NADE
  • 1
  • 1 year
  • China

Product Description

This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware /parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.

Feature

Ultrasonic Thickness Gauge possesses the following features:

1.Upper/lower alarm setting

2.Data storage/deletion

3.Measuring sound velocity,

4.LCD backlight display

5.Low battery reminder

6.Automatic shut-down


Specification


GM100

GM100+

GM130

Measuring range

1.2 to 225.0mm (steel)

1.20 to 300.00mm(steel)

1.00 to 300.00mm(steel)

Working frequency

5MHz

5MHz

5MHz

Lower limit of pipe measurement

Φ20x3mm(steel)

Φ20x3mm(steel)

Φ15x2.0mm(Φ6mm transducer)

Φ20x3.0mm(Φ10mm transducer)

Sound velocity measurement range

1000-9999m/s

1000-9999m/s

1000-9999m/s

Probe (6mm)

NO

NO

YES

Probe (10mm)

YES

YES

YES

Power supply

3*1.5V AAA batteries

3*1.5V AAA batteries

3*1.5V AAA batteries

Weight

202g

202g

223g

Size

72*146*29mm

72*146*29mm

72*29*146mm


Accessories

Ultrasonic Thickness Gauge*1

φ10 Transducer (5KHz)*1

φ6 Transducer (5KHz)*1

Coupling agent (50ml)*1

4mm Sample block*1

1.5V AAA Alkaline battery*3

English Instruction Manual*1

Aluminium Packing Box*1
