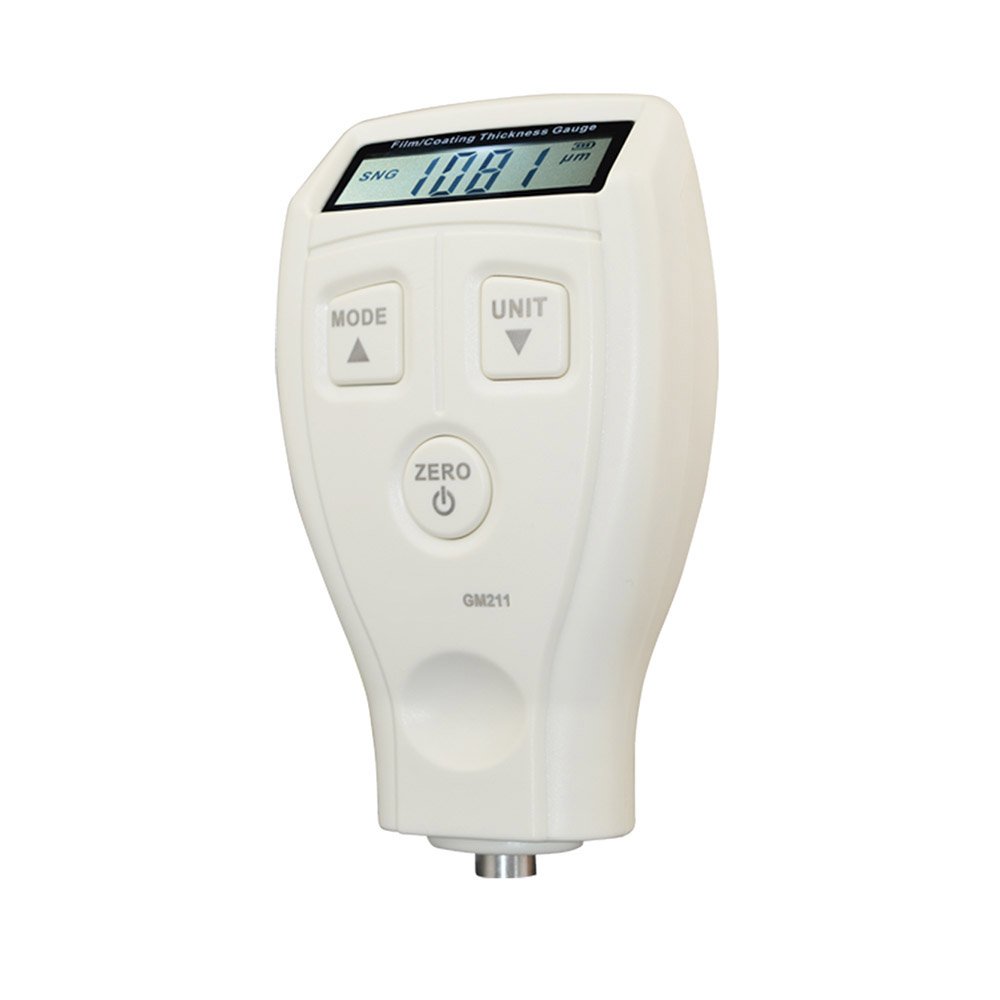

WT211/GM211 Film Coating Thickness Gauge

Measurement ranges:0-1500um/0-59mil/0-1.5mm
Resolution:(0.1um, 1 um)/0.1 mil/0.001 mm
Measurement error:≤150um ±5um >150um ±(3%H+1 um)
Work humidity range:0-95%RH
Availability:
  • WT211/GM211
  • NADE
  • 1
  • 1 year

Product Description

This unit can make a quick and effective measurement of the thickness of the non- magnetic metal film on the nonmagnetic metal substrate and the non magnetic film of the magnetic metal substrate, be able to identify the magnetic or nonmagnetic metal substrate automatically, widely be applied in manufacturing industry, metal process, chemical industry, and business inspection.

Feature

Film/Coating Thickness Gauge possesses the following features:

1.Measuring the non-magnetic film on the magnetic metal substrate.
2.Thickness measurement of non-magnetic surface coatings on magnetic metal substrates.
3.Automatically identifying the non-magnetic metal substrate or magnetic metal substrate.
4.Single measurement, continuous measurement and differential measurement available.
5.Zero-point calibration, 2-point calibration and basic calibration available.
6.Metric and imperial units of measurement optional.
7.LCD backlight.
8.Automatic shutdown.


Specification


WT200A

WT210

WT211

Measurement ranges

0-1.80mm/0-71.0 mil

0-1800µm/0-70.9 mil

0-1500µm/0-59mil/0-1.5mm

Resolution

0.05mm/2mil(Car)

0.01 mm/1 mil(User)

0.1 µm/1 µm/0.1 mil

(0.1 µm, 1 µm)/0.1 mil/0.001 mm

Measurement error

±0.1mm

±(3%H+1µm)

≤150µm ±5µm

>150µm ±(3%H+1 µm)

Min. diameter of substrate

50mm

12mm

12mm(Magnetic)

50mm(Non-magnetic)

Min. thickness of substrate

0.5mm

0.5mm

0.5mm(Magnelic) 50mm(Non-magnetic)

Operating temperature range

18-30℃

0-40℃

0-40℃

Work humidity range

10-80%RH

10-95%RH

10-95%RH

Power supply

2*1.5V AAA battery

2*1.5V AAA battery

2*1.5V AAA battery


Accessories

Host*1
PP box*1
Color box*1
Calibration sheet*6
Iron base*1
Aluminum base*1
Instructions*1

Application

WT200A 210 211-2.jpg
