N-125 Biological Binocular Dual Head Microscope

Eyepiece: Wide Field Eyepiece WF10×,P16 ×
Objective: Achromatic Objective 4×,10×,40×(S),100×(S, Oil)
Nosepiece: Quadruple Nosepiece
Availability:
Inquire

  • N-125

  • NADE

  • 1

  • 1 year

  • China

Product Description

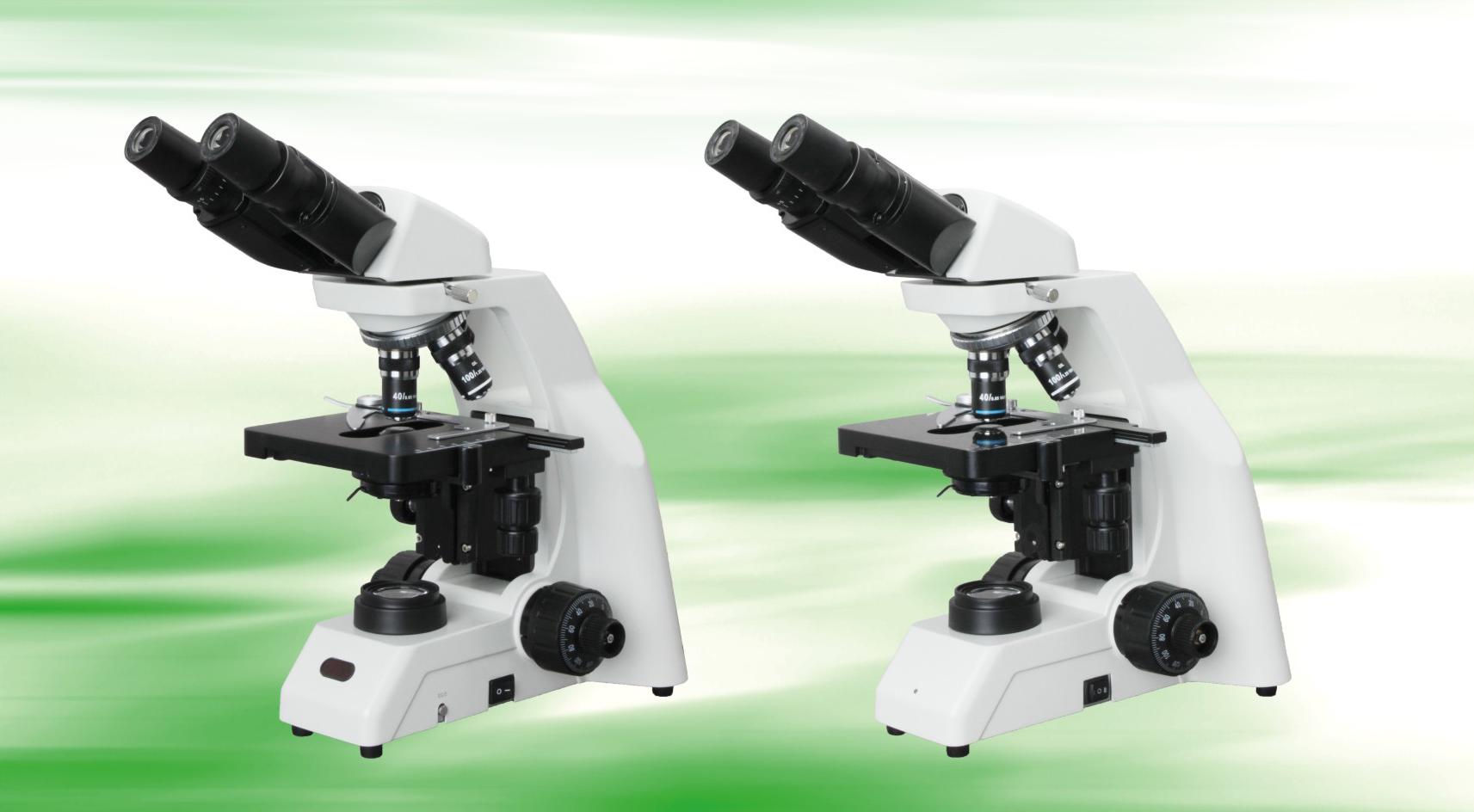

N-125 1

Features:

● Sharp Image Display with Excellent Optical Function.

● Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology. ● Comfortable Operation with Ergonomic Design Principle.

N-125特点1

Higher Contrast and Sharper Image with High Quality Objectives

N-125特点2

With cord rest on the back

N-125特点3

Comfortable Operation with Low Position Coarse and Fine Adjustment Knobs


Specification

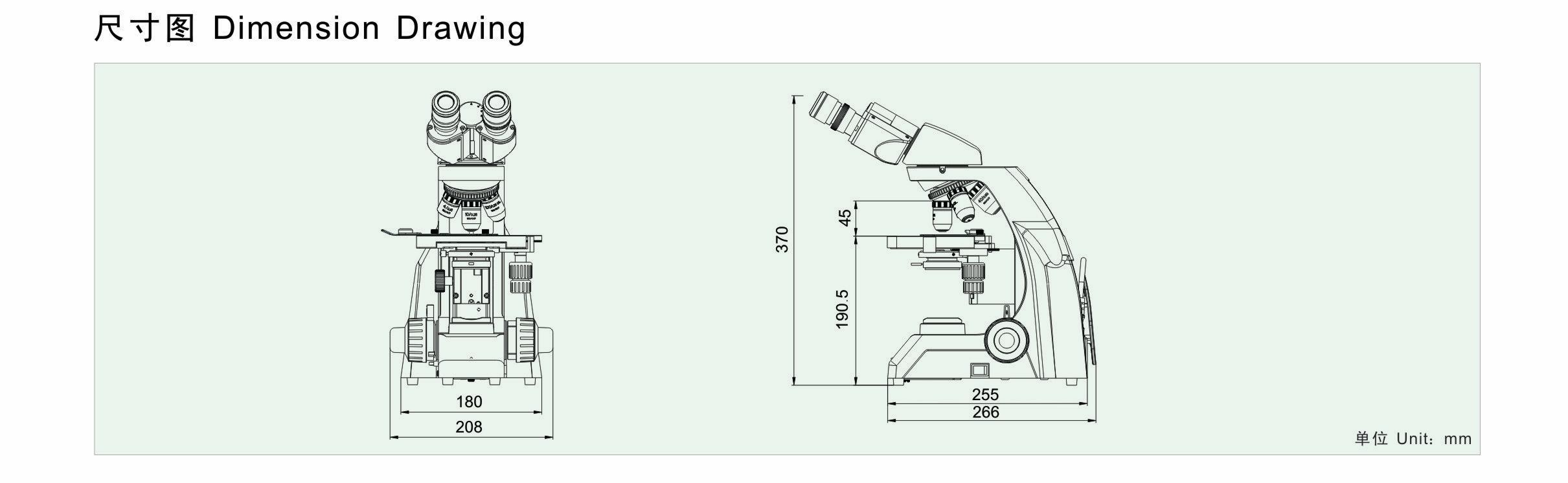

N-125 3
N-125 N-126
Optical System Infinite Optical System
●
Finite Optical System ●
Eyepiece WF10×/18 ●
WF10×/20
●
Viewing Head Monocular Head Inclined at 30° ○
Seidentopf Binocular Viewing Head Inclined at 30。，lnterpupillary47-78mm ● ●
Seidentopf Trinocular Viewing Head Inclined at 30。， lnterpupillary 47-78mm ○ ○
Digital Viewing Head Inclined at 30。， lnterpupillary 47-78mm, 5M pixels, Support Wifi ○ ○
Digital Viewing head Inclined at 30。， lnterpupillary 47-78mm, 5M pixels, 8” LCD, Android OS ○ ○
Achromatic Objective 4×      N. A=0.1    WD=18 ●

10×    N. A=0.25  WD=7

 ●
40×    N. A=0.65  WD=0.53 ●
100×  N. A=1.25  WD=0.13 ●
Infinite Semi-Plan Achromatic Objective 4×      N. A=0.1    WD=16.8
●
10×    N. A=0.25  WD=5.8
●
40×    N. A=0.65  WD=0.43
●
100×  N. A=1.25  WD=0.13
●
Nose piece Backward Quadruple Nosepiece ●
Stage Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm ●
Rackless Double Layers Mechanical Stage 150X139mm, Moving Range 75X52mm
●
Condenser NA 1.25 Abbe Condenser ● ●
Dark Field Condenser (Dry, Oil) ○ ○
Focusing System  Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm ● ●
lllumination Halogen Lamp 6V/20W ○ ○
S LED Illumination ● ●
S-LED Illumination with Recharger ○ ○
Kohler Illumination ○ ○
ECO Function ○ ○
Plane-concave Mirror ○ ○
Fluorescent Attachment Fluorescent Illumination, LED lamp ○ ○
Fluorescent Illumination, 100W HBO lamp ○ ○
Polarization Set
○ ○
Phase Contrast Kit
○ ○

Note: • Standard Outfit, ○ Optional
