Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

  • ph electrode, Plastic Three composite pH electrode

  • China

  • 0-14

  • 0-80°C

  • ceramic

  • Ag/ AgCl

  • Pt100, Pt1000 or thermister

  • 201B-F

Product Description

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

Product Description

Use with automatic temperature compensation pH meter for routine pH measurements. When ordering, be sure the temperature component of the type (Pt100, Pt1000 or thermistor), and plug type. the following circumstances are not suitable . High alkalinity of the measured solution (pH>12).

the solution corrodes the housing.

High temperature (>60°C)while consecutively measuring

Instruction:

Built-in temperature probe, simultaneous measurement of pH and temperature, automatic temperature compensation .

Glass shell; Removable electrode cap , gel without added KCl

Special Note:When used in solution, Resting placement after shaking to eliminate bubble in the electrode cap, otherwise measurements will be unstable

Specification:

Range: 0 to 14pH
Temperature range: 0 to 80°C
Junction: ceramic
Reference electrode: Ag/ AgCl
Dimension: Dia12 x 160mm
Electrode cap size:Dia16
Measuring Element :Pt100, Pt1000 or thermister
Connector:BNC+RCA (Or upon customized request)

Real photos show

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

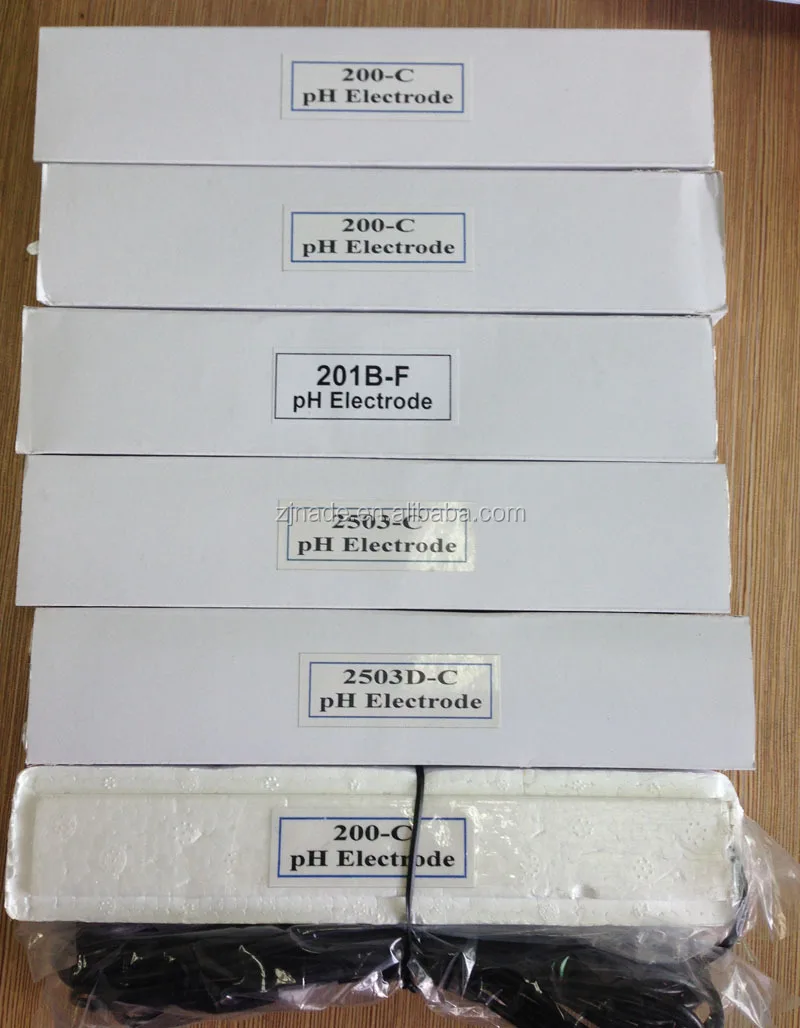

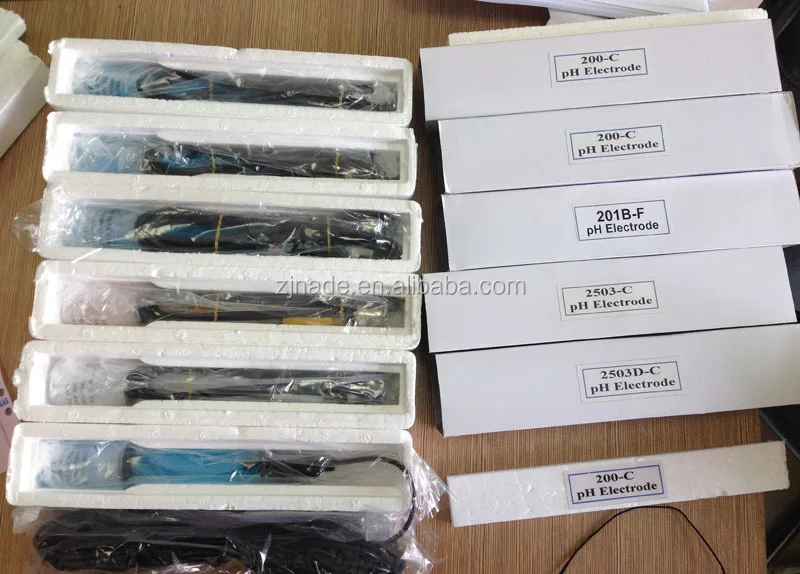

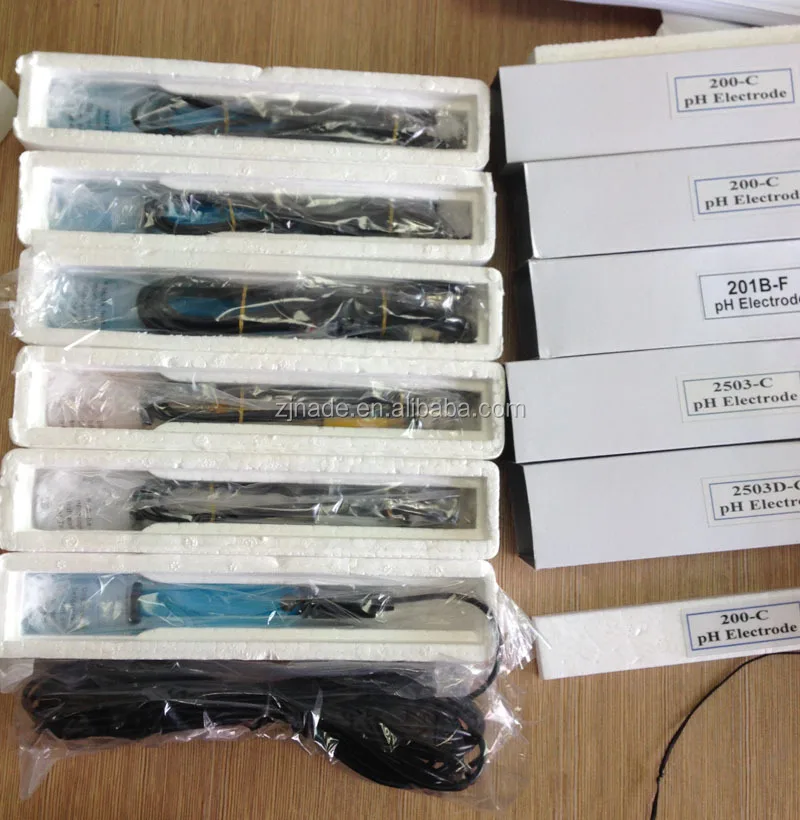

Packaging & Shipping

Our Packaging Details:

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

Our Shipping

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

Company Information

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

Our Services

Nade Lab PH Testing Meter ph meter electrode 201B-F Plastic Three composite pH electrode

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
