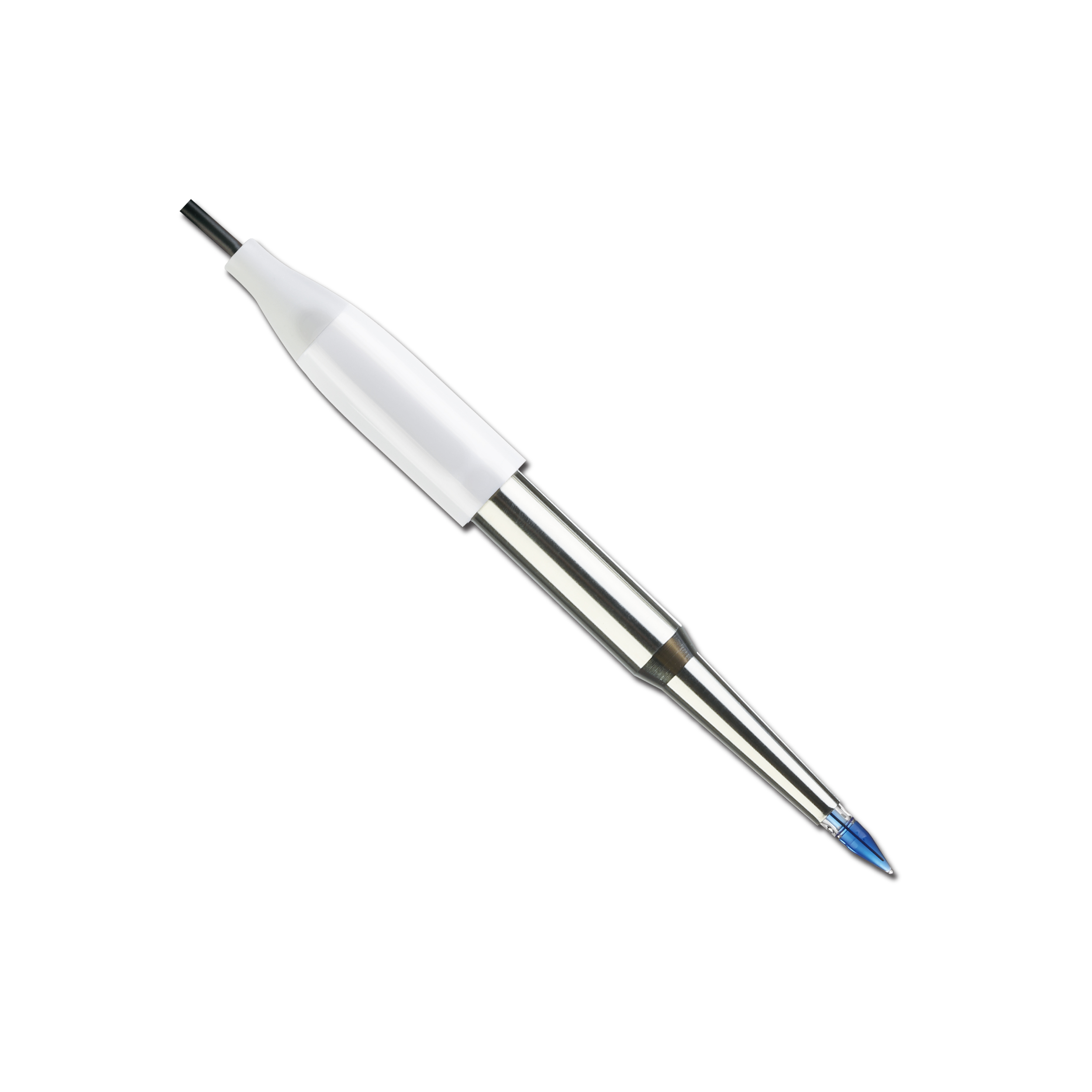

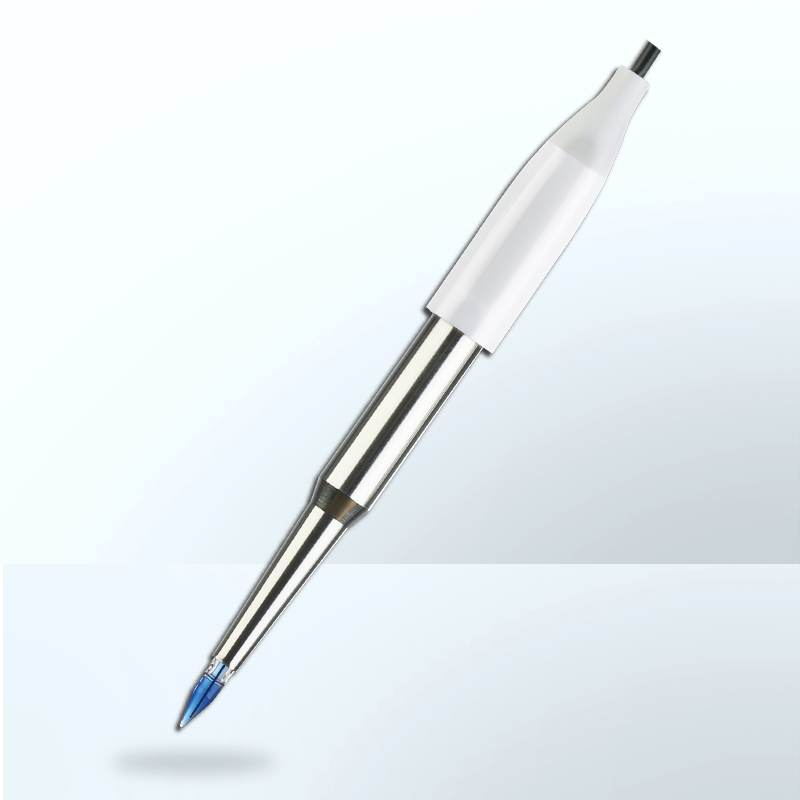

LabSen753 Titanium-body Spear pH/Temp. Electrode

Measuring Range: 0-14 pH
Temperature Range: 0-80°C
Body Material: Food-GradeTitanium
Connector: BNC/RCA
Availability:
  • LabSen753

  • NADE

  • 1

  • OEM

  • half a year

  • China

Product Description

Introductions

LabSen pH electrodes are made with proprietary sensor technologies and key components from Switzerland.

LabSen753 spear pH electrode adopts a spear glass membrane, which can easily pierce
into solid or semi-solid medium. This probe is designed for pH measurement of food samples such as cheeses, meats, sushirice, dough, and fruits.



Features

1. LabSen S-type spear sensor tip featured with high firmness and fast response, designed for direct measurement of solid/semi-solid samples

2. Built-in temperature sensor for automatic temperature compensation (ATC)

3. Food-grade titanium sheath, providing strong protection to the sensor

4. Open & Ceramic double-junction with Polymer electrolyte. No more junction clogs.

5. Long Life reference system improves the stability of the reference system and extends the electrode's service life.

6. Blue gel inner solution - does not flow and will not generate air bubbles.


Specification

Model

LabSen753

Measuring Range

0 – 14 pH

Temperature Range

0 – 80 °C

Body Material

Food-Grade Titanium

Temperature sensor

NTC 30KΩ

Reference

Long Life

Junction

Ceramic + Open

Reference Solution

Polymer

Soaking Solution

3M KCL

Electrode Dimension

Electrode (Φ12×115) mm

Measuring Tip (Φ6×50) mm

Connector

BNC/RCA

Cable

Φ3×1m
