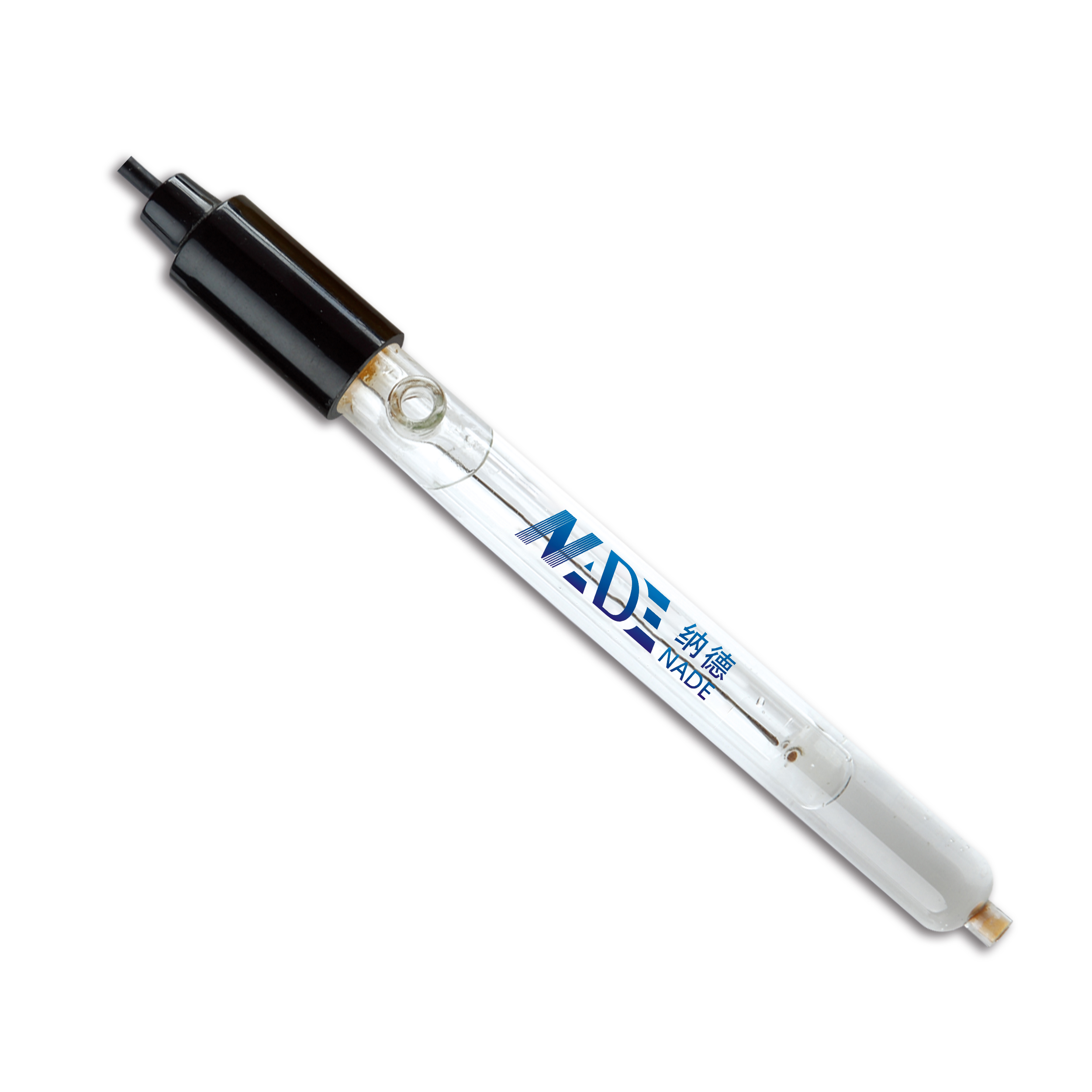

6215 Glass Shell Double Junction Reference Electrode

Reference Solution: The first: 3.5mol/L KCl; the second: User-selectable
Junction: Ceramic Core
Internal Resistance: ≤10 KΩ
Connector: Customized
Availability:
Inquire

  • 6215

  • NADE

  • 5

  • Yes

  • half a year

  • China

Product Description

We provide custom services, just contact us if you need it!!!

reference electrode

6215 Glass Shell Double Junction Reference Electrode

It is a double junction reference electrode. When paired with an appropriate type and concentration of the second salt bridge
solution, it can be used in conjunction with our factory’s MP-500 Series Electrochemical Meters for the determination of ion
content in aqueous solutions. It can also be used independently as a reference electrode.

Specification

Product name

6215 Glass Shell Double Junction Reference Electrode

Reference Solution

The first: 3.5mol/L KCl; the second: User-selectable (Users can select the appropriate type and concentration of electrolyte by themselves based on the properties of the ion being measured. Examples include KNO3, NaNO3, NH4NO3, and Na2SO4.)

Junction

Ceramic core

Connector

Customized

Internal Resistance

≤10 KΩ

Junction Flow Rate

≤0.05 ml/10 min

Reference Electrode

Ag/AgCl
