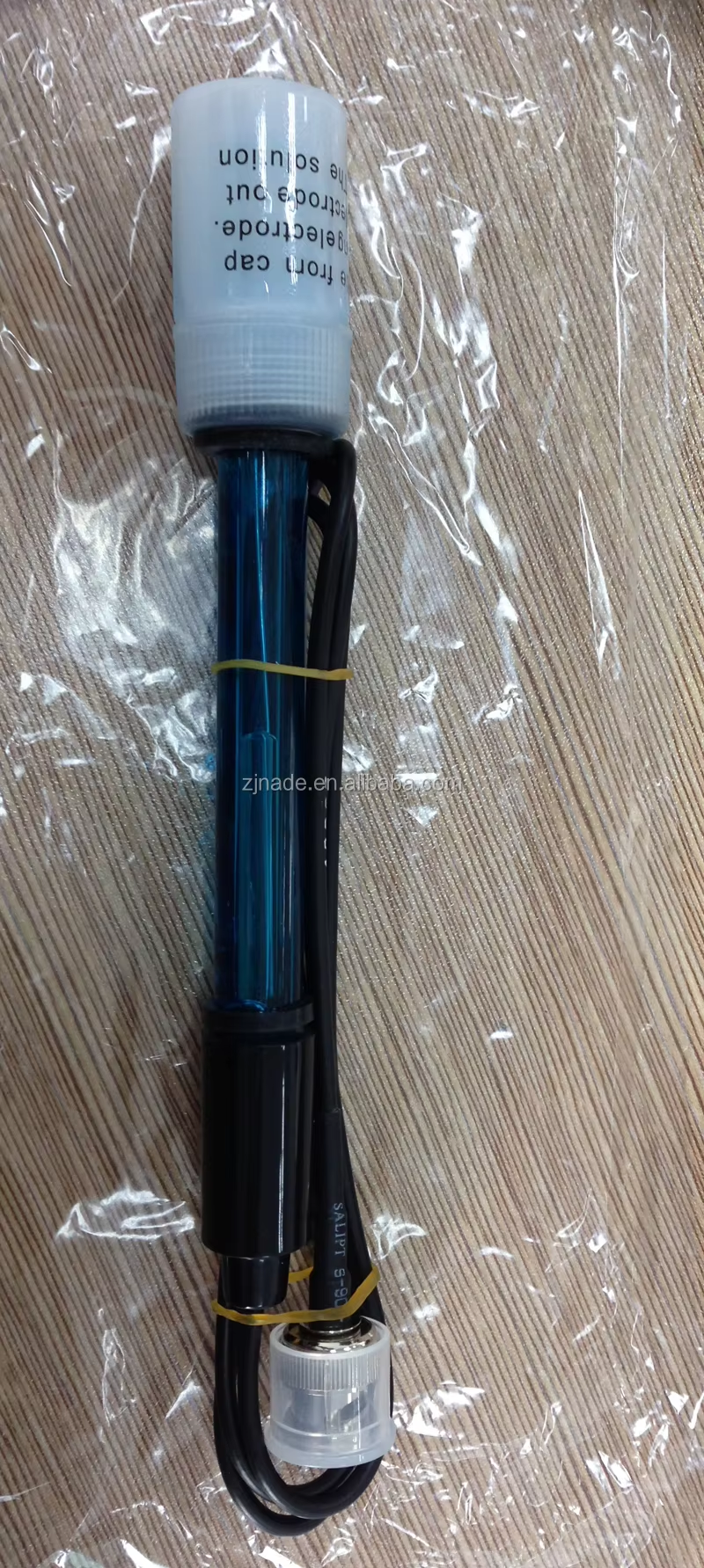

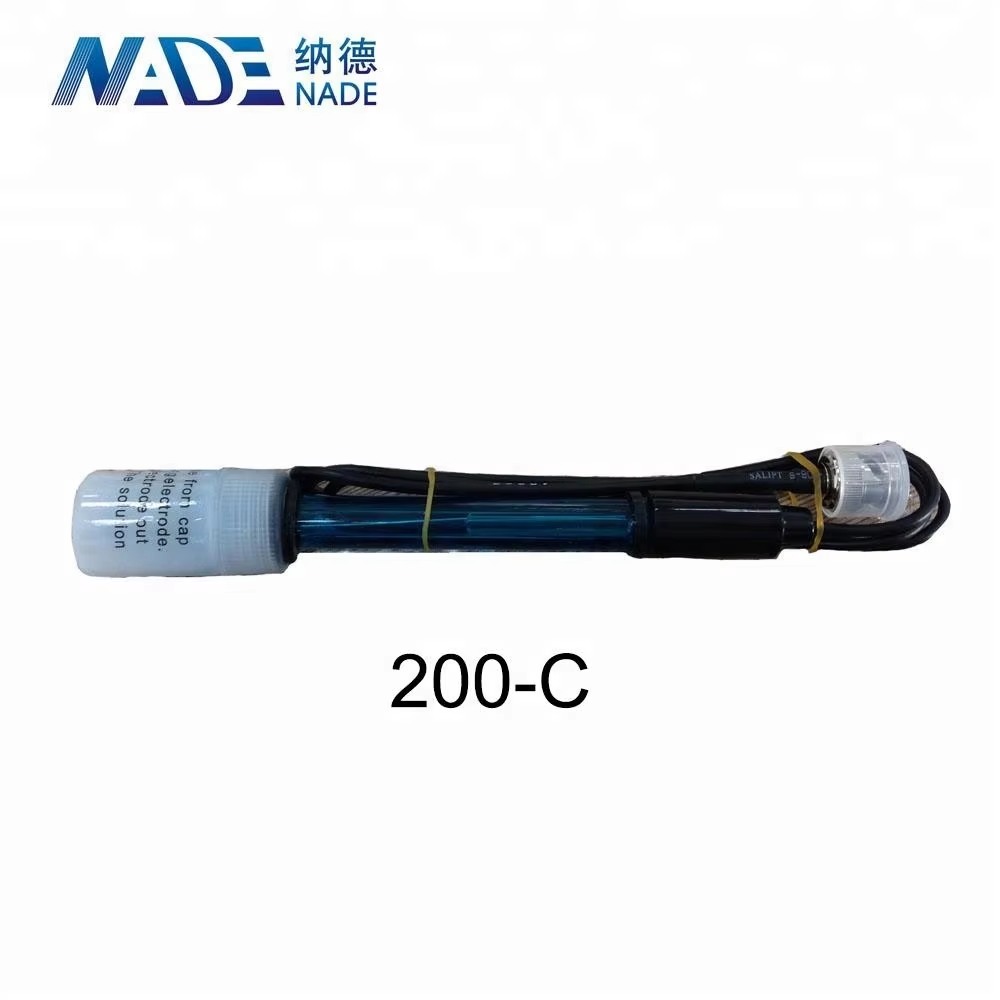

200-C Plastic Shell PH combination electrode

Measuring range: 0 to 14 pH
Temp.Range (°C): 32 to 176°F (0 - 80°C)
Reference electrode: Ag/ AgCl
Junction: Single ceramic
Availability:
Inquire

  • 200-C

  • NADE

  • 5

  • OEM

  • half a year

  • China

Product Description

200-C+logo

200-C Plastic Shell PH combination electrode
Suitable for routine pH measurements. Because KCl solution can be added, so under the conditions of continuous testing, test more accurate than 201-C. the following circumstances are not suitable High alkalinity of the measured solution (pH>12).
the solution corrodes the housing. High temperature (>60°C)while consecutively measuring.


Instruction: Polycarbonate shell; removable electrode cap; gel without added KCl

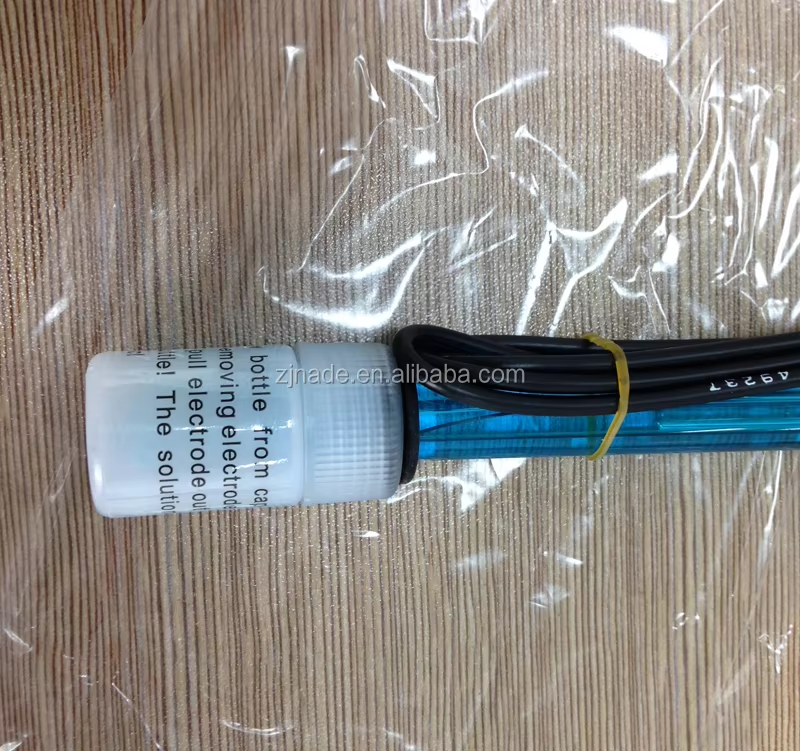

Special Note: When used in solution, Resting placement after shaking to eliminate bubble in the electrode cap, otherwise
measurements will be unstable.

Application

SX751 application

Specification

Model

200-C

Range

0 to 14 pH

Temperature range

0 to 80°C

Junction

ceramic

Reference electrode

Ag/AgCl

Dimension

Dia 12 × 160mm

Connector

BNC

Fill fluid

4mol/L KCl solution (AgCl saturation)

Electrode cap size

Dia 16

If you have customized service needs, please contact our sales!!!
