Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

  • Vacuum Drying Equipment, vacuum Oven

  • 50kg

  • Medicine Processing, Chemicals Processing, Plastics Processing

  • New

  • Zhejiang, China

  • Nade

  • 220v

  • 1600

  • 770x570x1170mm

  • ce

  • Competitive Price

  • 1 Year

  • Online support, Engineers available to service machinery overseas

  • No service

  • Manufacturing Plant, Food & Beverage Factory, Farms

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Other

  • 50L

  • ±2℃ at 100℃

  • Ambient +10-400°C

  • Altitude up to 1500m

  • DZG-6050SB

  • (Platinum gold resistor PT100)

  • Wait on time,wait off time(Max.99hr,Min.1min)

  • Silver

Product Description

Nade Lab Drying Equipment Sign type Vacuum Oven DZG-6050SB +10-400C 50L

Product Description

1.Cuboid chamber maximizes the effective cubage.

2.Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.

3.Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.

4.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.

5.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm, Close By Alarm, Working By Alarm. Timing time is 0-99Hours.

6.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.

7.D Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation.

8.K Models have digital vacuum gauge, vacuum quantity control can be achieved.

9.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)

10.Equipped with the interface of inert gas and flow meter of inert gas. (Option)

Specification

Mode(Stand type)

DZG-6050SA(D)

DZG-6050SA(D)K

DZG-6100(D)

DZG-6100(D)K

DZG-6050SB(D)

DZG-6090(D)

DZG-6090(D)K

DZG-6210(D)

DZG-6210(D)K

Chamber volume (L)

50

90

50

90

210

Environmental condition

Temperature 5~ 40℃

Maximum relative humidity 80%

Altitude up to 1500m

Power

AC220V,50Hz

Range

Ambient

+10-250℃

Ambient

+10-400℃

Ambient +10-250℃

Temperature

Accuracy

±2℃ at 100℃

Fluctuation

±1℃

Controller

PID microprocessor controls, touch type, numeral manifestation

Sensor

Platinum gold resistor PT100

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Internal

304 stainless steels

External

Iron 08F

Dimension(mm)

Internal

415×370×345

450×45450

415×370×345

450×450×450

560×640×600

External

710×510×1110

610×590×1380

770×570×1170

610×590×1380

720×730×1660

Vacuum degree

60Pa

Heating way

Surrounding heating

Shelf heating

Net weight

145KG

170KG

155KG

170KG

230KG

Consumption power

1300W

2120W

1600W

1200W

2100W

Shelve(Supply/most)

2

3

Certifications

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

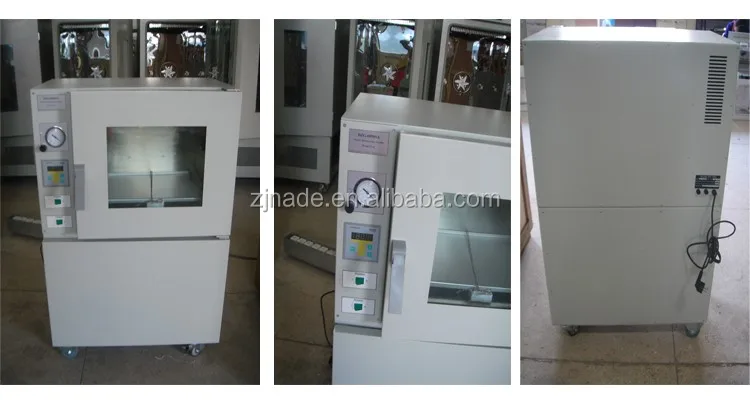

Real photos show

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

Packaging & Shipping

Our Packaging Details:

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

Our Shipping

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

Company Information

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

Our Services

Nade Lab Drying Equipment Vacuum Oven DZG-6050SB +10-400C 50L

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
