Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

  • Vacuum Drying Equipment

  • 30kg

  • Medicine Processing

  • New

  • Zhejiang, China

  • Nade-Drying oven

  • 220V

  • 650

  • 445x450x710mm

  • CE

  • Easy to Operate

  • 1 Year

  • Online support, Video technical support

  • Online support

  • Laboratory

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Engine

  • +10-200 centigrade

  • 30L

  • Temperature 5~30 PT100(Platinum gold resistor PT100)

  • The aplomb forces convection

  • Conventional Oven

  • DGG-9030ADH

  • CE

  • PT100(Platinum gold resistor PT100)

  • have 10 segments programs of temperature-controlling

  • Hot Air Drying Machine

Product Description

Nade Lab Drying Equipment CE Marked Laboratory Equipments Conventional Oven and Drying Oven DGG-9030ADH 30L +10~200C

Product Description

Drying oven Detail:

1.Floor standing type, heating on the bottom, vertical force convection. Adopte imported fan, input and output volume can be adjustable,assure the temperature within the working chamber even.

2.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.

3.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.

4.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.

5.AD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation

6.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)

7.Equipped with the interface of inert gas and flow meter of inert gas. (Option)

Model

9030A

9030AD

9030ADH

9070A

9070AD

9070ADH

9140A

9140AD

9140ADH

9240A

9240AD

9240ADH

9620A

9620AD

9620ADH

Chamber volume(L)

30

70

140

240

620

Environmental condition

Temperature 5~30℃

Maximum relative humidity 80%

Altitude up to 2000m

Method

The aplomb forces convection

Power

AC220V,50Hz

AC380V,50Hz

Range

Ambient temperature +10℃~ 200℃

Temperature

Accuracy

± 1℃ at 100℃

Fluctuation

± 1℃

Uniformity

± 1℃ at 100℃

± 2℃

at 100℃

± 2.5℃ at 100℃

Controller

The PID microprocessor controls, touch type, numeral manifestation

Sensor

Platinum gold resistor PT100

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Internal

304 stainless steels

External

08F

Dimension(mm)

Internal

300×300

×350

400×400

×450

450×550

×550

500×600

×750

800×600

×1300

External

445×450

×710

550×550

×800

640×700

×900

690×730

×1100

970×760

×1750

Net weight

36KG

50KG

71.5KG

90KG

250KG

Consumption power

1050W

1350W

1890W

2500W

5700W

Shelf dimension(mm)

293×275

393×375

443×530

493×580

790×564

Shelve(supply/most)

2/4

2/4

2/4

2/5

3/6

*All the temperature is centigrade

Certifications

Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

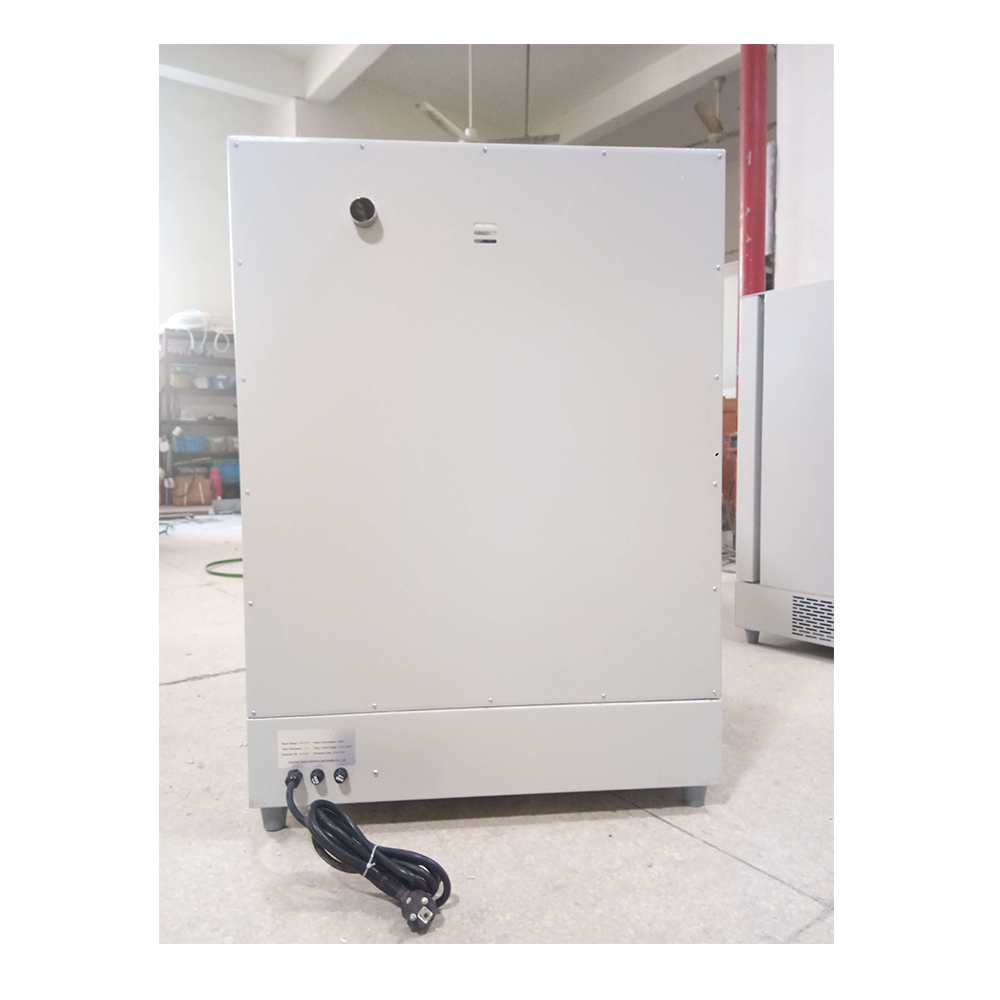

Real photos show

Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

Packaging & Shipping

Our Packaging Details:

Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

Our Shipping

Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

Nade Company Info

Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

Our Services

Nade Lab Drying Equipment CE Marked Conventional Oven and Drying Oven DGG-9030ADH 30L +10-200 C

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
