Vacuum Drying Equipment
90kg
Medicine Processing, Chemicals Processing, Plastics Processing
New
Zhejiang, China
Nade
220v
1200
610x590x1380mm
ce
Long Service Life
1 Year
Online support, Engineers available to service machinery overseas
Online support
Manufacturing Plant, Food & Beverage Factory
None
None
Ordinary Product
Not Available
Not Available
1 Year
Motor
90L
±2℃ at 100℃
Ambient +10-250°C
Platinum gold resistor PT100
Wait on time,wait off time(Max.99hr,Min.1min)
(304 stainless steels)
Digital Vacuum Gauge
Separating the plank type heats
145kgs
Product Description

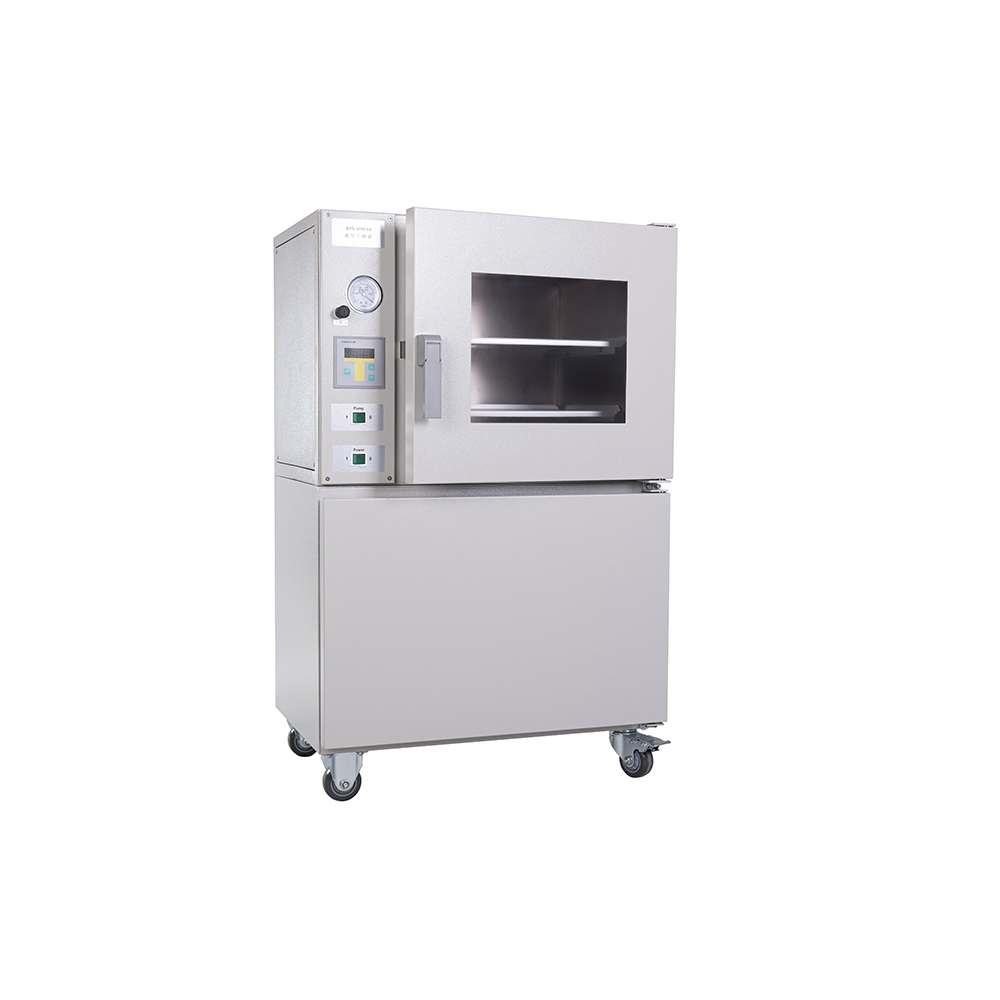

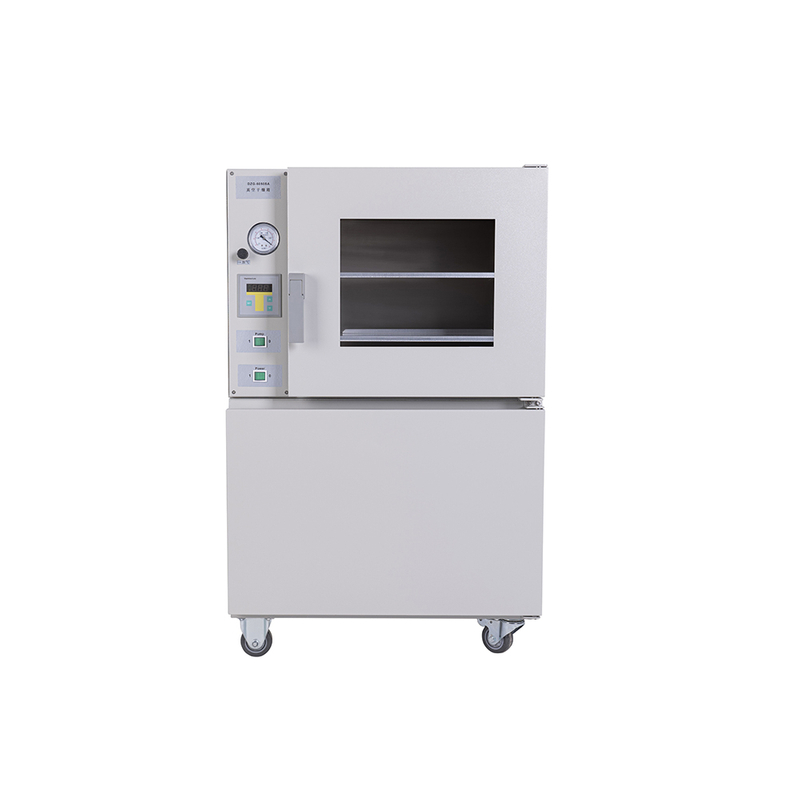

Nade Drying Equipment Lab instruments CE Certificate Sign type Vacuum Oven DZG-6090DK Ambient +10-250 90L
1.Cuboid chamber maximizes the effective cubage.
2.Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.
3.Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.
4.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.
5.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
6.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
7.D Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation.
8.K Models have digital vacuum gauge, vacuum quantity control can be achieved.
9.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
10.Equipped with the interface of inert gas and flow meter of inert gas. (Option)
| Mode(Stand type) | DZG-6050SA(D) DZG-6050SA(D)K | DZG-6100(D) DZG-6100(D)K | DZG-6050SB(D) | DZG-6090(D) DZG-6090(D)K | DZG-6210(D) DZG-6210(D)K | ||
| Chamber volume (L) | 50 | 90 | 50 | 90 | 210 | ||
| Environmental condition | Temperature 5~ 40℃ | ||||||
|
| Maximum relative humidity 80% | ||||||
|
| Altitude up to 1500m | ||||||
| Power | AC220V,50Hz | ||||||
| Range | Ambient +10-250℃ | Ambient +10-400℃ | Ambient +10-250℃ | ||||
| Temperature | Accuracy | ±2℃ at 100℃ | |||||
|
| Fluctuation | ±1℃ | |||||
|
| Controller | PID microprocessor controls, touch type, numeral manifestation | |||||
|
| Sensor | Platinum gold resistor PT100 | |||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||||
| Material | Internal | 304 stainless steels | |||||
|
| External | Iron 08F | |||||
| Dimension(mm) | Internal | 415×370×345 | 450×450×450 | 415×370×345 | 450×450×450 | 560×640×600 | |
|
| External | 710×510×1110 | 610×590×1380 | 770×570×1170 | 610×590×1380 | 720×730×1660 | |
| Vacuum degree | 60Pa | ||||||
| Heating way | Surrounding heating | Shelf heating | |||||
| Net weight | 145KG | 170KG | 155KG | 170KG | 230KG | ||
| Consumption power | 1300W | 2120W | 1600W | 1200W | 2100W | ||
| Shelve(Supply/most) | 2 | 3 | |||||
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
