Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

  • Lab Drying Equipment

  • Nade

  • DGG-9053AD

  • Zhejiang, China

  • 50L

  • +10 to 200C

  • 2/7

  • Lab Drying Equipment

  • DGG-9053AD

  • AD Models have 10 segments programs of temperature-controlling

  • The level forces convection

  • AC110/220V 10% 50/60Hz

  • Digital Display

  • Thermostat Drying Oven

Product Description

Nade Lab Drying Equipment CE Certificated laboratory equipments Table-Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

Product Description

Table-Drying OvenDetail:
1.Table type, heating on the back, horizontal force convection. Adopt imported fan, input and output volume can be adjustable,assure the temperature within the working chamber even.
2. Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic Dual-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
3. Temperature controller adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
4. Temperature controller is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
5. AD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped program operation
6.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
7. Equipped with the interface of inert gas and flow meter of inert gas. (Option)

Model

9023A(AD)

9053A(AD)

9123A(AD)

9203A(AD)

Chamber volume (L)

25

50

105

200

Environmental condition

Temperature 5~30

Maximum relative humidity 80%

Altitude up to 2000m

Method

The level forces convection

Power

AC220V,50Hz

Temp Range

+10~200
Ambient temperature

Temperature

Accuracy

±1 at 100

Pulse degree

±1

Uniformity

±1 at 100

±2 at 100

Controller

(The PID microprocessor controls, touch type, numeral manifestation)

Sensor

PT100(Platinum gold resistor PT100)

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Intenal

(304 stainless steels)

External

08F(Iron 08F)

Dimension(mm)

Intenal

300×300×275

420×350×350

550×350×550

600×550×600

External

580×470×445

710×520×520

830×530×720

880×740×790

Net weight

30KG

43KG

59KG

77KG

Consumption power

600W

740W

1240W

1640W

Shelf dimension(mm)

246×280

366×340

496×340

546×540

Shelve(supply/most)

2/4

2/6

2/12

2/9

*All the temperature is centigrade.

Certifications

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

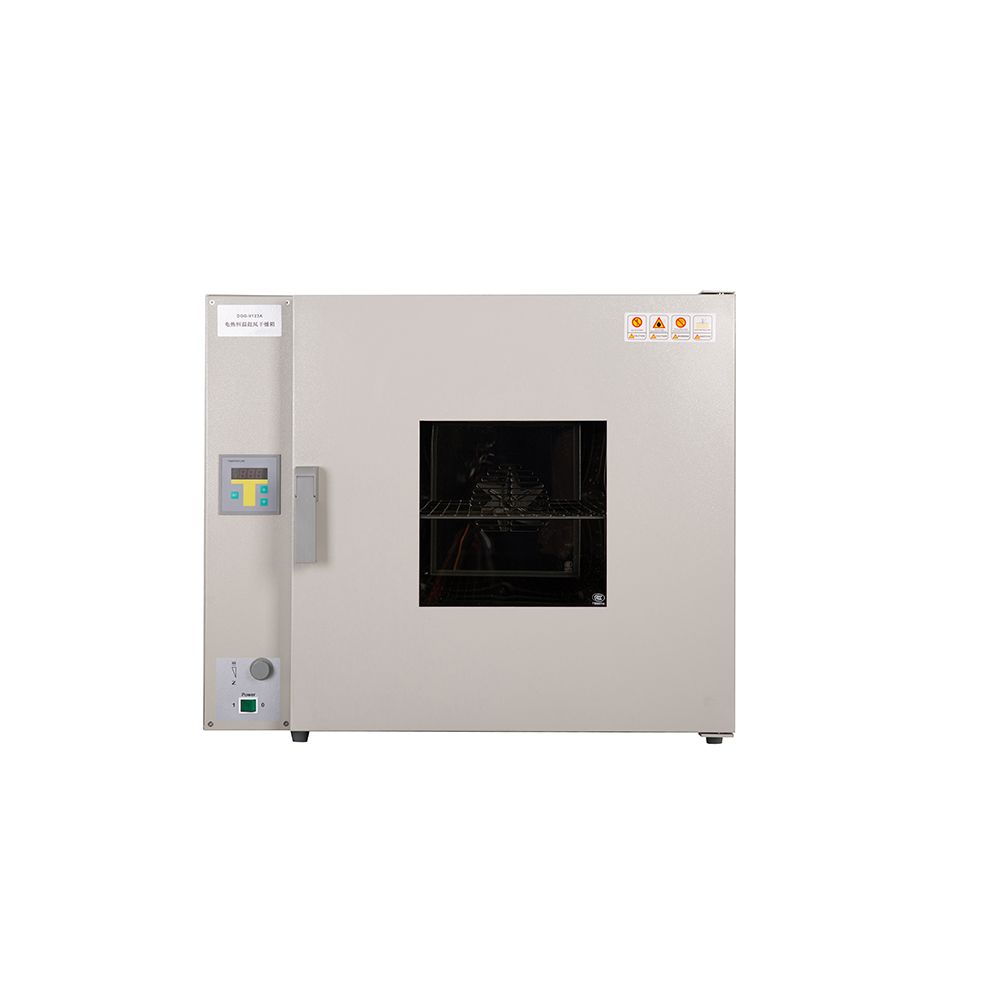

Real photos show

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

Packaging & Shipping

Our Packaging Details:

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

Our Shipping

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

Company Information

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

Our Services

Nade Lab CE Certificated Table Drying and Air Convention Circulation Oven DGG-9053AD 50L +10~200C

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
