Vacuum Drying Equipment, Vacuum electric drying oven
50kg
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
New
Zhejiang, China
Nade
220V
1350
710x510x530
CE
Energy saving
1 Year
Online support, Video technical support, Engineers available to service machinery overseas
Online support
Manufacturing Plant, Food & Beverage Factory, Farms
None
None
Ordinary Product
Provided
Not Available
1 Year
Other
71KG
50L
Maximum relative humidity 80%
Ambient+10-200
Platinum gold resistor PT100
304 stainless steels
60Pa
Separating the plank type heats
Product Description

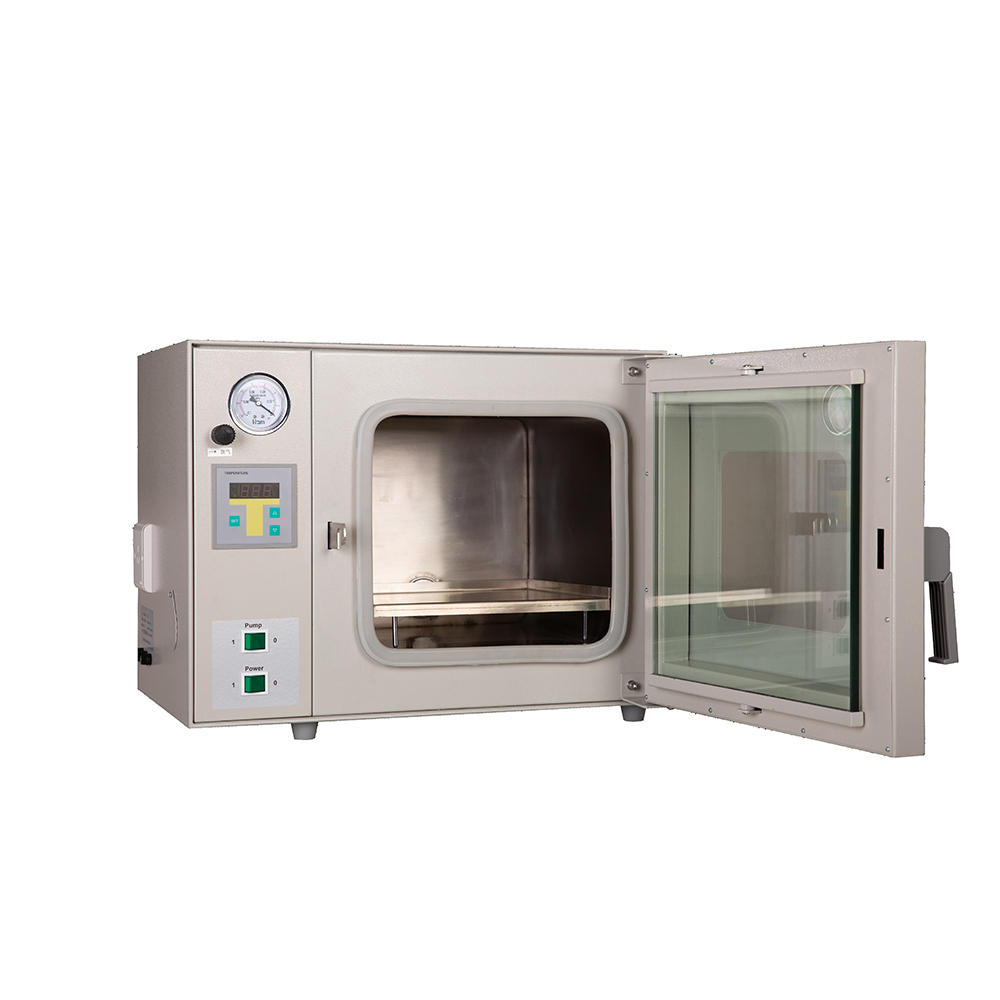

Nade CE Certificate Lab Instrument Set type Vacuum Oven DZG-6050D +10~250C 50L
Vacuume Oven Detail:
1.Remark: 6090,6210 structure
Heaters are installed among every of shelf, every shelf’s temperature can be controlled separately. Heating process is short, temperature rising quickly. Have vacuum pumps, and equipped with vacuum electromagnetism inflated valve.
2. Remark: 6020 structure
The heater is installed among the shelf, heating process is short, temperature rising quickly.
3. Remark: 6050 structure
Adopting the platetype heater to evenly distribute to heat over the outer wall of the chamber
Feature
1.Cuboid chamber maximizes the effective cubage.

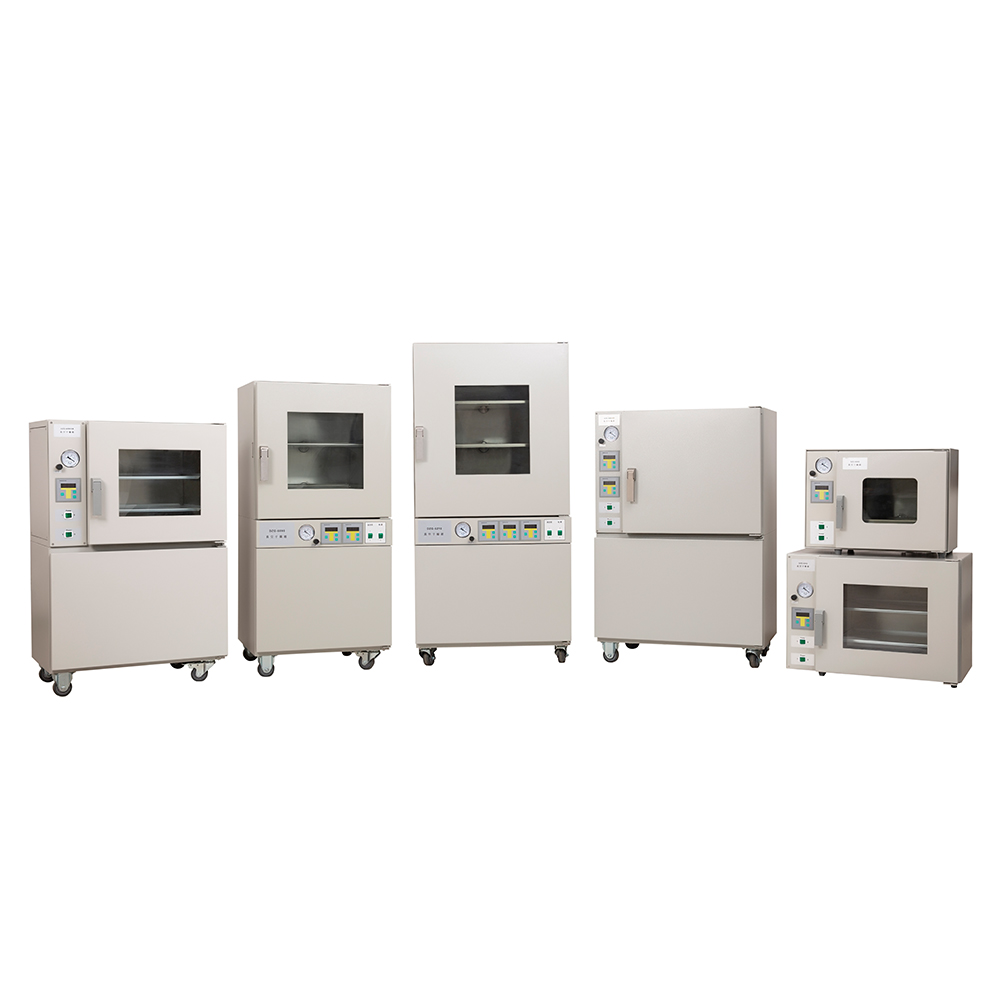

2.stand type vacuum drying oven :Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.
3.Desk type vacuum drying oven:6020,6050 model""s Working chamber is made of stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. With turnplate and light.It is easy and convenient to use. With a beautiful and novel appearance.
4.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.
5.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
6.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
7.D Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation.
8.K Models have digital vacuum gauge, vacuum quantity control can be achieved.
9.Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.
10.Within the floor standing type vacuum oven, there is electromagnetism valve and vacuum pump. It is easy to release pressure.
11.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
12.Equipped with the interface of inert gas and flow meter of inert gas. (Option)
Desk type Specification :
| Mode(Desk type) | 6020(D) | 6050(D) 6050(D)K | |
| Chamber volume (L) | 25 | 50 | |
| Environmental condition | Temperature 5~40℃ | ||
| Maximum relative humidity 80% | |||
| Altitude up to 1500m | |||
| Power | AC220V,50Hz | ||
| Range | Ambient+10-200℃ | Ambient+10-250℃ | |
| Temperature | Accuracy | ±2℃ at 100℃ | |
| Fluctuation | ±1℃ | ||
| Controller | PID microprocessor controls, touch type, numeral manifestation | ||
| Sensor | Platinum gold resistor PT100 | ||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||
| Material | Internal | 304 stainless steels | |
| External | Iron 08F | ||
| Dimension (mm) | Internal | 300×300×275 | 415×370×345 |
| External | 590×420×460 | 710×510×530 | |
| Vacuum degree | 60Pa | ||
| Heating way | Shelf heating | Surrounding heating | |
| Net weight | 33KG | 71KG | |
| Consumption power | 250W | 1300W | |
| Shelve(Supply/most) | 1No | 2No | |
Our Packaging Details:
Our Shipping
Hot Selling Products..........
 |  |  |
 |  |  |
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
