Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

  • Drying Oven, Stand-Drying and Air Circulation Oven

  • Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

  • New

  • Zhejiang, China

  • Nade

  • 220V, 110V/220V

  • 1740

  • 64x70x90cm

  • CE ISO

  • Easy to Operate

  • 1 Year

  • Online support, Video technical support

  • No service

  • Manufacturing Plant, Farms

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Other

  • +10°C - 300°C

  • 140L

  • 2/4

  • Altitude up to 2000m

  • The aplomb forces convection

  • Thermostat Drying Oven

  • heating on the bottom,

  • 100kgs

Product Description

Nade Stand-Drying and Air Circulation Oven DGG-9140B +10~300C 140L

Product Description

Purpose
Provided to industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction,wax-melting and sterilization. Detailed purpose: glassware desiccation, laboratorial sample, food, chemical material’s heat denaturalization, heat induration, heat inteneration, moisture eliminated; biomedical engineering ‘s instruments’ sterilization; electronic component’s torrefaction and aging.


Feature
1.Floor standing type, heating on the bottom, vertical force convection. Adopte imported fan,assure the temperature within the working chamber even.

2.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
3.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
4.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.

5.BD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation

6.BDH Models adopts dual controller structure to achieve multiple protections, safer and more reliable

7.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)

8.Equipped with the interface of inert gas and flow meter of inert gas. (Option)

Specification

Model

9030B
9030BD

9030BDH

9070B
9070BD

9070BDH

9140B
9140BD

9140BDH

9240B
9240BD

9240BDH

9420B
9420BD

9420BDH

9620B
9620BD

9620BDH

Chamber volume(L)

30

70

140

240

430

620

Environmental condition

Temperature 5~30℃

Maximum relative humidity 80%

Altitude up to 2000m

Method

The aplomb forces convection

Power

AC220V,50Hz

AC380V,50Hz

Range

Ambient temperature +10℃~300℃

Temperature

Accuracy

±1℃ at 100℃

Fluctuation

±1℃

Uniformity

±1℃ at 100℃

±2℃
at 100℃

±2.5℃ at 100℃

Controller

The PID microprocessor controls, touch type, numeral manifestation

Sensor

Platinum gold resistor PT100

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Internal

304 stainless steels

External

08F

Dimension(mm)

Internal

300×300

×350

400×400

×450

450×550

×550

500×600

×750

600×550

×1300

800×600

×1300

External

445×450

×710

550×550

×800

640×700

×900

690×730

×1100

770×710

×1750

970×760

×1750

Net weight

36KG

50KG

71.5KG

90KG

183KG

250KG

Consumption power

1050W

1350W

1890W

2500W

4500W

5700W

Shelf dimension(mm)

293×275

393×375

443×530

493×580

590×514

790×564

Shelve(supply/most)

2/4

2/4

2/4

2/5

3/6

3/6

Certifications

Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

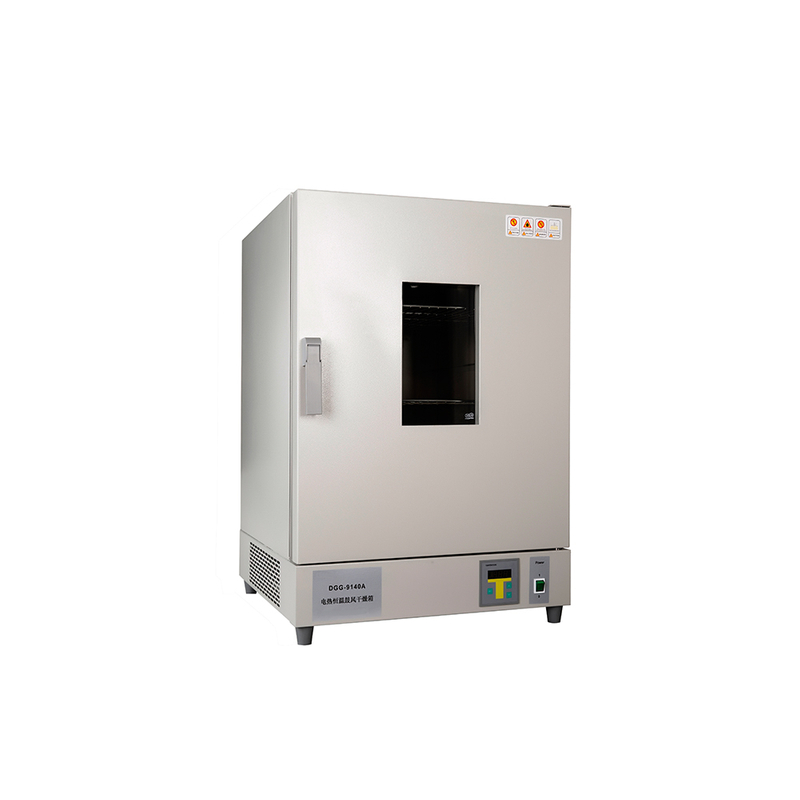

Real photos show

Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

Packaging & Shipping

Our Packaging Details:

Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

Our Shipping

Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

Nade Company Info

Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

Our Services

Nade DGG-9140B 140L +10~300C Lab Stand Drying and hot air circulating oven

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
