Lab Drying Equipment
Nade
DGG-9053A
Zhejiang, China
50L
+10 to 200c
±1 at 100c
The level forces convection
(The PID microprocessor controls, touch type, numeral manifestation)
Drying Oven
DGG-9053A
CE
AC110/220V 10% 50/60Hz
Vacuum Dry Oven
Product Description
Nade Lab Drying EquipmenCe Certificated OEM laboratory instruments Table-Drying and Air Circulation Oven & Oven Drying DGG-9053A +10~200c 50L

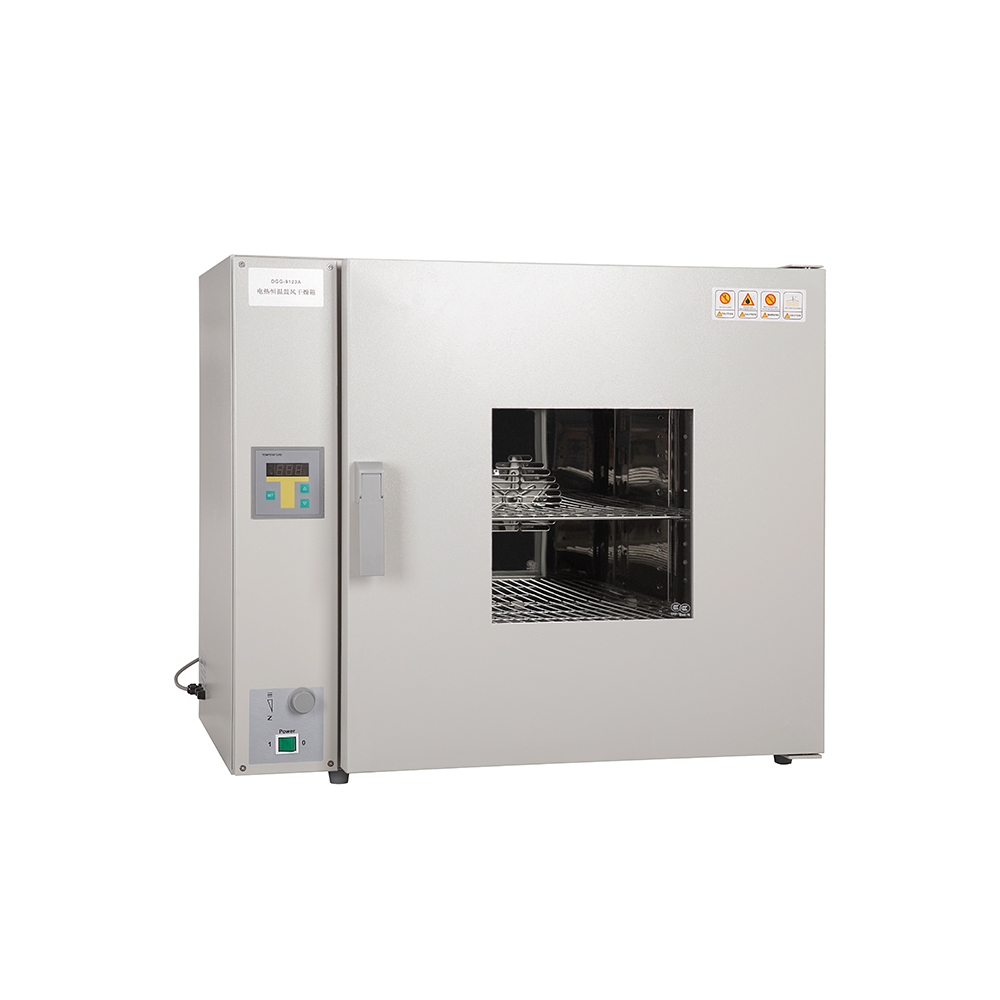

Table-Drying OvenDetail:
1.Table type, heating on the back, horizontal force convection. Adopt imported fan, input and output volume can be adjustable,assure the temperature within the working chamber even.
2. Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic Dual-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
3. Temperature controller adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
4. Temperature controller is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
5. AD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped program operation
6.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
7. Equipped with the interface of inert gas and flow meter of inert gas. (Option)
| Model | 9023A(AD) | 9053A(AD) | 9123A(AD) | 9203A(AD) | |
| Chamber volume (L) | 25 | 50 | 105 | 200 | |
| Environmental condition | Temperature 5~30 | ||||
| Maximum relative humidity 80% | |||||
| Altitude up to 2000m | |||||
| Method | The level forces convection | ||||
| Power | AC220V,50Hz | ||||
| Temp Range | +10~200 | ||||
| Temperature | Accuracy | ±1 at 100 | |||
| Pulse degree | ±1 | ||||
| Uniformity | ±1 at 100 | ±2 at 100 | |||
| Controller | (The PID microprocessor controls, touch type, numeral manifestation) | ||||
| Sensor | PT100(Platinum gold resistor PT100) | ||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||
| Material | Intenal | (304 stainless steels) | |||
| External | 08F(Iron 08F) | ||||
| Dimension(mm) | Intenal | 300×300×275 | 420×350×350 | 550×350×550 | 600×550×600 |
| External | 580×470×445 | 710×520×520 | 830×530×720 | 880×740×790 | |
| Net weight | 30KG | 43KG | 59KG | 77KG | |
| Consumption power | 600W | 740W | 1240W | 1640W | |
| Shelf dimension(mm) | 246×280 | 366×340 | 496×340 | 546×540 | |
| Shelve(supply/most) | 2/4 | 2/6 | 2/12 | 2/9 | |
*All the temperature is centigrate

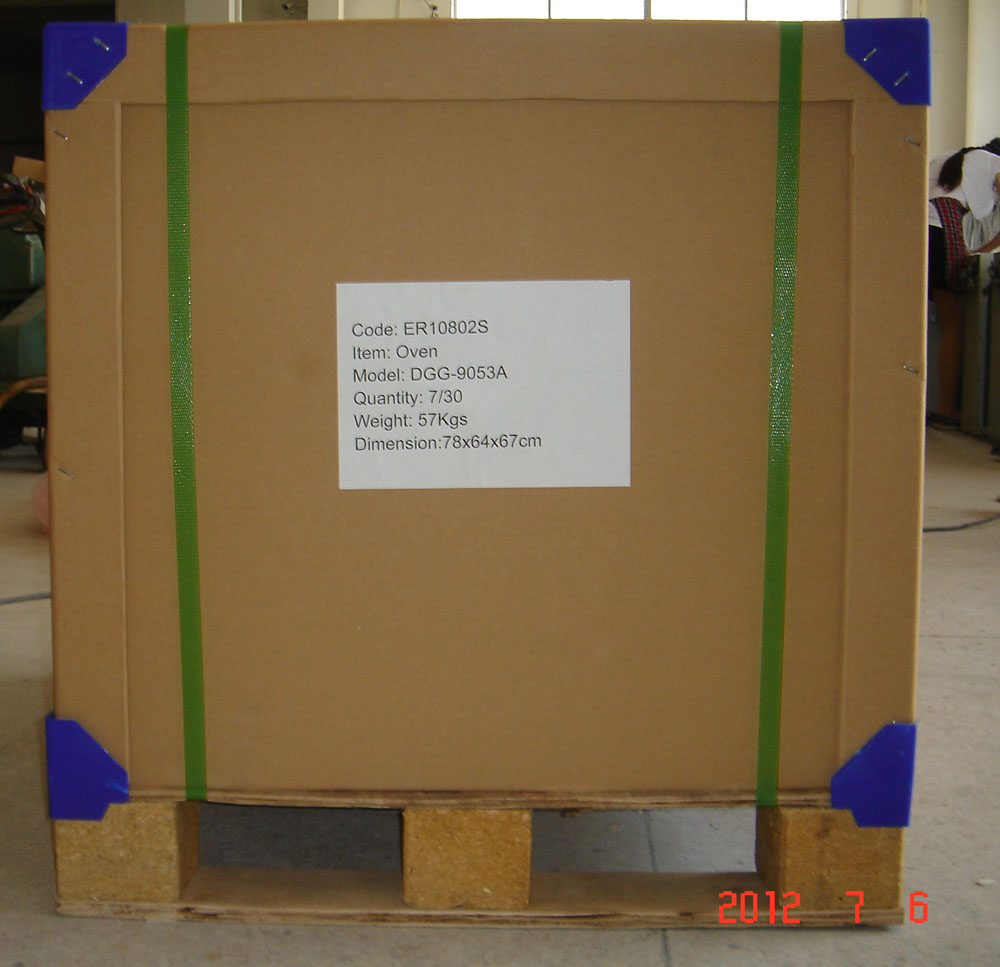

Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
