Vacuum Drying Equipment
240kg
Medicine Processing, Chemicals Processing
New
Zhejiang, China
Nade-Drying oven
220V
2500
690x730 x1100
CE
Easy to Operate
1 Year
Online support, Video technical support
Online support
Laboratory
None
None
Hot Product 2019
Provided
Not Available
1 Year
Other
100kg
+10-200 centigrade
240L
Temperature 5~30 PT100(Platinum gold resistor PT100)
The aplomb forces convection
Conventional Oven
CE
PT100(Platinum gold resistor PT100)
have 10 segments programs of temperature-controlling
Hot Air Drying Machine
Product Description

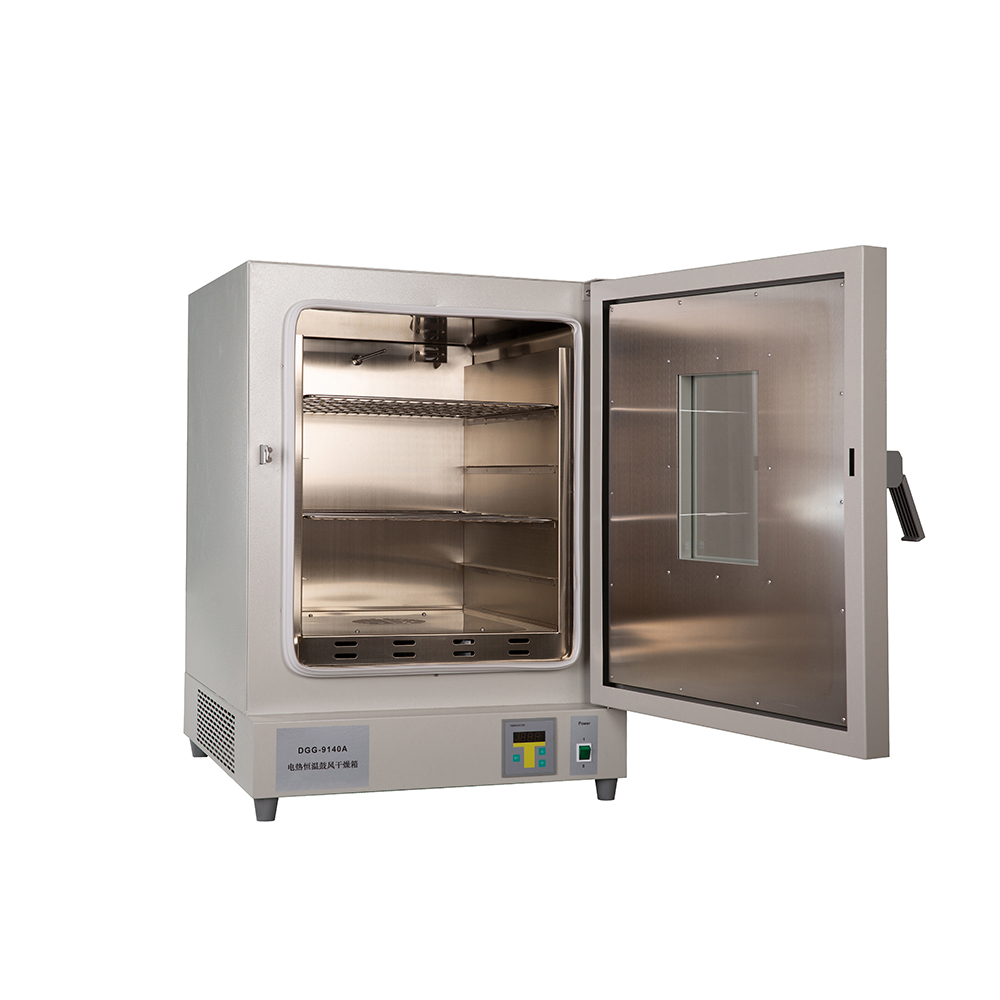

Nade Lab Drying Equipment CE Marked Laboratory Equipments Conventional Oven and Drying Oven DGG-9240ADH 240L +10~200C
Drying oven Detail:
1.Floor standing type,heating on the bottom,vertical force convection. Adopt imported fan,input and output volume can be adjustable,assure the temperature within the working chamber even.
2.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate,surface processing with static spraying plastic.Dual-layer toughened glass observation window. The shelf is made of stainless steel,and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
3.Temperature controller adopt high speed,high performance CPU handling chip. High sensitive,high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”,“ Close By Alarm”,“Working By Alarm”. Timing time is 0-99Hours.
4.Temperature controller is with sensor malfunction alarm,low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
5.AD Models have 10 segments programs of temperature-controlling,realize temperature’s stepped programme operation
6.ADH Models adopts dual controller structure to achieve multiple protections, safer and more reliable
7.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
8.Equipped with the interface of inert gas and flow meter of inert gas. (Option)
| Model | 9030A 9030AD 9030ADH | 9070A 9070AD 9070ADH | 9140A 9140AD 9140ADH | 9240A 9240AD 9240ADH | 9620A 9620AD 9620ADH | |
| Chamber volume(L) | 30 | 70 | 140 | 240 | 620 | |
| Environmental condition | Temperature 5~30℃ | |||||
| Maximum relative humidity 80% | ||||||
| Altitude up to 2000m | ||||||
| Method | The aplomb forces convection | |||||
| Power | AC220V,50Hz | AC380V,50Hz | ||||
| Range | Ambient temperature +10℃~ 200℃ | |||||
| Temperature | Accuracy | ± 1℃ at 100℃ | ||||
| Fluctuation | ± 1℃ | |||||
| Uniformity | ± 1℃ at 100℃ | ± 2℃ at 100℃ | ± 2.5℃ at 100℃ | |||
| Controller | The PID microprocessor controls, touch type, numeral manifestation | |||||
| Sensor | Platinum gold resistor PT100 | |||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | |||||
| Material | Internal | 304 stainless steels | ||||
| External | 08F | |||||
| Dimension(mm) | Internal | 300x300 x350 | 400x400 x450 | 450x550 x550 | 500x600 x750 | 800x600 x1300 |
| External | 445x450 x710 | 550x550 x800 | 640x700 x900 | 690x730 x1100 | 970x760 x1750 | |
| Net weight | 36KG | 50KG | 71.5KG | 90KG | 250KG | |
| Consumption power | 1050W | 1350W | 1890W | 2500W | 5700W | |
| Shelf dimension(mm) | 293x275 | 393x375 | 443x530 | 493x580 | 790x564 | |
| Shelve(supply/most) | 2/4 | 2/4 | 2/4 | 2/5 | 3/6 | |
*All the temperature is centigrade
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
