Vacuum Drying Equipment, Air Circulation Oven
140kg
Medicine Processing, Chemicals Processing, Plastics Processing
New
Zhejiang, China
Nade-Drying oven
220v
1740
640x700x900mm
CE
Long Service Life
1 Year
Online support, Video technical support, Engineers available to service machinery overseas
Online support
Manufacturing Plant, Food & Beverage Factory, Farms
None
None
Ordinary Product
Provided
Not Available
1 Year
Other
72.5kg
+10°C - 300°C
140L
2/5
Altitude up to 2000m
Wait on time,wait off time(Max.99hr,Min.1min)
The aplomb forces convection
1740W
Product Description

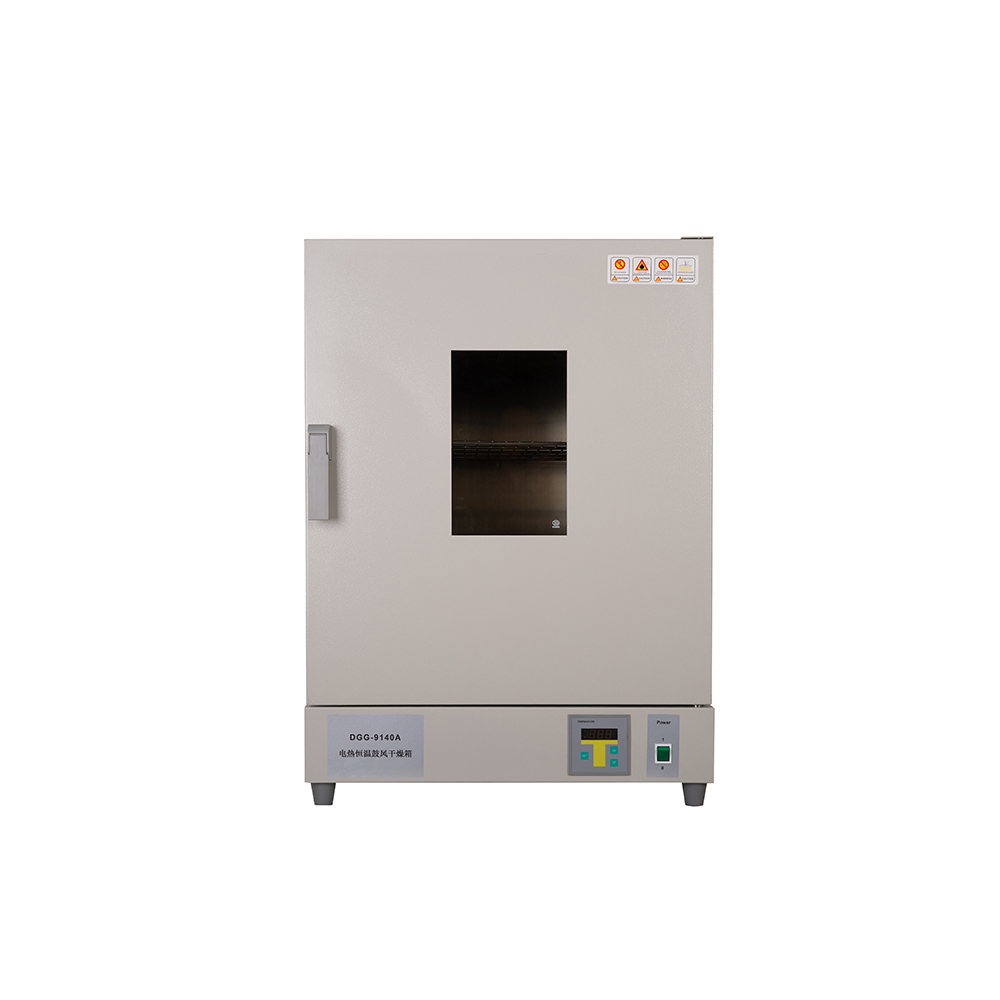

Nade CE Certificate laboratory instruments Stand-Drying and Air Convention Oven DGG-9140BD +10~300C 140L
1.Floor standing type, heating on the bottom, vertical force convection. Adopte imported fan,assure the temperature within the working chamber even.

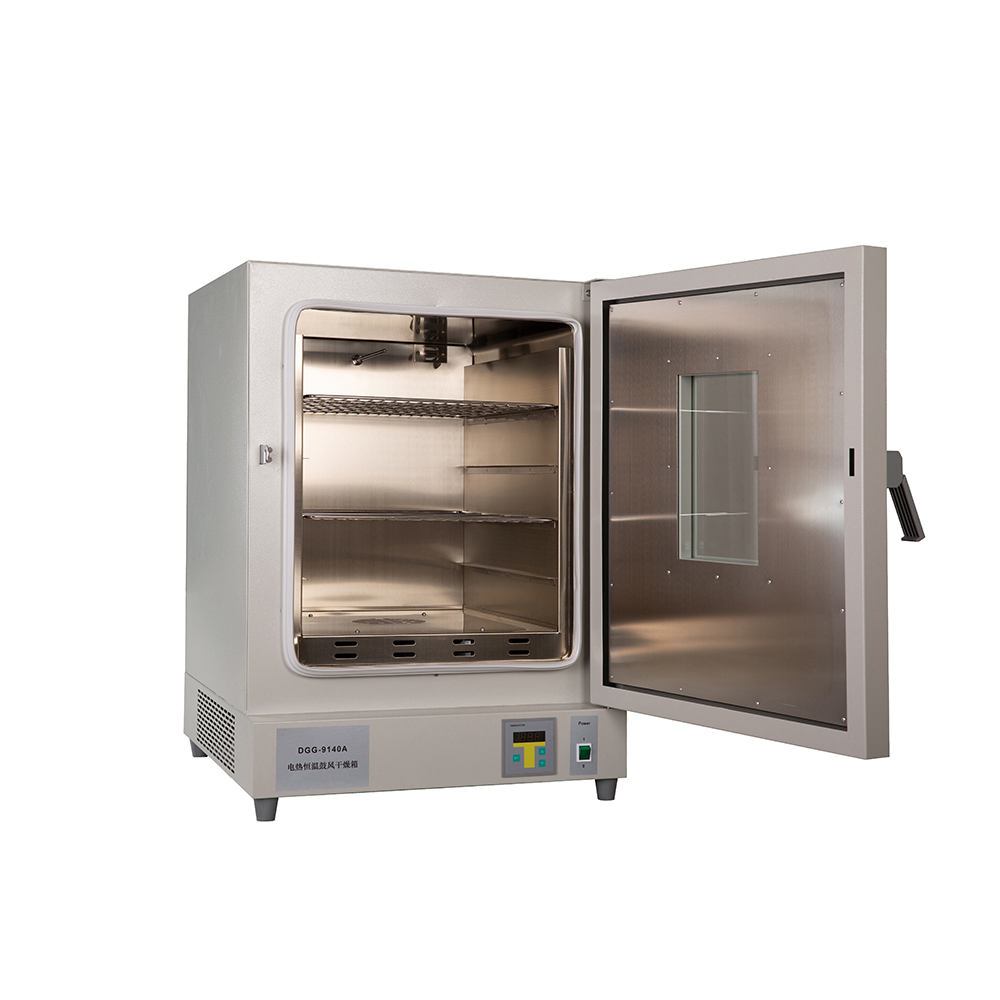

2.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Three-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
3.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
4.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
5.BD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation
6.BDH Models adopts dual controller structure to achieve multiple protections, safer and more reliable
7.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
8.Equipped with the interface of inert gas and flow meter of inert gas. (Option)
Specification:

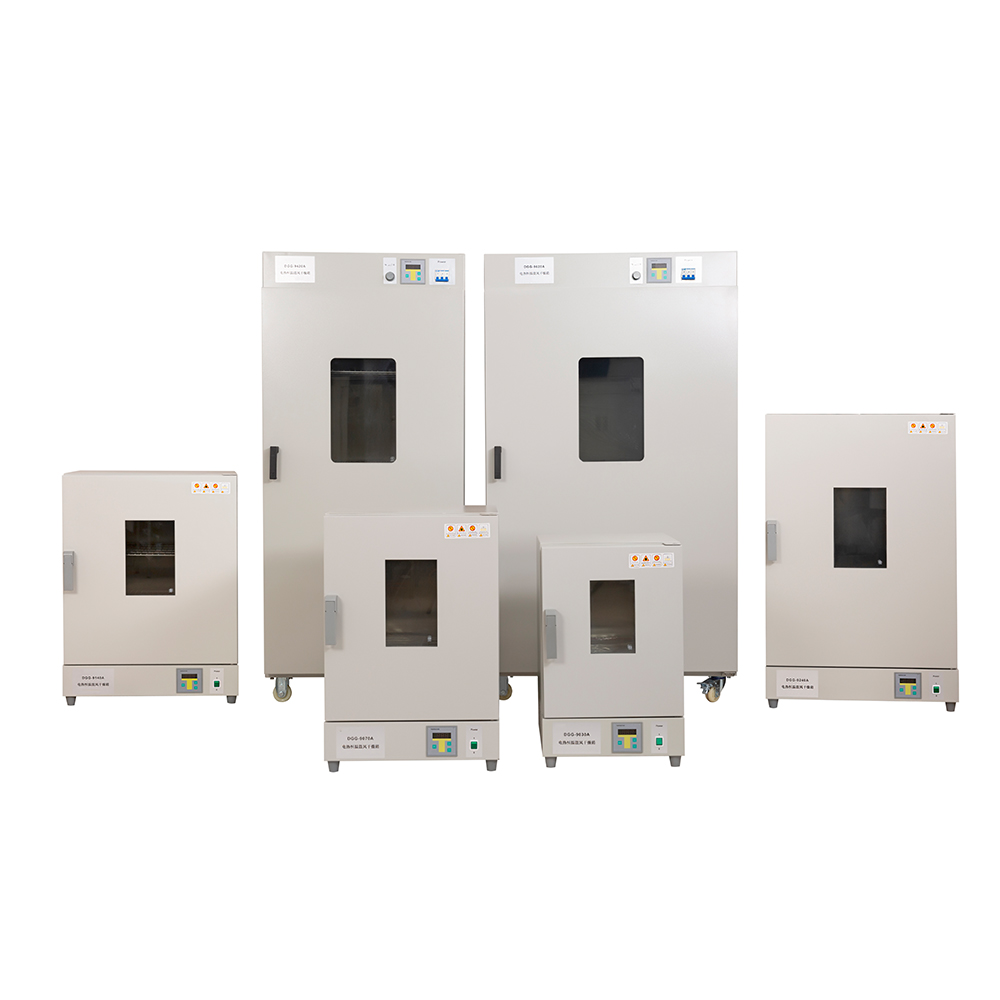

| Model | 9030B 9030BDH | 9070B 9070BDH | 9140B 9140BDH | 9240B 9240BDH | 9420B 9420BDH | 9620B 9620BDH | |
| Chamber volume(L) | 30 | 70 | 140 | 240 | 430 | 620 | |
| Environmental condition | Temperature 5~30℃ | ||||||
| Maximum relative humidity 80% | |||||||
| Altitude up to 2000m | |||||||
| Method | The aplomb forces convection | ||||||
| Power | AC220V,50Hz | AC380V,50Hz | |||||
| Range | Ambient temperature +10℃~300℃ | ||||||
| Temperature | Accuracy | ±1℃ at 100℃ | |||||
| Fluctuation | ±1℃ | ||||||
| Uniformity | ±1℃ at 100℃ | ±2℃ | ±2.5℃ at 100℃ | ||||
| Controller | The PID microprocessor controls, touch type, numeral manifestation | ||||||
| Sensor | Platinum gold resistor PT100 | ||||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||||
| Material | Internal | 304 stainless steels | |||||
| External | 08F | ||||||
| Dimension(mm) | Internal | 300×300 ×350 | 400×400 ×450 | 450×550 ×550 | 500×600 ×750 | 600×550 ×1300 | 800×600 ×1300 |
| External | 445×450 ×710 | 550×550 ×800 | 640×700 ×900 | 690×730 ×1100 | 770×710 ×1750 | 970×760 ×1750 | |
| Net weight | 36KG | 50KG | 71.5KG | 90KG | 183KG | 250KG | |
| Consumption power | 1050W | 1350W | 1890W | 2500W | 4500W | 5700W | |
| Shelf dimension(mm) | 293×275 | 393×375 | 443×530 | 493×580 | 590×514 | 790×564 | |
| Shelve(supply/most) | 2/4 | 2/4 | 2/4 | 2/5 | 3/6 | 3/6 | |
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
