Vacuum Drying Equipment
30kg
Medicine Processing, Chemicals Processing, Plastics Processing
New
Zhejiang, China
Nade-Drying oven
220V
650
445x450x710mm
CE
Automatic
1 Year
Online support, Video technical support, Engineers available to service machinery overseas
Video technical support, Online support
Laboratory
None
None
Ordinary Product
Provided
Not Available
1 Year
Other
36kg
+10-200 centigrade
30L
Temperature 5~30 PT100(Platinum gold resistor PT100)
The aplomb forces convection
hot air drying oven
DGG-9030
08F
Product Description

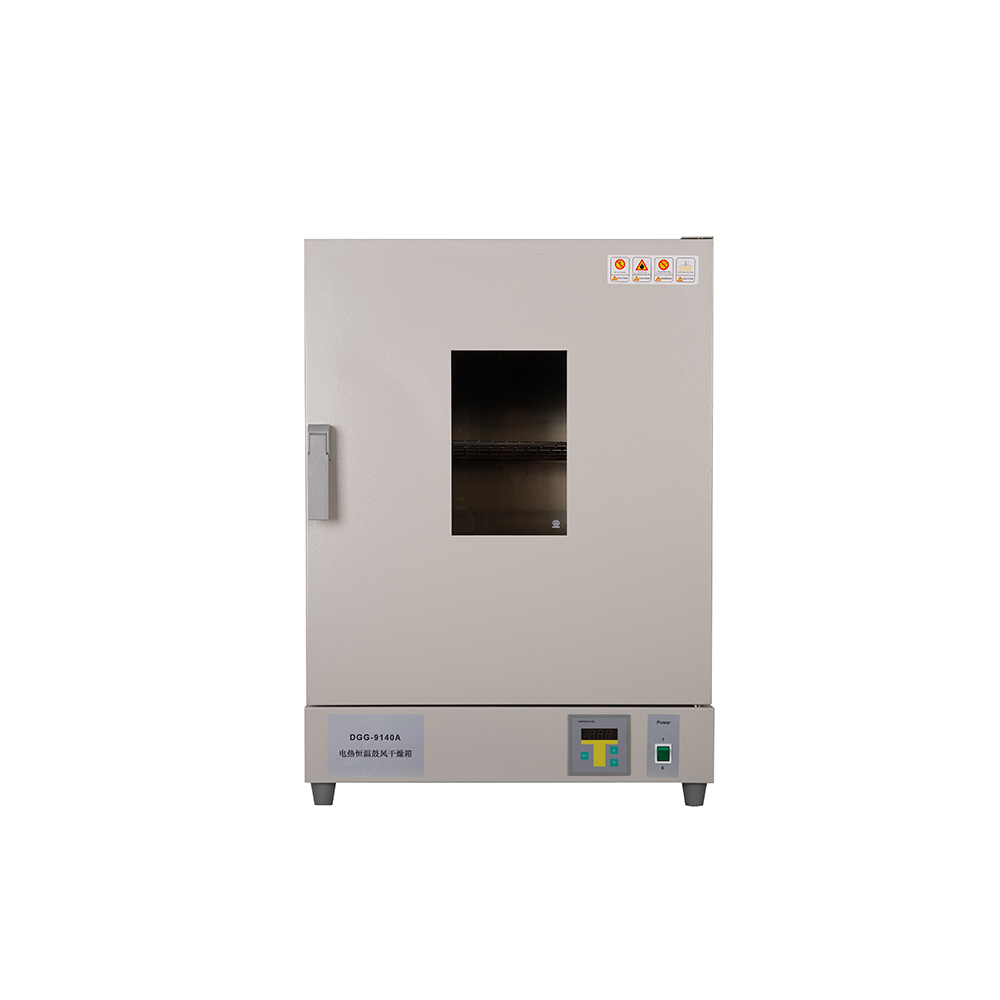

Nade CE Certificate Laboratory Instruments Conventional Oven and Air Drying Oven DGG-9030 30L +10-200C
Drying oven Detail:
1.Floor standing type, heating on the bottom, vertical force convection. Adopte imported fan, input and output volume can be adjustable,assure the temperature within the working chamber even.
2.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.
3.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
4.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
5.AD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation
6.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
7.Equipped with the interface of inert gas and flow meter of inert gas. (Option)
| Model | 9030(A\AD) | 9070(A\AD) | 9140(A\AD) | 9240(A\AD) | 9420(A\AD) | 9620(A\AD) | ||
| Chamber volume (L) | 30 | 70 | 140 | 230 | 430 | 620 | ||
| Environmental condition | Temperature 5~30 PT100(Platinum gold resistor PT100) | |||||||
| PT100(Platinum gold resistor PT100) Maximum relative humidity 80% | ||||||||
| Altitude up to 2000m | ||||||||
| Method | The aplomb forces convection | |||||||
| Power | +10~200 Ambient temperature | AC380V,50Hz | ||||||
| Range |
| |||||||
| Temperature | Accuracy | ±1at 100 | ||||||
| Pulsedegree | ±1 | |||||||
| Uniformity | ±1 at 100 | ±2 at 100 | ±2.5 at 100 | |||||
| Controller | (The PID microprocessor controls, touch type, numeral manifestation) | |||||||
| Sensor | PT100(Platinum gold resistor PT100) | |||||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | |||||||
| Material | Intenal | 9030,9070,9140,9240 as08 F(Iron 08F) (304 stainless steels) | ||||||
| External | 08F(Iron 08F) | |||||||
|
Dimension (mm) | Intenal | 300×300×350 | 400×400×450 | 450×550×550 | 500×600×750 | 600×550×1300 | 800×600×1300 | |
| External | 445×450×710 | 550×550×800 | 640×700×900 | 690×730×1100 | 770×710×1750 | 970×760×1750 | ||
| Net weight | 36KG | 50KG | 71.5KG | 90KG | 183KG | 250KG | ||
| Consumption power | 650W | 940W | 1390W | 1890W | 3370W | 3970W | ||
| Shelf dimension (mm) | 293×275 | 393×375 | 443×530 | 493×580 | 590×514 | 790×564 | ||
| Shelve(Supply/most) | 2/4 | 2/4 | 2/4 | 2/5 | 3/6 | 3/6 | ||
*All the temperature is centigrade
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
