Drying Oven
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Drying, burning, sterilizing, aging and similar applications
New
Zhejiang, China
Nade
220V 50HZ
500
95x80x140cm
CE ISO
Energy saving
1 year
No service
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
None
None
Ordinary Product
Not Available
Not Available
1 Year
OTHER
Engineers available to service machinery overseas
vacuum drying oven
Electricity
Stainless Steel 304
420L
80x63x85cm
RT+5~+80
0.1
XT5116-IN420
Product Description

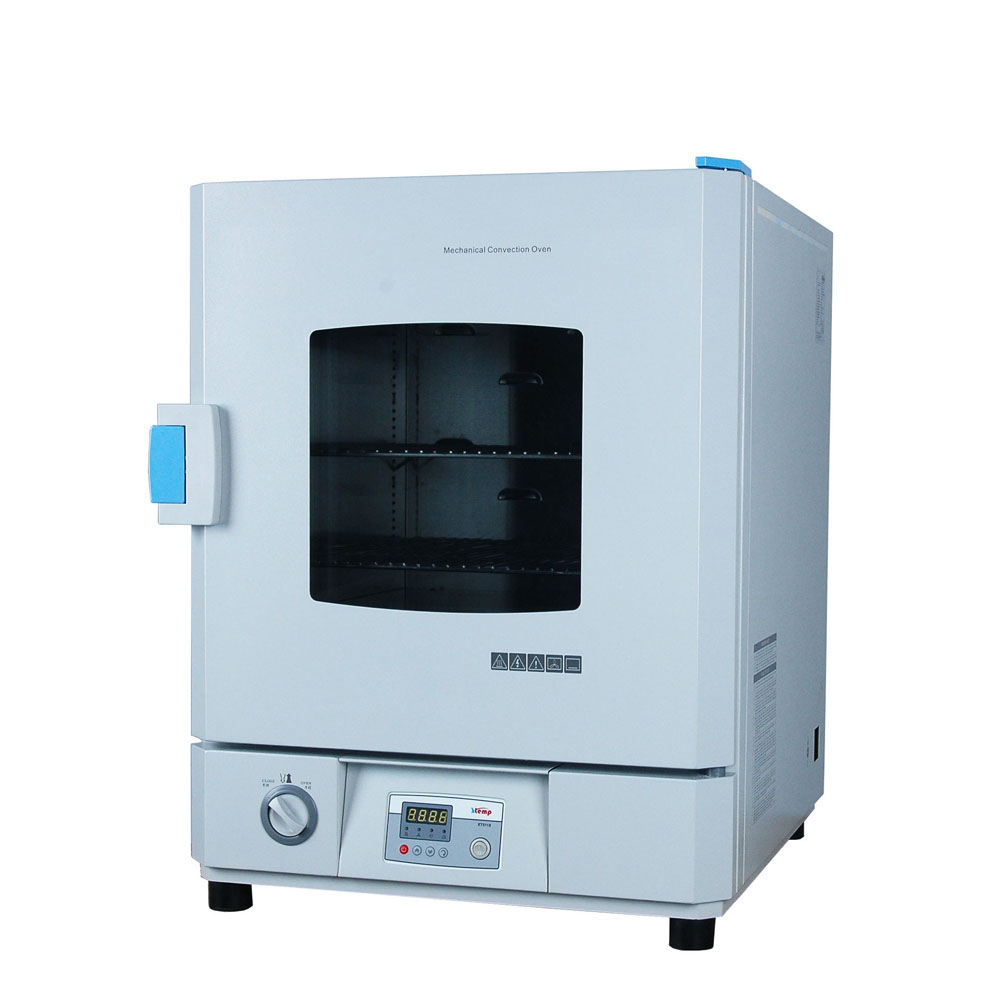

Nade 420L Drying Convenctional Oven XT5116-IN420 Mechanical convection incubator and ovens +5~80C
Function introduction:
Specification:
1.Mechanical convection ovens for Drying, burning, sterilizing, aging and similar applications.
2.Available with capacity of 50L, 70L, 140L, 240L, 420L and 720L for varieties of applications.
3.Precise incubating and hot-air drying, sterilizing in one unit, help to save money and make more space.Micro-processor based temperature controller and zero hysteresis wire heater for stability up to ± 0.1 °C
4.Silent hot conditioned long shaft fan and the unique design of air circulation for uniformity up to ± 1%.
5.Patented ventilator featured with safe and easy access for exhausting of damp and fume, fast cool-down and ultralow intrinsic temperature close to ambient.
6.Replacement for Binder FD, Memmert UF, MMM Stericell, Yamato DF and As One OFX.
| Models | XT5116-IN50 | XT5116-IN70 | XT5116-IN140 | XT5116-IN240 | XT5116-IN420 |
| Effective capacityL | 50 | 70 | 140 | 240 | 420 |
| Temperature range ℃ | RT+5~+80 | RT+5~+80 | RT+5~+80 | RT+5~+80 | RT+5~+80 |
| Temperature stability±℃ | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature uniformity±℃ | 1.0%~1.5% | 1.0%~1.5% | 1.0%~1.5% | 1.0%~1.5% | 1.0%~1.5% |
| Heater wattageW | 240 | 240 | 375 | 500 | 500 |
| Recovery time to DIN 12880 | 35~40min | 32~35min | 35~40min | 25~30min | 22~25min |
| Interior size (WDH)mm | 400×400×320 | 440×400×400 | 550×550×460 | 640×610×610 | 797×634×850 |
| Overall size(WDH) mm | 510×550×698 | 550×550×778 | 660×705×858 | 750×765×1008 | 945×800×1380 |
| Shelves(standard/maximum)EA | 2/3 | 2/4 | 2/5 | 3/7 | 4/8 |
| Observation window | YES | YES | YES | YES | YES |
