Vacuum Drying Equipment
6kg
Medicine Processing, Chemicals Processing, Food Processing
New
China
Nade
customizable
3000w
840*750*1580mm
CE Certificate
Easy to Operate
1 Year
Online support
300
No service
laboratory
None
None
Ordinary Product
Provided
Not Available
1 Year
Pump
0.3m^2
395*265mm
3pcs
400*270mm
3 layers
-50℃~+70℃
±1℃
≤-75℃
3L(thickness 10mm)
300kg
Product Description

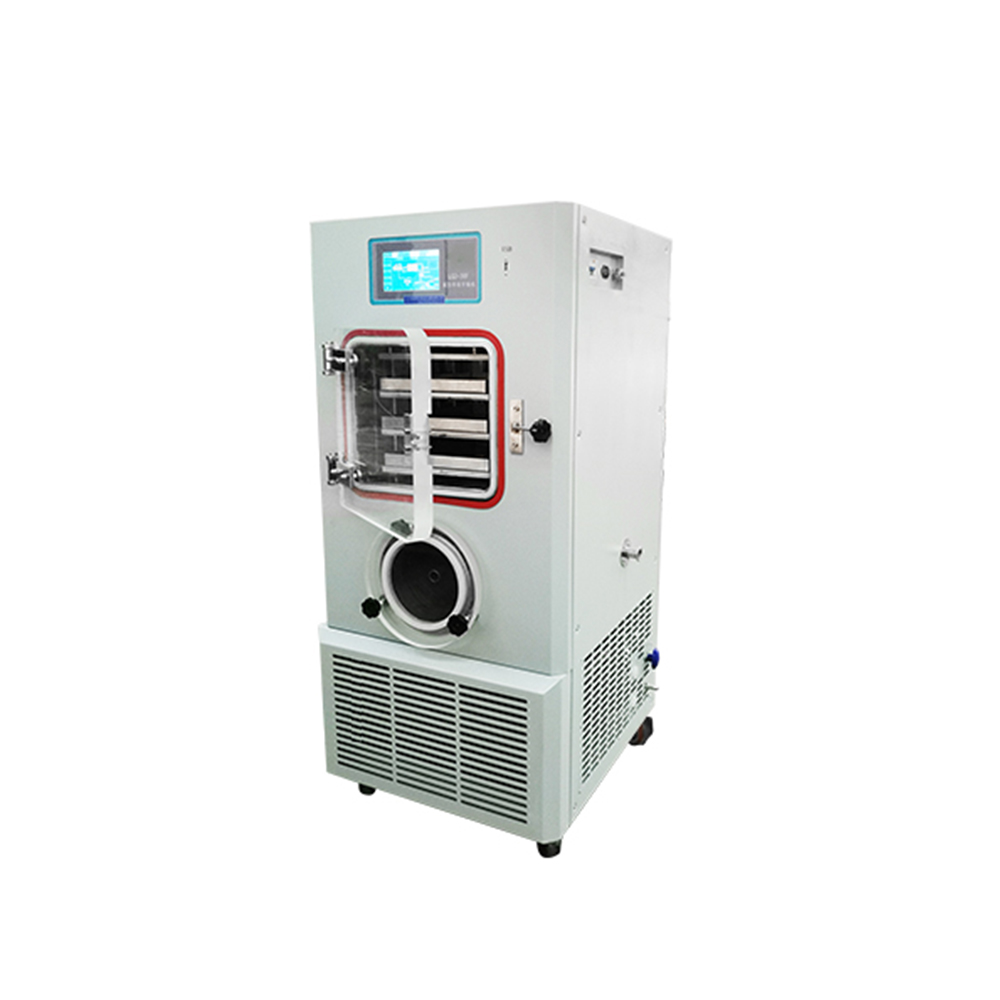

NADE LGJ-20F Standard Type Experimental Silicone Oil Heating Vacuum Lyophilizer/freeze drying equipment/freeze dryer
LGJ-20F Standard Type Experimental Silicone Oil Heating Vacuum Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.
Freezing and drying process of LGJ-20F (silicon oil heating) are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials
Application:
Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.
1. It is our company's patented product . Freezing and drying is finished in the same place. It is easy to operate,and have a good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. nflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Setting the user level and password , and decentralizing operation management
| Model | LGJ-20F |
| Specification | Standard type(silicone oil heating) |
| Freeze drying area | 0.3m^2 |
| Tray dimensions | 395*265mm |
| No. of tray | 3pcs |
| Shelf dimensions | 400*270mm |
| Shelf layers | 3 layers |
| Shelf spacing | 70mm |
| Shelf temp. range | -50℃~+70℃ |
| Shelf accuracy | ±1℃ |
| Cold trap temp. | ≤-75℃ |
| Ice collecting capacity | ≥6kg/24h |
| Pumping speed | 4L/S |
| Ultimate vacuum | ≤5pa |
| Power | 3000w |
| Weight | 300kg |
| Overall dimensions | 840*750*1580mm |
| Cooling mode | wind cooled |
| Shipping capacity | 3L(thickness 10mm) |
Optional accessories and functions
eutectic point tester
freeze drying finished judgement function
·vacuum pump anti-returned oil device
Automatic backfill/drainage system
·cold trap electrical heat defrosting
·oil mist filter system
Vacuum adjustment system
LYO-MEGA Software System
Mobile phone APP monitoring system
data recorder
backfill filter
Automatic backfill and drainage control system
External hanging bottle device
·imported vacuum pump
other models
LGJ-20FY LGJ-30F LGJ-30FY LGJ-50F
LGJ-50FY LGJ-100F LGJ-100FY
There are other series model:LGJ-10 series,LGJ-12 series,LGJ-12S series,LGJ-18 series,LGJ-18 series,etc.
Please contact us for more information on the above models.
