NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid

  • Vacuum Drying Equipment
  • 4kg
  • Medicine Processing, Chemicals Processing
  • New
  • China
  • Nade
  • 220V 50HZ
  • 0.97KW
  • 580*500*720mm
  • CE Certificate
  • Long Service Life
  • 1 Year
  • 41
  • No service
  • Manufacturing Plant, Food & Beverage Factory
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Other
  • 0.12㎡
  • 3-4Kg/24h
  • <5Pa
  • dia.200mm
  • 4pcs
  • 70mm
  • ≤-56℃,optional≤-80℃
  • 580*500*720mm
  • wind cooled
  • 1.2L(thickness 10mm)

Product Description

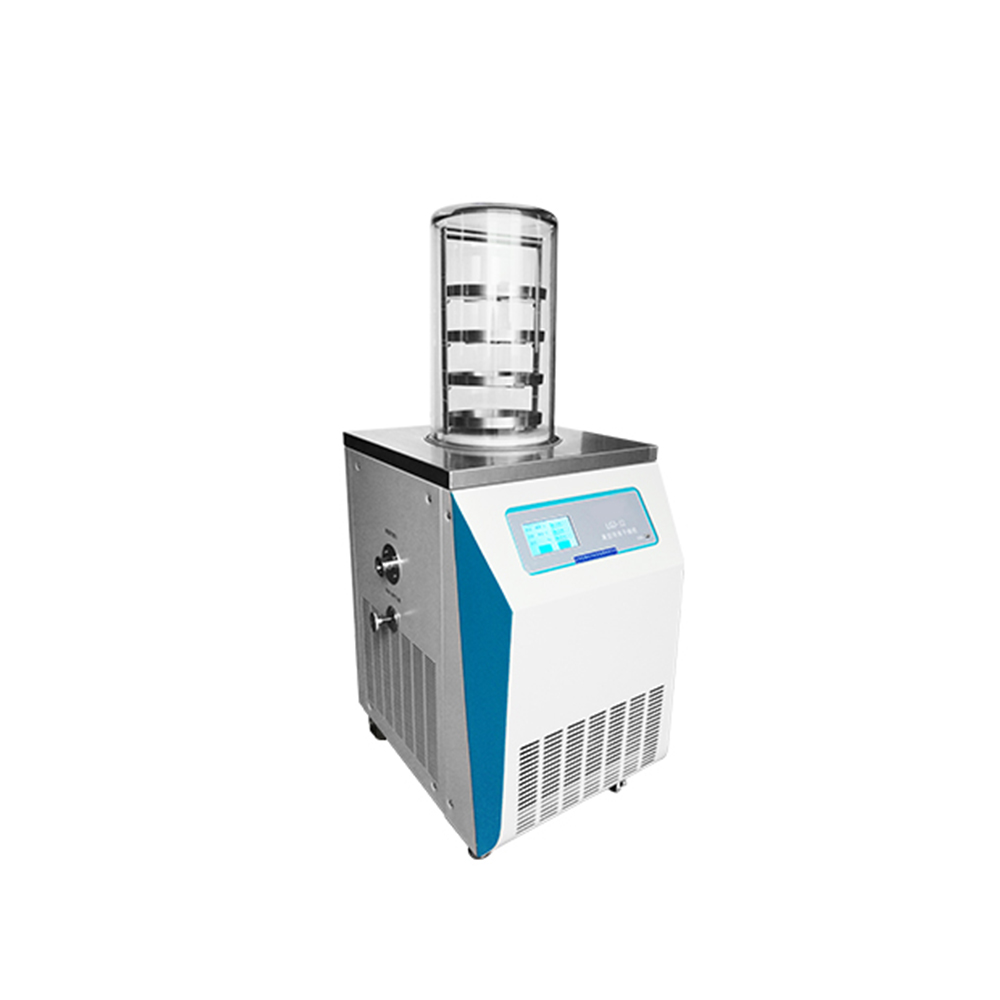

NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid

Product Description

LGJ-12A standard experimental vacuum freeze dryer widely used in medicine, pharmacy, biology research, chemical industry and food production,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.LGJ-12A is suitable for experiment in laboratory or small quantity of production. It can meet the regular freeze drying requirments of the most laboratory.

Applications:

Suitable for freeze-drying of bulk (liquid, pasty, solid) conventional materials.

NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid

Feature

1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. World- known brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

Specification

Model

LGJ-12A

Specification

Standard type

Freeze drying area

0.12m^2

Material tray dia.

dia.200mm

No. of tray

4pcs

Tray spacing

70mm

Cold trap temperature

≤-56℃,optional≤-80℃

Cold trap dept

140mm

Cold trap dia.

dia.215mm

Ice collecting capacity

3-4kg/24h

Pumping speed

2L/S

Ultimate vacuum

≤5pa

Power

970w

Weight

41kg

Overall dimensions

580*500*720mm

-80℃ overall dimensions

850*680*405mm

Drying chamber size

dia.260*465mm

Cooling mode

wind cooled

Defrosting mode

air cooled

Shipping capacity

1.2L(thickness 10mm)

Optional accessories and functions

·cold trap temperature -80℃
·vacuum pump anti-returned oil device

.cold trap electrical heat defrosting
·oil mist filter system
·imported vacuum pump

NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid

other models:

NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid

LGJ-12B LGJ-12C LGJ-12D

NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid NADE LGJ-12A Standard Type Lab Vacuum Lyophilizer/freeze drying equipment/freeze dryer for liquid, pasty, solid

LGJ-12E LGJ-12T

There are other series model:LGJ-10 series,LGJ-12S series,LGJ-18 series,LGJ-18S series,etc.

Please contact us for more information on the above models.
