NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

  • Vacuum Drying Equipment

  • 4kg

  • Medicine Processing, Chemicals Processing, Food Processing

  • New

  • China

  • Nade

  • 220V 50HZ

  • 0.97kw

  • 615*450*370mm

  • CE Certificate

  • Easy to Operate

  • 1 Year

  • No service

  • Farms, Laboratory

  • None

  • None

  • Ordinary Product

  • Provided

  • Not Available

  • 1 Year

  • Pump

  • 0.08m^2

  • 3-4kg/24h

  • ≤-56℃,optional≤-80℃

  • dia.180mm

  • 3pcs

  • 100/250/500/1000ml,each 2pcs

  • 140mm,dia.215mm

  • wind cooled

  • 0.8L(thickness 10mm)

  • 41kg

Product Description

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

appearance have been updated to below picture:

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

Product Description

LGJ-10D Multi-Manifold Top Press Type Experimental Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.This model is suitable for experiment in laboratory and small amount production ,and it can meet the regular freeze dying requirements of the most laboratories.

Applications:

It combines the features of top-press type and multi-manifold type on the standard type base.

· Suitable for freeze drying of bulk (liquid, pasty, solid) conventional substances;

· Suitable for the drying of vials' materials. When preparing for lyophilization, the materials are put into vials according to requirements. Freeze drying is performed with the unsealed vials'lid. After finishing the drying,the vials' lid is compacted to avoid secondary pollution, re-adsorption of water, easy to long-term storage;

Put the flask outside the drying chamber to dry the inner wall frozen material. The flask is as a container and connected to the manifold outside the drying chamber. The material in the flask is heated by room temperature . The flask can be removed or loaded at any time without downtime by the multi-manifold switch.

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

Feature

1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. World- known brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

Specification

Model

LGJ-10D

Specification

Multi-Manifold Top Press Type

Freeze drying area

0.08m^2

Material tray dia.

dia.180mm

No. of tray

3pcs

Tray spacing

70mm

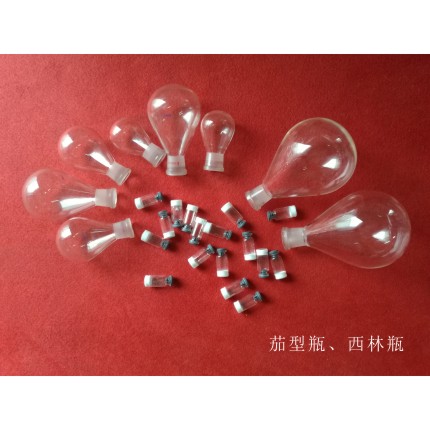

Flask capacity& qty

100/250/500/1000ml,each 2pcs

Cold trap temperature

≤-56℃,optional≤-80℃

Cold trap dept

140mm

Cold trap dia.

dia.215mm

Ice collecting capacity

3-4kg/24h

Pumping speed

2L/S

Ultimate vacuum

≤5pa

Power

970w

Weight

41kg

Overall dimensions

615*450*370mm

-80℃ overall dimensions

850*680*405mm

Drying chamber size

dia.260*540mm

Cooling mode

wind cooled

Defrosting mode

air cooled

Shipping capacity

0.8L(thickness 10mm)

loaded vials

Vials dia.12mm

492pcs

Vials dia.16mm

279pcs

Vials dia.22mm

147pcs

Optional accessories and functions

·cold trap temperature -80℃

·vacuum pump anti-returned oil device

·cold trap electrical heat defrosting

·oil mist filter system

. 50ml flask

jars device(600ml/1200ml)

·imported vacuum pump·imported vacuum pump
·non-standard customized

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

other models:

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

LGJ-10A LGJ-10B LGJ-10C LGJ-10T

There are other series model:LGJ-12 series,LGJ-12S series,LGJ-18 series,LGJ-18S series.

Please contact us for more information on the above models.

Certifications

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

Packaging & Shipping

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

Company Information

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

NADE LGJ-10D Multi-Manifold Top Press Type Laboratory Normal Lyophilizer/freeze drying equipment/freeze dryer

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
