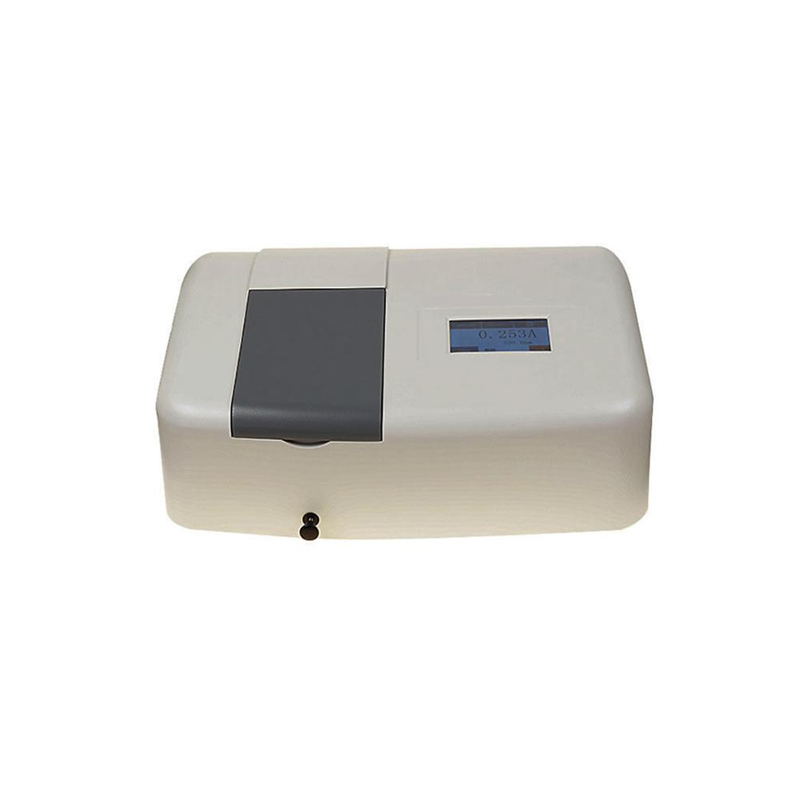

NADE 752 UV VIS Spectrophotometer

  • 1 year
  • other
  • China
  • NADE
  • 752
  • 470*380*225 mm
  • 10.5kg
  • no
  • 200~1000nm(step interval 0.1nm)
  • 4nm
  • Single beam, C-T type, 1200 lines/mm grating
  • Deuterium lamp ;Tungsten lamp
  • +/- 2.0nm (Auto-calibration when starting )
  • 4.3 inch touch screen
  • USB interface, LPT parallel printer interface

Product Description

Introduction

1. Automatic wavelength, wavelength setting and conversion more quickly and precisely.
2. 4 inches touch screen, display more sharply and operated more conveniently.
3. Tests that make sure that 1st order function curve should go through original point and generate a standard 1st order liner curve. The standard curve could setup for 12 standard sample points. This spectrophotometer also can do demarcate curve fitting, help users to read the concentration directly. Parameters of 50 curves are able to be saved and 2pp testing results could be saved at one time. Concentration factors can be setup and read directly.
4. System clock management, dark current correction, wavelength correction, USB interface port, light source switching for wavelength setting.
5. Built-in UV-Solution working station software which possesses all kinds of testing and scanning.

Applications

Measurement of quantities of some certain material in both visible and ultraviolet region. It could be applied vary among different fields, such as factories, schools, metallurgy, agriculture, food industry, biochemistry, environment protection, petrochemical industry, medical and health and scientific research institutes or labs.

Features

1.Big Color Screen: Large screen, TFT LCD monitor, provide abundant weighing display information, convenient to read.
2.Full Screen Touch: In line with the laboratory touch solutions for work habits, even wear gloves more pieces, it can be operated.
3.Humanized user interface: Application of Metro color scheme, using the green color, the eye won’t tired long for long time work.
4.Deviation Elimination: Deviation caused by cuvette will be eliminated automatically.

Specification
Model
752
Optical System
Single beam, C-T type, 1200 lines/mm grating
Detector
Silicon photo diode
Monitor
4.3 inch touch screen display
Light Source
Tungsten lamp (20W / 12V)
Deuterium lamp
In the 340 nm automatic switching
Spectral Bandwidth
4nm
Wavelength Range
200~1000nm(step interval 0.1nm)
Wavelength Accuracy
±2.0nm(Auto-calibration when starting )
Wavelength Repeatability
≤1.0nm
Stray Light
≤0.5%T(at 220,340nm)
Photometric Range
T:-1.0~200.0% , A:-0.5~3.000Abs, F:0~9999, C:0~9999
Transmittance Accuracy
±0.5%T(0~100%T)
Transmittance Repeatability
≤0.2%T
Stability
Dark current﹤0.2%T , Bright current﹤0.5%T
Data Output
USB interface, LPT parallel printer interface
Power Requirement
220V±10% 50Hz±1Hz 70W
Dimensions
47×28×22.5cm
Net Weight
10.5 kg
Accessories

We also provide cuvette for spectrophotometer, glass/quartz/plastic(disposible) at different size.
