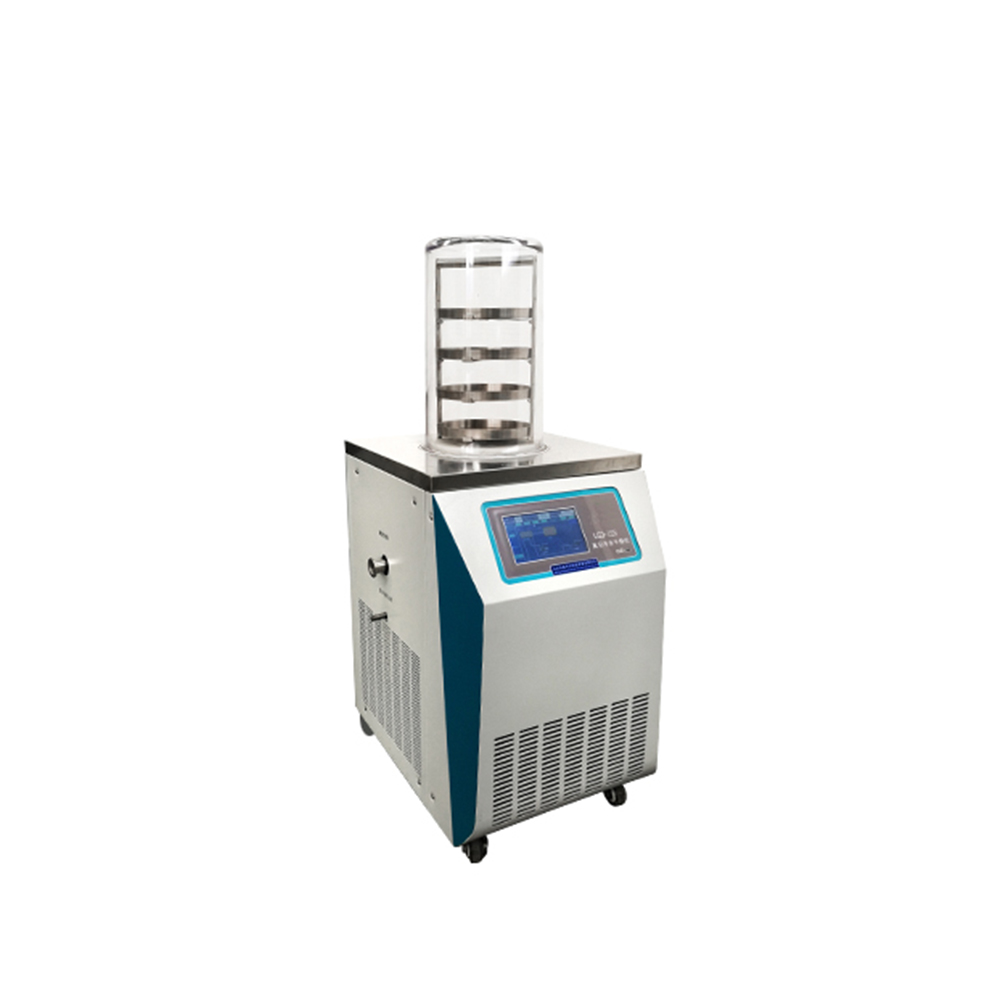

LGJ-12SA Standard Type Vacuum Freeze Dryer

Standard type(electric-heating)
Freeze-drying area: 0.12㎡
Cold trap temp: <-56(no-loading),option<-80(no-loading
Vacuum degree: ≤-56(no-loading)≤5(no-loading)
  • LGJ-12SA

  • 1

  • 1 year

  • China

Product Description

LGJ-12SA standard experimental electric-heating vacuum freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered. It is a kind of the small vertical freeze-drying unit with shelf heating and programmable functions.

LGJ-12SA standard experimental electric-heating vacuum freeze dryer is suitable for experiment in laboratory and small amount production ,and it can meet the regular freeze dying requirements of the most laboratories.

NADE LGJ-12SA Standard Type Experimental electric-heating vacuum Lyophilizer/freeze drying equipment/freeze dryerNADE LGJ-12SA Standard Type Experimental electric-heating vacuum Lyophilizer/freeze drying equipment/freeze dryer


1. All-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. World- known  brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

12. The shelf electric heating safety .The control systemvoltage (36V) temperature can control the heating rate.

13. Flexible manual + automatic control method, manual exploration process, automatic batch production.

14. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.

15. You can set the user level and password, decentralized operation management.

16. Powerful sensor calibration function ensures the long term accuracy of the measured value.





Standard type(electric-heating)

Freeze drying area


Material tray dia.


No. of tray


Tray spacing


Cold trap temperature


Cold trap dept


Cold trap dia.


Ice collecting capacity


Pumping speed


Ultimate vacuum






Overall dimensions


-80℃ overall dimensions


Drying chamber size


Cooling mode

wind cooled

Defrosting mode

air cooled

Shipping capacity

1.2L(thickness 10mm)

Optional accessories and functions

·cold trap temperature -80℃

eutectic point tester

·vacuum pump anti-returned oil device

·cold trap electrical heat defrosting

·oil mist filter system

Vacuum adjustment system

LYO-MEGA Software System

air filter

·imported vacuum pump
