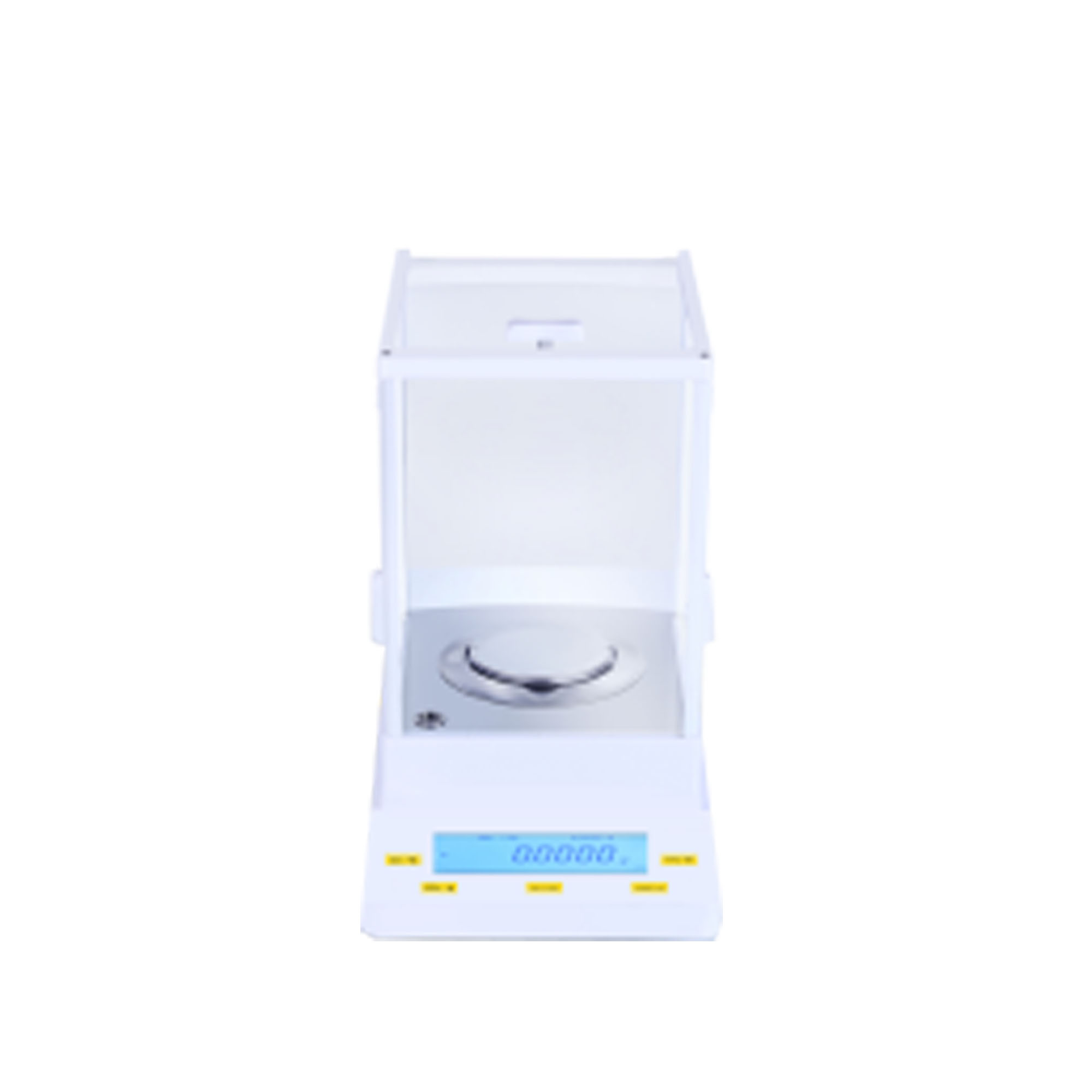

JA1203
NADE
220V
1
China
Product Description
l Modular electromagnetic force sensor
l Weighing range indicate, white light LCD display
l High sensitivity light touch buttons
l Under hook recessed
l The glass door lock to protecting transportation
l RS232 interface module, USB interface optional, built-in clock
l Independent “Tare” and “zero” bottom, two-way communication
l Four level shockproof
l Dynamic temperature compensation
l Weighing speed adjustable, showing way adjustable
l Zero in range ability
Specification
Model | JA1003 | JA1203 | JA2003 | JA3003 | JA4103 | JA5003 |
Weighing Capacity(g) | 100 | 120 | 200 | 300 | 410 | 500 |
Readability(g) | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
Repeatability(≤g) | ±0.001 | ±0.001 | ±0.001 | ±0.001 | ±0.001 | ±0.001 |
Linearity(≤g) | ±0.002 | ±0.002 | ±0.002 | ±0.002 | ±0.002 | ±0.002 |
Pan Size(mm) | 90 Diameter | 90 Diameter | 90 Diameter | 90 Diameter | 90 Diameter | 90 Diameter |
Gross Weight( kg) | 8 | |||||
Net Weight (kg) | 6 | |||||
Dimension(mm) | 365×223×338 | |||||
Packing Measurement (mm) | 500×310×450 | |||||
