DGG-9030B Air Convention Circulation Drying Oven

Chamber volume(L): 30
Environmental condition: Temp 5~30℃, Maximum relative humidity 80%
Method: the aplomb forces convection
Availability:
  • DGG-9030B

  • AC220V,50Hz

  • 1

  • 1 year

  • China

Product Description

Drying Oven  Detail:

Provided to industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction,wax-melting and sterilization. Detailed purpose: glassware desiccation, laboratorial sample, food, chemical material’s heat denaturalization, heat induration, heat inteneration, moisture eliminated; biomedical engineering ‘s instruments’ sterilization; electronic component’s torrefaction and aging. Features:

1.Floor standing type, heating on the bottom, vertical force convection. Adopte imported fan,assure the temperature within the working chamber even.

2.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Three-layer toughened glass observation window. The shelf is made of stainless steel, and can be adjustable. It is easy and convenient to use. With a beautiful and novel appearance.

3.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.

4.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.

5.BD Models have 10 segments programs of temperature-controlling, realize temperature’s stepped programme operation

6.BDH Models adopts dual controller structure to achieve multiple protections, safer and more reliable

7.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)

8.Equipped with the interface of inert gas and flow meter of inert gas. (Option)

Specification

Model

9030B
9030BD
9030BDH

9070B
9070BD
9070BDH

9140B
9140BD
9140BDH

9240B
9240BD
9240BDH

9420B
9420BD
9420BDH

9620B
9620BD
9620BDH

Chamber volume(L)

30

70

140

230

430

620

Environmental condition

Temperature 5~30℃

Maximum relative humidity 80%

Altitude up to 2000m

Method

The aplomb forces convection

Power

AC220V,50Hz

AC380V,50Hz

Range

Ambient temperature +10℃~300℃

Temperature

Accuracy

±1℃ at 100℃

Fluctuation

±1℃

Uniformity

±2℃
at 100℃

±2.5℃ at 100℃

Controller

The PID microprocessor controls, touch type, numeral manifestation

Sensor

Platinum gold resistor PT100

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Internal

304 stainless steels

External

08F

Dimension(mm)

Internal

300×300
×350

400×400
×450

450×550
×550

500×600
×750

600×550
×1300

800×600
×1300

External

445×450
×710

550×550
×800

640×700
×900

690×730
×1100

770×710
×1750

970×760
×1750

Net weight

36KG

50KG

71.5KG

90KG

183KG

250KG

Consumption power

1050W

1350W

1890W

2500W

4500W

5700W

Shelf dimension(mm)

293×275

393×375

443×530

493×580

590×514

790×564

Shelve(supply/most)

2/4

2/4

2/4

2/5

3/6

3/6

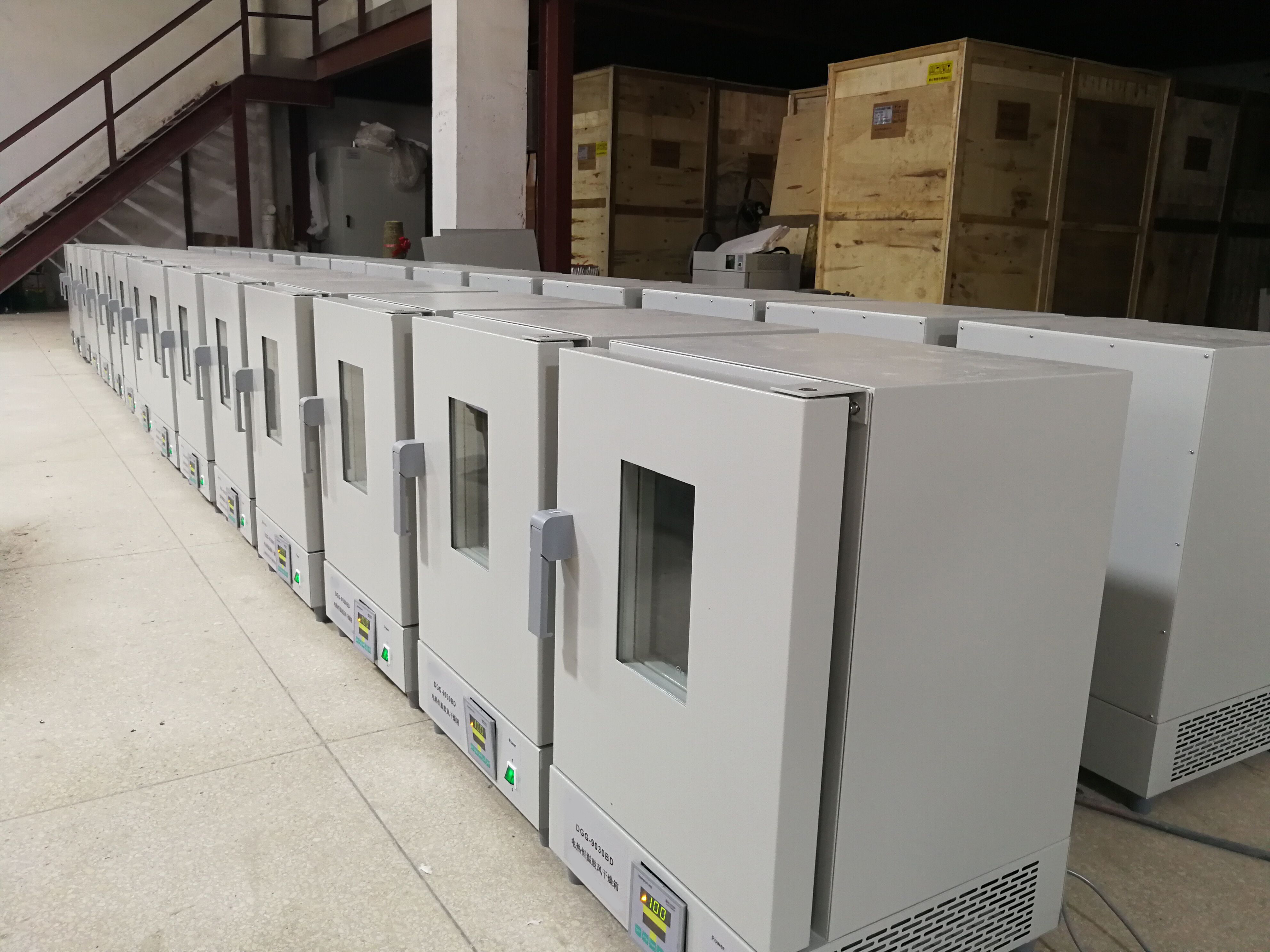

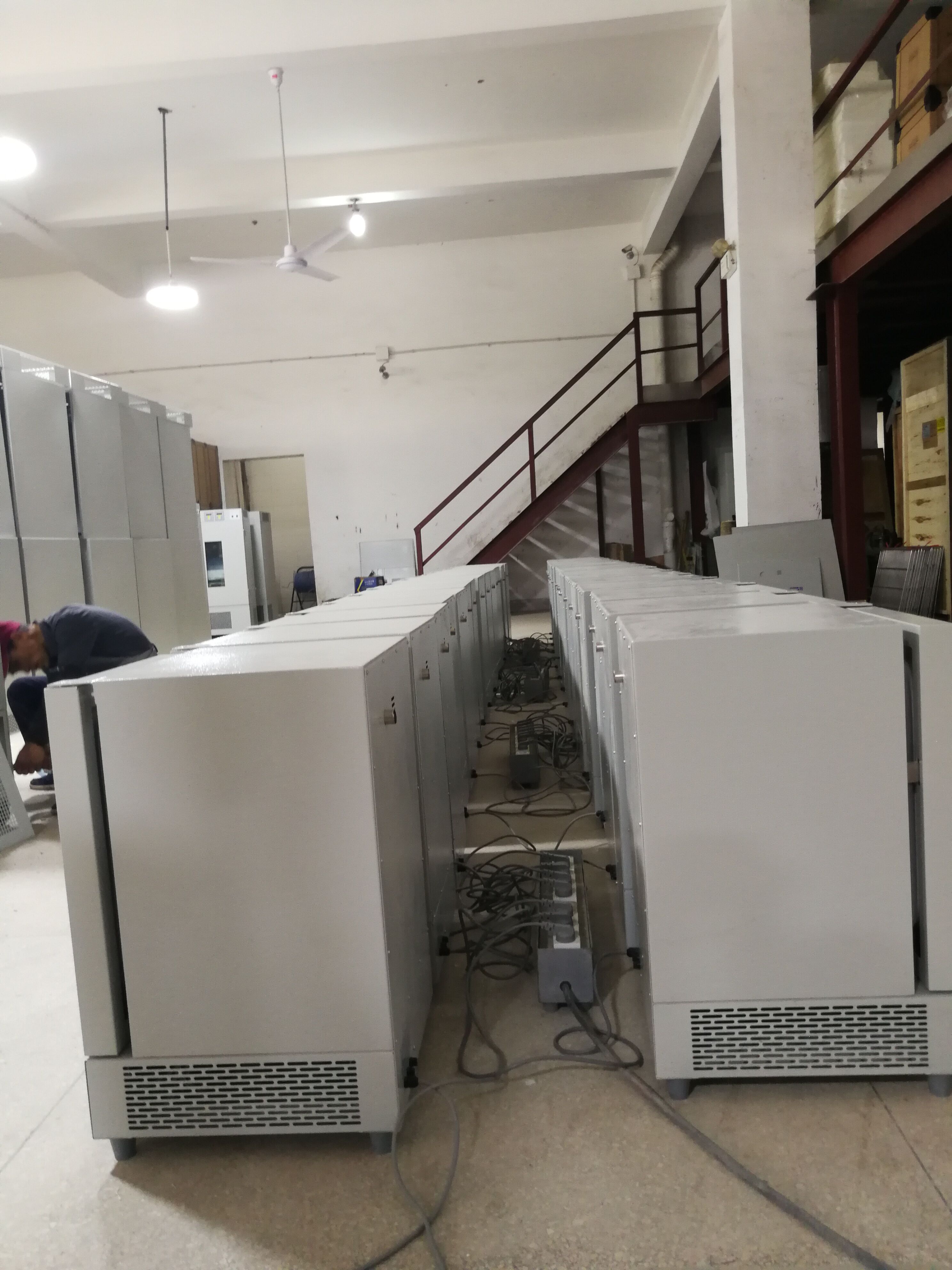

Real photos show

Nade CE Certificated DGG-9030B 30L +10~300C Air Convention Circulation Drying Oven

Nade CE Certificated DGG-9030B 30L +10~300C Air Convention Circulation Drying Oven

Nade CE Certificated DGG-9030B 30L +10~300C Air Convention Circulation Drying Oven
