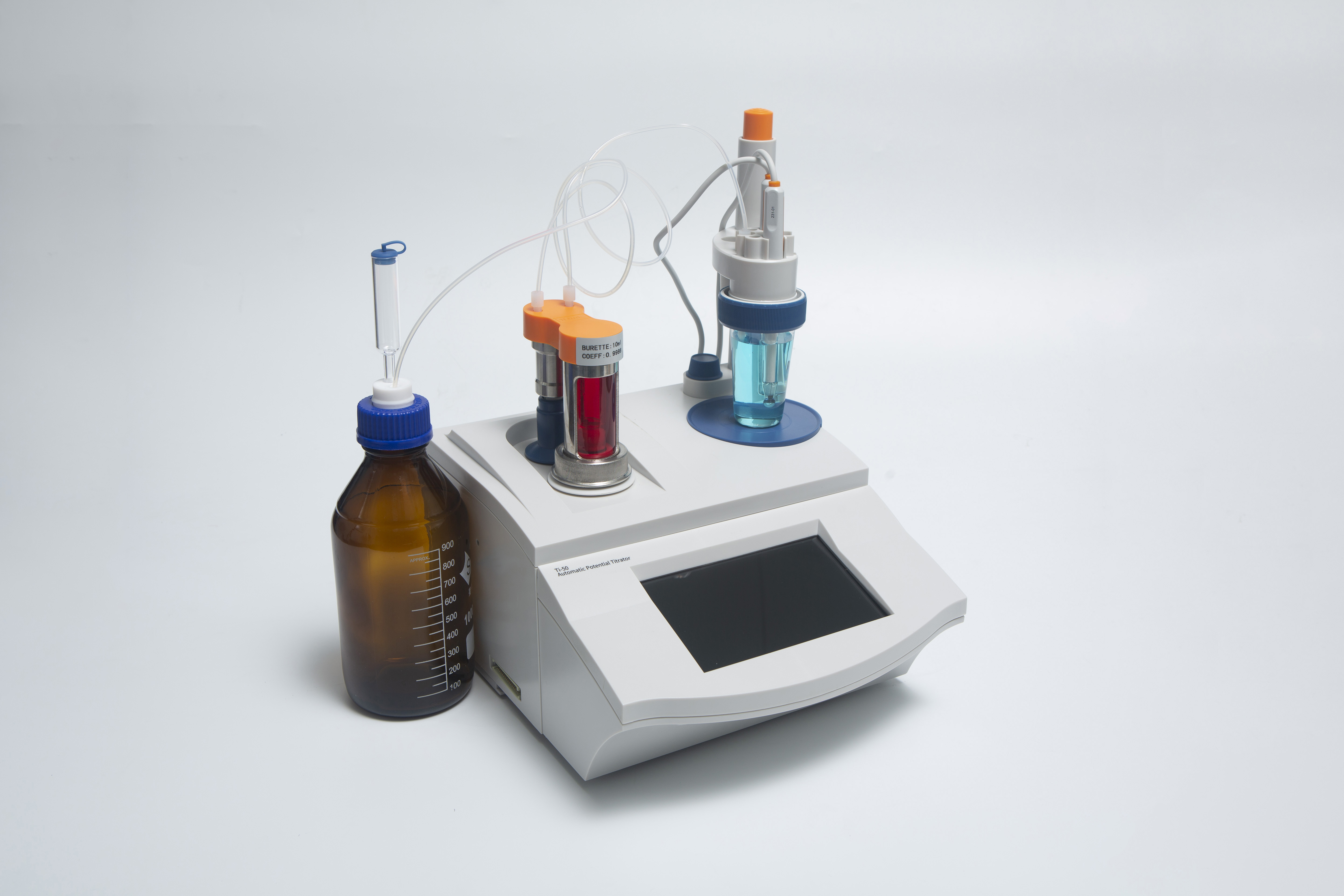

Ti-50 Benchtop Automatic Potential Titrator

Burette repeatability: 0.2%
Mechanical Unit Range: (-2000.00~2000.00) mV
Mechanical Unit Range: (0.000~20.000)pH
Temp. Compensation Range: (-5.0~105.0) ℃
Availability:
  • Ti-50
  • AC Adapter, 100-240V AC input, C24V output
  • 1
  • 1 year
  • China

Product Description

Ti-50

● 7” colorful touchscreen and smart guide system.

● Titration methods, curves and results are displayed in detail.

● 1 extra burette driver can be installed (optional).

● Replaceable burette with high-accuracy (10 ml or 20 ml selectable).

● Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.

● Support titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).

pH calibration and measurement are supported.

● Up to 100 user-defined methods and 10 user-defined shortcuts.

● Auto calculation with pre-defined formula.

● Store up to 200 titration data sets (GLP-compliant).

● Data analysis feature helps user review, compare and recalculate results.

● Data can be easily transferred to printer via RS-232 communication interface.

● Titrator can be controlled by computer via USB or RS-232 communication interface.

● Automatic sampler is supported.


-Free switch between Chinese and English

-Support acid-base titration, non-aqueous phase acid-base titration, reduction-oxydation titration, precipitation titration and complexometric titration, etc.

-Support connection to autosampler for batch testing

-Support connection of auxiliary titration units for dual line titration

-Support the programming of titration process to realize complex titration

Ti-50 细节


Specification

Model

Ti-50

          Burette

Repeatability

0.2%



Accuracy

10ml Burette: ±0.025ml

20ml Burette: ±0.035ml



Resolution

1/30000

Mechanical

Unit

Range

(-2000.00~2000.00) mV

(0.000~20.000)pH

   Measuring Unit

Resolutions

0.01mV



0.001pH

0.1mV, 0.01pH



Accuracy

pH: ±0.01pH

mV: ±0.03%FS



Fluctuation

±0.3mV/3h

          Temp.

   Compensation

Range

(-5.0~105.0)



Resolutions

0.1



Accuracy

±0.3 ℃( 0~60℃)

±1.0 ℃(else)

        General

Power Supply

AC Adapter, 100-240V AC input, C24V output



Dimensions

340×400×400 mm



Weight

10 kg


Configuration

10ml Titration device

232-01 Reference electrode

213-01 Platinum electrode

216-01 Silver electrode

217-01 Reference electrode

231-01 pH indicator electrode

T-818-B-6 Temperature probes

NIST pH Standard Solution (4.01, 7.00, 10.01) one bottle each (50ml/bottle)

Ti-50 电极配置Ti-50 电极配置 T818-B-6

Ti-50 P1

ZDJ-5B
