KFT-40VC Karl Fischer Titrator

Volumetric Titration Range: (0.1mg~250)mg
Volumetric Titration Repeatability: ≤±0.5%
Coulometric Titration Range: 10μg~20mg
Coulometric Titration Accuracy: ± (5%+3) μg

Availability:
  • KFT-40VC
  • AC Adapter, 100-240 V AC input
  • 1
  • 1 year
  • China

Product Description

KFT-40VC

Volumetric Karl Fischer Titration

● Support KF Titration Mode and Titer Detection Mode.

● Features of auto-filling, auto-purging and auto-mixing of the reagents ensure safe handling of Karl Fischer chemicals.

● Automatic/manual background drift correction ensures accurate results.

● Selectable units including mg, mg/L, %, ppm, etc.

● Settable parameters, including measurement unit, polarization current, stirring rate, titration rate, stop volume, endpoint potential, stop criterion and etc.

● Store up to 200 titration data sets (GLP-compliant)



Coulometric Karl Fischer Titration

● Generator cell with diaphragm.

● Automatic/manual background drift correction ensures accurate results.

● Selectable units including μg,mg,%,ppm,mg/L,μg/mL, etc.

● Settable parameters, including measurement unit, polarization current, stirring rate, generator current, endpoint potential, stop criterion and etc.

● Store up to 200 titration data sets (GLP-compliant).


KFT-40VC 细节

GENERAL FEATURES

● LCD display screen.

● Titration methods, curves and results are displayed in detail.

● Volumetric KF Titration and Coulometric KF Titration are supported.

● Data analysis feature helps user review and compare results.

● Data can be easily transferred to printer via RS-232 communication interface.

● Reset feature automatically resumes all settings back to factory default options.


KFT-40VC 配件

Specification

Model

KFT-40VC

Volumetric Titration

Range

(0.1mg~250)mg



Polarization Current Accuracy

A±0.2μA; 50μA±10μA



Repeatability

≤±0.5%

      Coulometric Titration

Range

10μg~20mg



Polarization Current Accuracy

±0.2μA



Working Current

1, 1.86, 5,10 μg ( H2O) /s for 10.72mA, 20 mA, 53.61mA, 107.2 mA



Working Current Accuracy

0.5%



Accuracy

± (5%+3) μg



Repeatability

≤±3%

             General

Power Supply

AC Adapter, 100-240 V AC input



Dimensions

340×400×400 mm



Weight

10kg


Configuration

External equipment

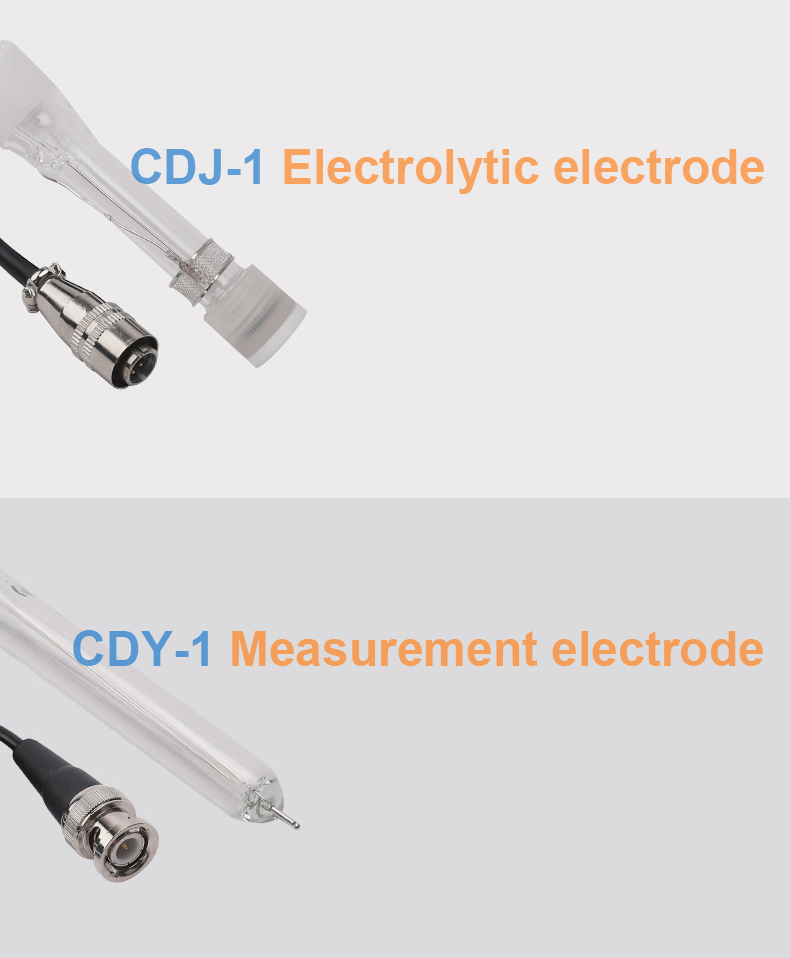

Measurement electrode; Electrolytic electrode

10ml burette device

Solid Cup (Volumetric Method); Electrolytic Cup (Coulometric Method)

KFT-40VC 电极

ZDY-504
