KFT-20V Karl Fischer Coulometer

Type: Micro Moisture Meter
Coulometric Ttration Range: 10ug~20mg
Coulometric Ttration Accuracy: ± (5%+3) μg
Coulometric Ttration Repeatability: ≤±3%
Availability:
  • KFT-20V
  • AC Adapter, 200-240 VAC input
  • 1
  • 1 year
  • China

Product Description

KFT-20V

● LCD display screen.

● Generator cell with diaphragm.

● Selectable units including μg,mg,%,mg/L,g/L, etc.

● Settable parameters, including measurement unit, polarization current, generator current, endpoint potential, stop criterion and etc.

● Data can be stored and easily transferred to printer via RS-232 communication interface.

● Reset feature automatically resumes all settings back to factory default options.

KFT-20V

- Measurement of moisture content by Coulomb method to meet the needs of trace moisture measurement

- Adopt membrane electrodes, suitable for the determination of organic solvents, oils and other samples containing traces of moisture

- It can calibrate the correction factor to make the measurement accuracy more accurate

- Support the pre-electrolysis state to fully balance the water in the instrument

- Support data storage, viewing, deletion and printing


Specification

Model

KFT-20V

     Coulometric Ttration

Range

10ug~20mg



Polarization Current Accuracy

±0.2μA



Working Current

10mA, 20 mA, 50 mA, 100 mA



Working Current Accuracy

0.5%



Accuracy

± (5%+3) μg



Repeatability

≤±3%

              General

Power Supply

AC Adapter,  200-240 VAC input



Dimensions

300×235×100 mm



Weight

2 kg


Configuration

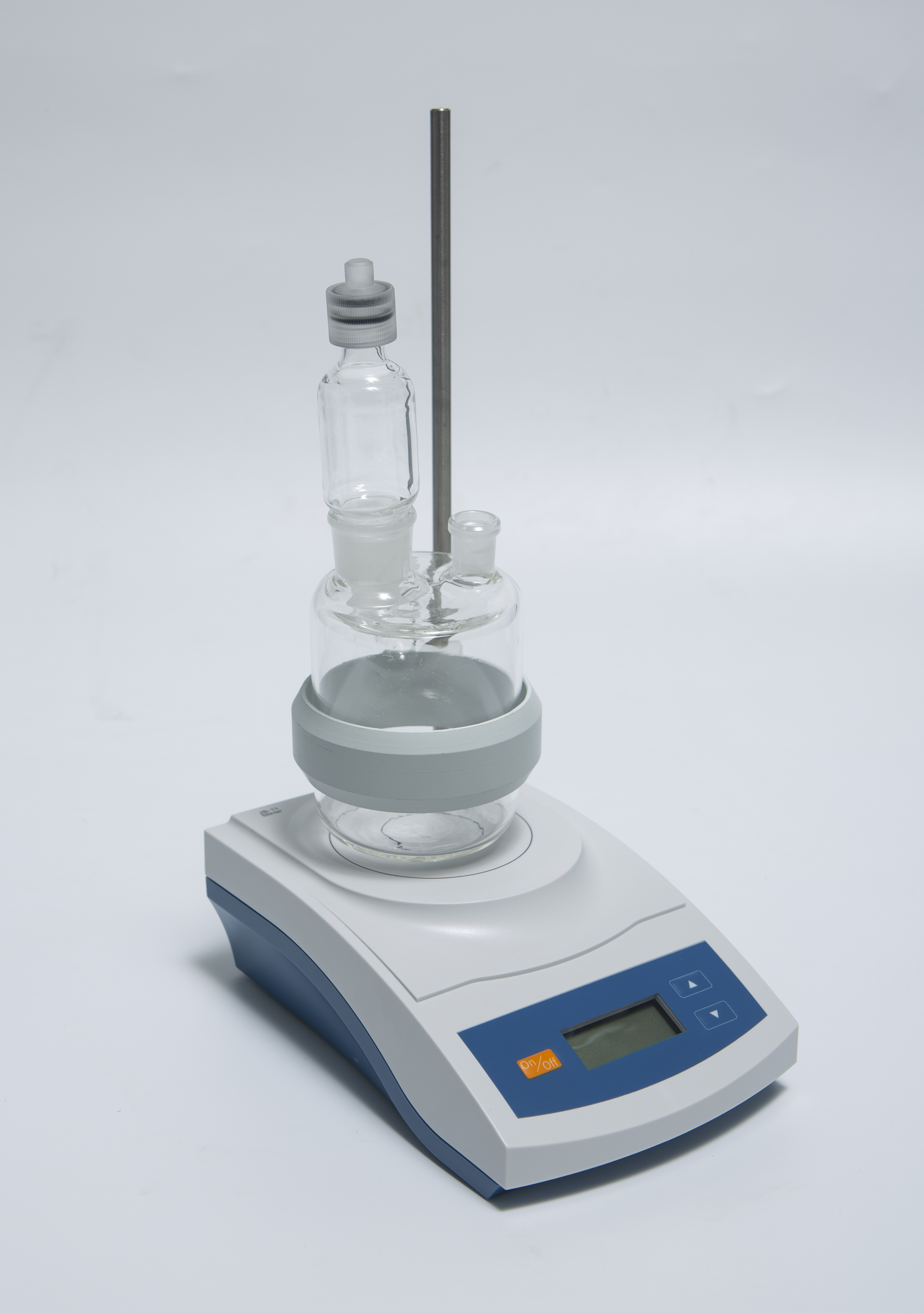

JB-11 magnetic stirrer

magnetic stirrer

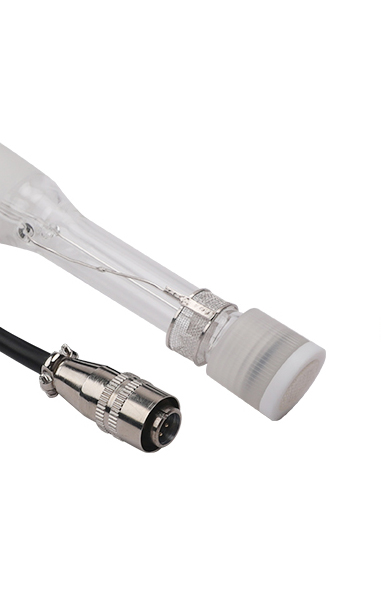

Electrolytic electrode

电解电极

Indicator electrode


KLS-411
