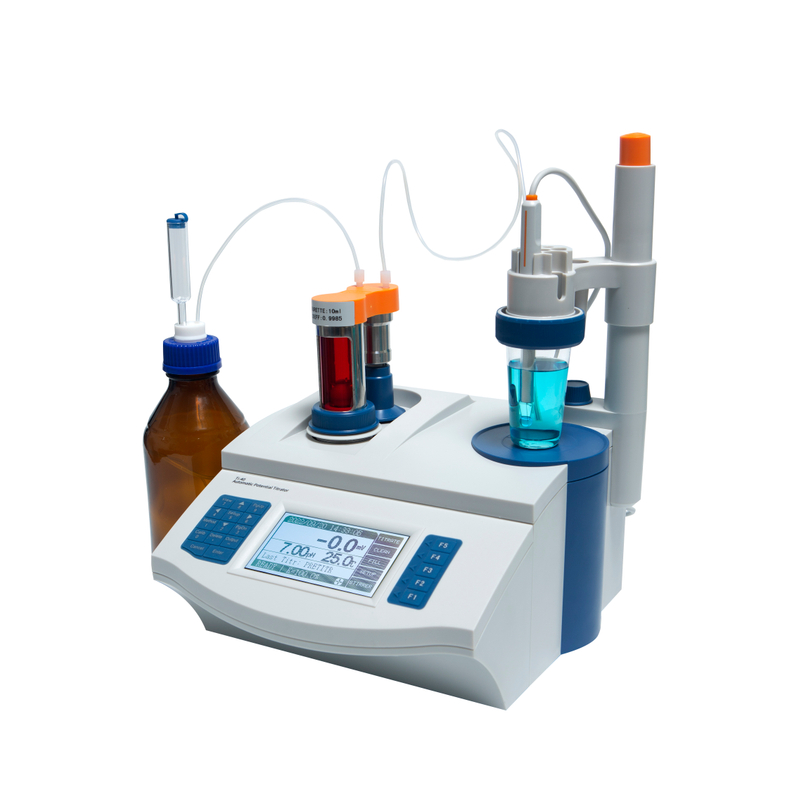

Ti-40 Benchtop Automatic Potential Titrator

Burette repeatability: 0.2%
Mechanical Unit Range: (-1800.0~1800.0) mV
Mechanical Unit Range: (0.00~14.00)pH
Temp. Compensation Range: (-5.0~105.0) ℃
Availability:
  • Ti-40
  • AC Adapter, 100-240V AC input, C24V output
  • 1
  • 1 year
  • China

Product Description

Ti-40

● LCD display screen and smart guide system.

● Titration methods, curves and results are displayed in detail.

● Replaceable burette with high-accuracy (10 ml or 20 ml selectable).

● Support titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).

● pH calibration and measurement are supported.

● Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve.

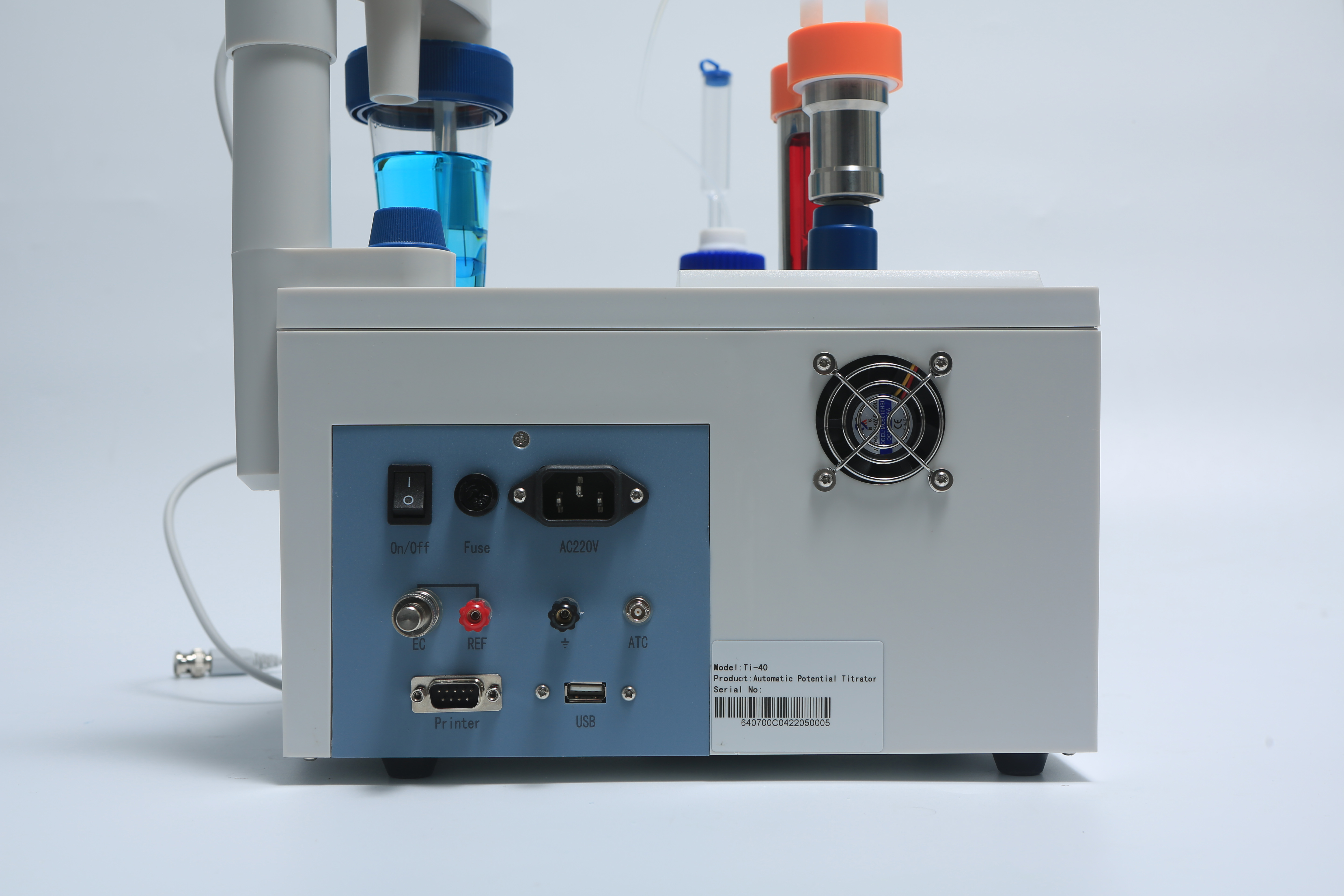

● Data can be easily transferred to printer via RS-232 communication interface..

● Titrator can be controlled by computer via USB or RS- 232 communication interface.


Specification

Model

Ti-40

          Burette

Repeatability

0.2%



Accuracy

10ml Burette: ±0.025ml

20ml Burette: ±0.035ml

Mechanical Unit

Resolution

1/14000

     Measuring Unit

Range

(-1800.0~1800.0) mV

(0.00~14.00)pH



Resolutions

0.1mV, 0.01pH



Accuracy

pH: ±0.01pH

mV: ±0.05%FS



Fluctuation

±0.3mV/3h

             Temp.

     Compensation

Range

(-5.0~105.0)



Resolutions

0.1



Accuracy

±0.3

          General

Power Supply

AC Adapter, 100-240V AC input,

C24V output



Dimensions

340×400×400 mm



Weight

10 kg


Configuration

10ml Titration device

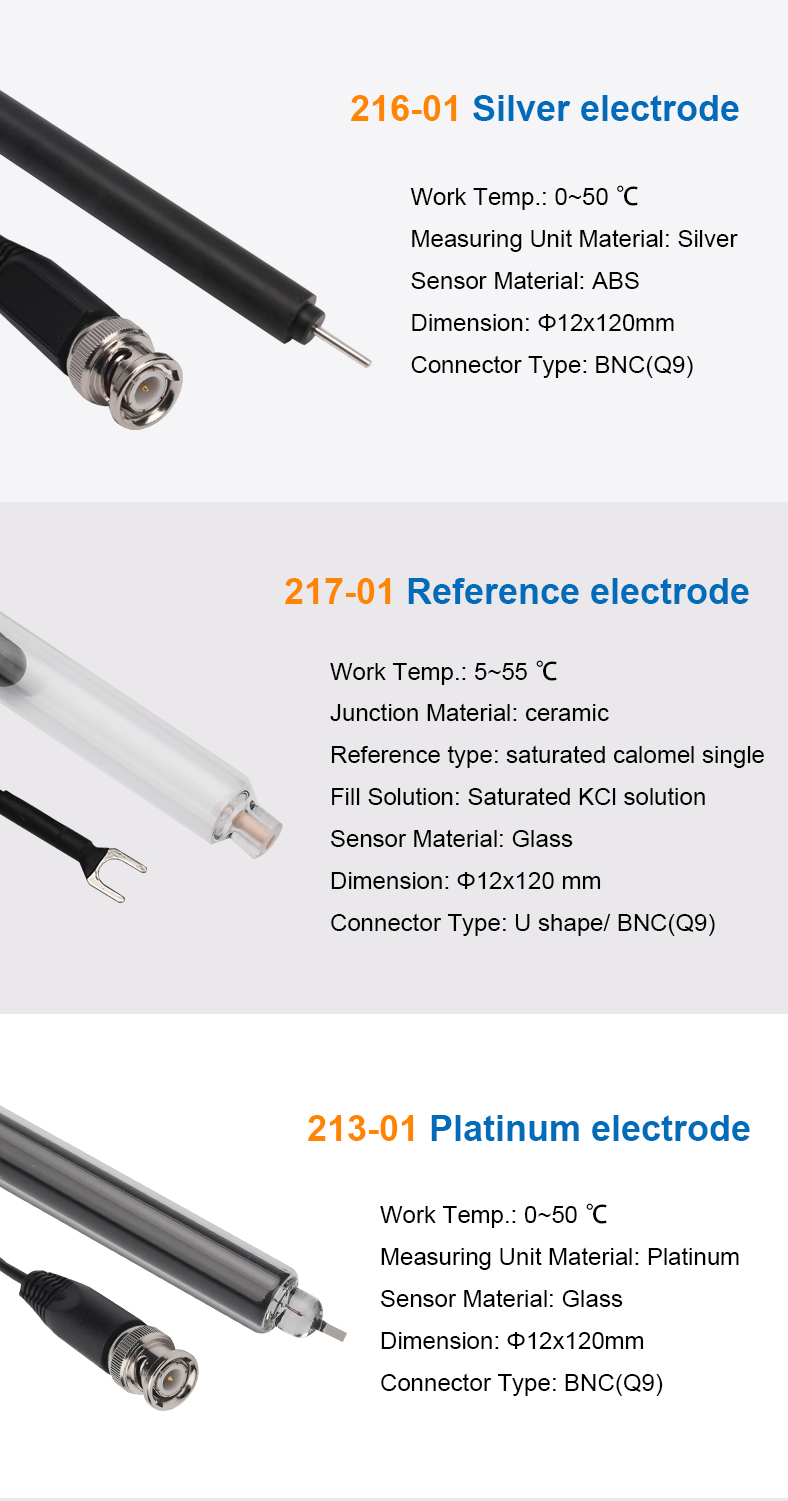

232-01 Reference electrode

213-01 Platinum electrode

216-01 Silver electrode

217-01 Reference electrode

231-01 pH indicator electrode

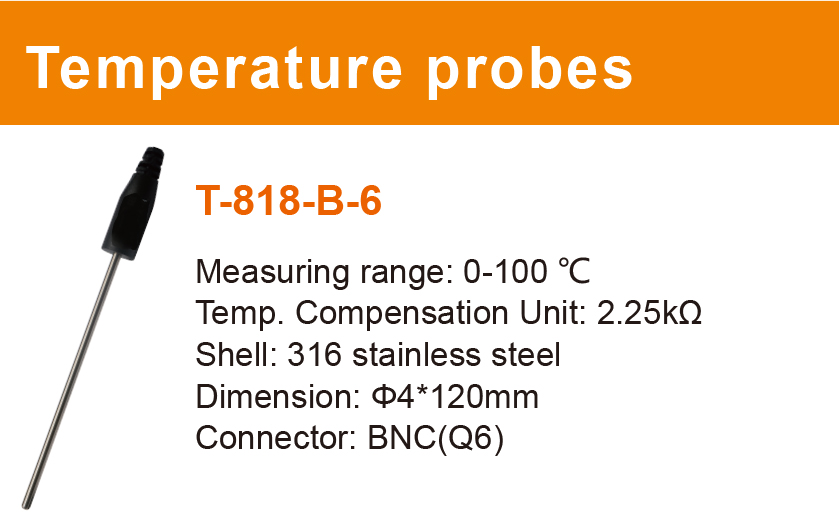

T-818-B-6 Temperature probes

NIST pH Standard Solution (4.01, 7.00, 10.01) one bottle each (50ml/bottle)

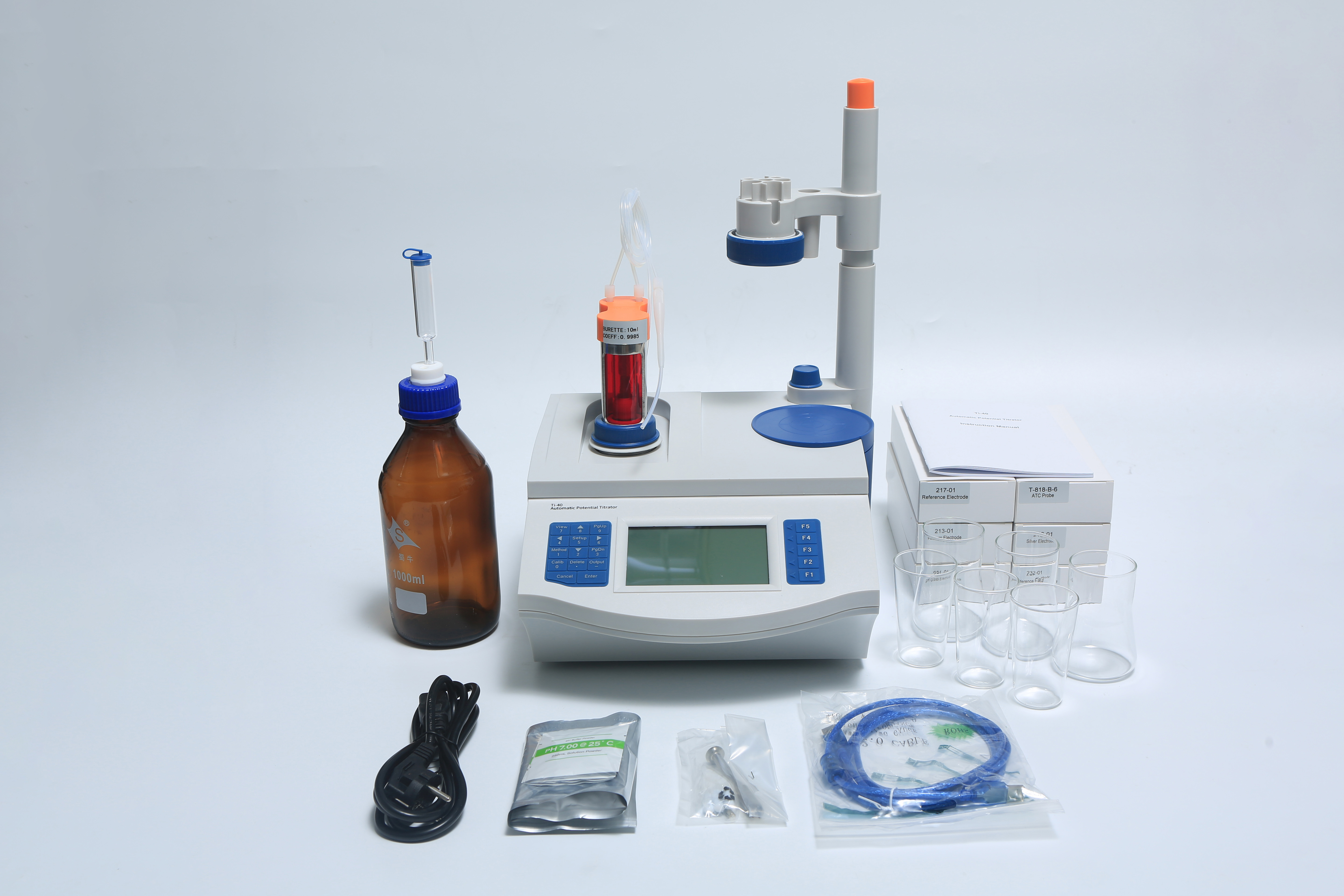

Ti-40 P1

ZDJ-4B
