EC5
NADE
DC3V, AAA batteries*4
1
1 year
China
Product Description

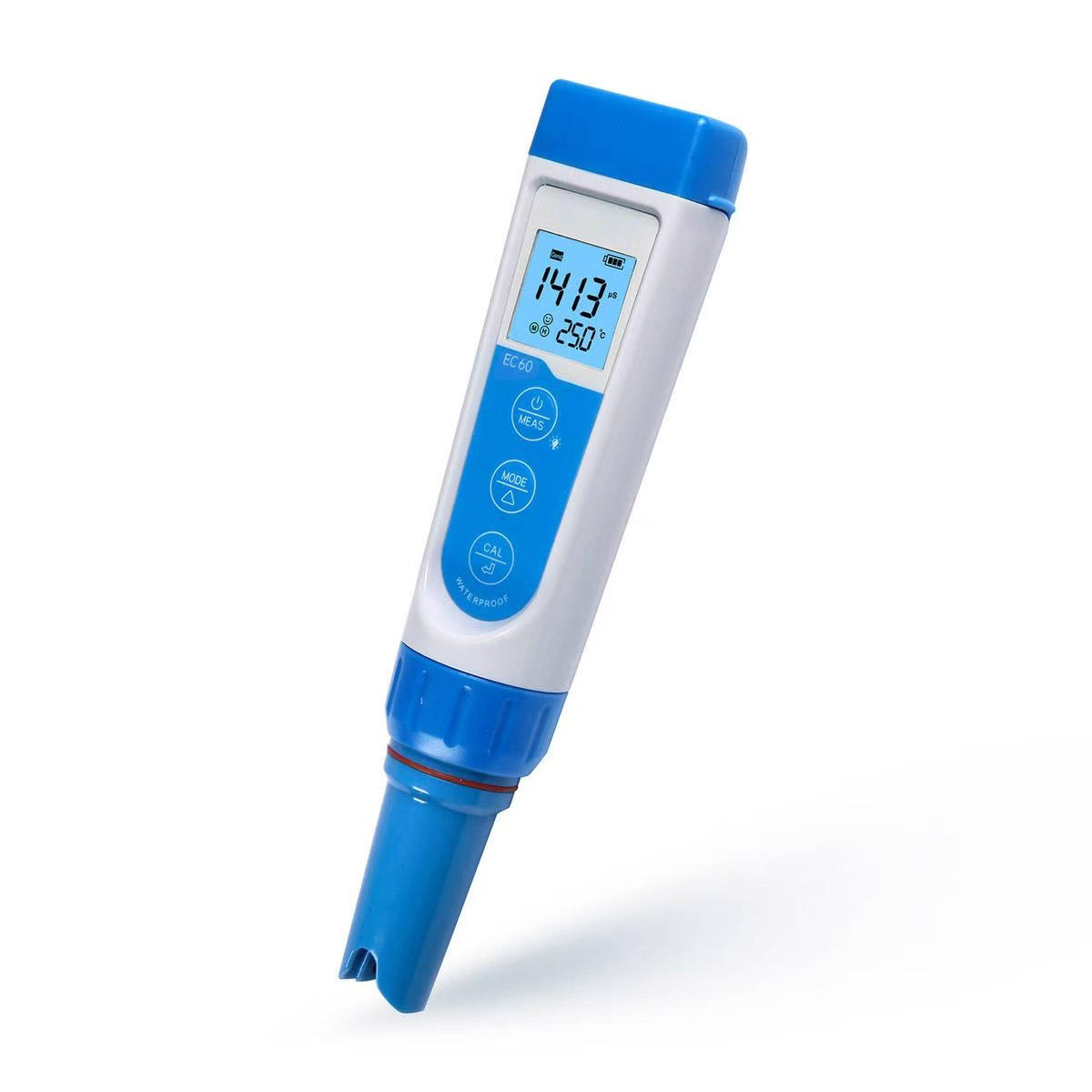

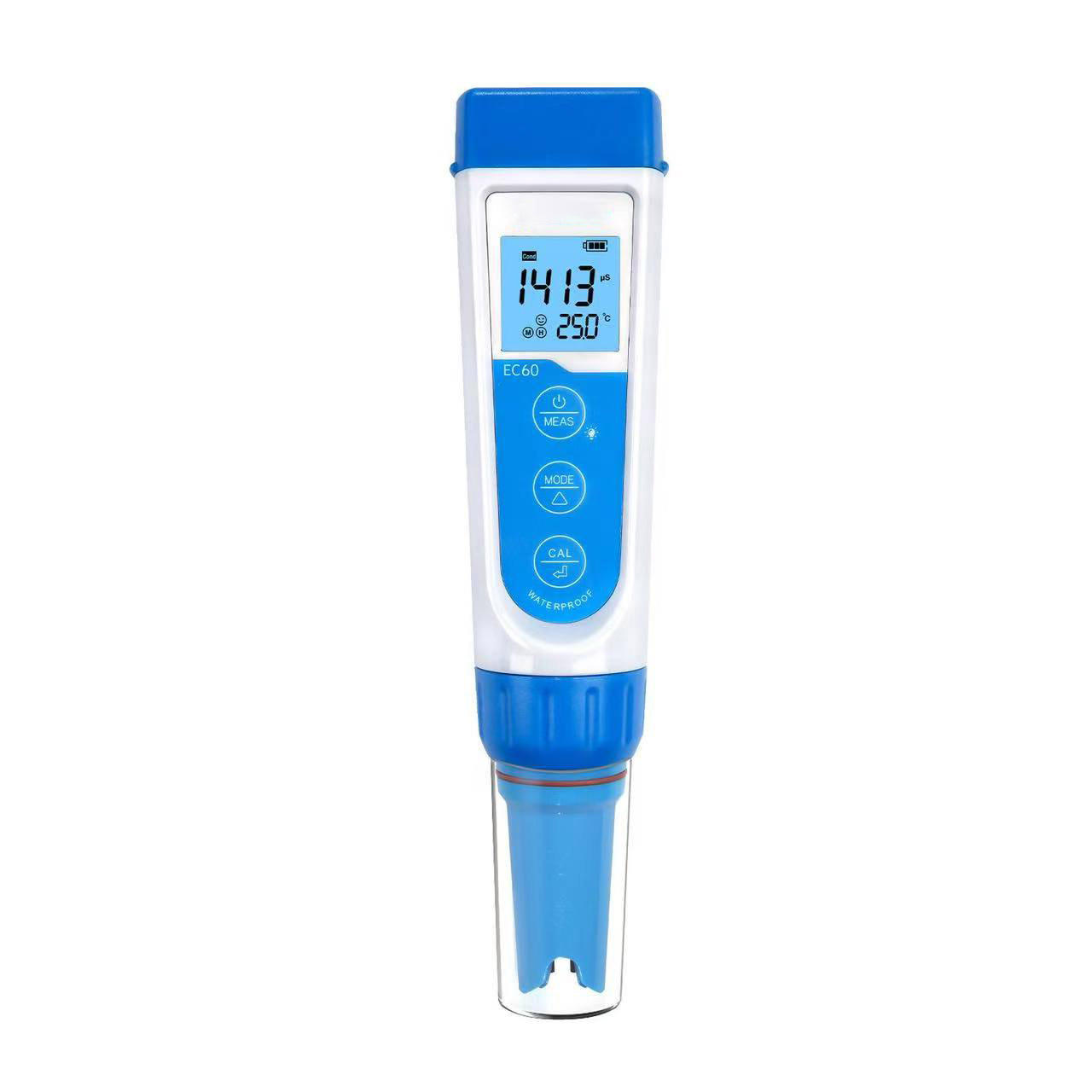

EC5 Pen-Type Conductivity Meter

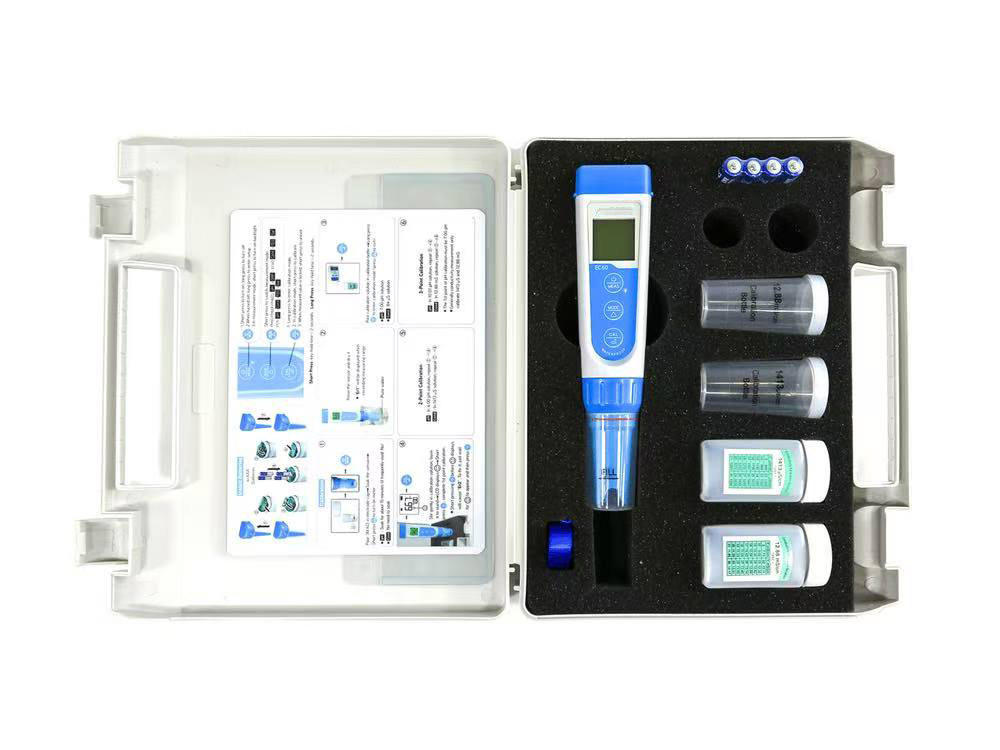

It is suitable for routine conductivity / TDS / salinity testing of aqueous solutions, and applicable to scenarios such as hydroponics, aquaculture, swimming pools & hot springs, water treatment, and factory cooling towers. Featuring IP67 waterproof protection and a sturdy carrying case (which contains all accessories), it is particularly ideal for use in harsh conditions, fieldwork, and on-site operations.
Application
Regular water solution testing, such as pools and spas, hydroponics, tap water, drinking water, water treatment, aquaculture, etc.
Specification
Model | EC5 | |
Conductivity | Range | 0 to 20 mS/cm divided into three scales (0 to 199.9 μS/cm; 200 to 1999 μS/cm; 2000 to 19.99 mS/cm) |
Resolution | 0.1/1 μS, 0.01 mS | |
Accuracy | ±1% F.S. | |
Calibration Points | Automatic 1 to 3 points | |
Temperature Compensation | Auto Temperature Compensation 0 to 50°C (32 to 122°F) | |
TDS | Range | 0.1 ppm to 10.00 ppt |
TDS Factor | 0.40 to 1.00 | |
Salinity | Range | 0 to 10.00 ppt |
Temp. | Range | 0 to 50°C (32 to 122°F) |
Resolution | 0.1°C | |
Accuracy | ±0.5°C | |
LCD | 2-Color Backlit LCD, 180° Viewing Angle | |
Reading Lock | HOLD | |
Stable Reading Indication | Smiley Face icon | |
Low-Battery Warning | Battery icon flashing, reminder of battery replacement | |
Self-Diagnosis | Yes | |
Heads-Up Function | No | |
Auto. Power-Off | Yes, auto power-off in 8 minutes without operation | |
Waterproof Rating | IP67; Floatable | |
Power | DC3V, AAA batteries*4 | |
Battery Life | Continuous operation up to 1000 hours | |
Dimensions& Weight | Tester: (40*40*178) mm/ 133g; With case: (255*210*50) mm/ 700g | |
