PC910 Benchtop PH/Conductivity Meter

pH Range: -2.00 to 20.00 pH
mV Range: ±2000mV
Conductivity Range: 0~200.0mS/cm
TDS: 0.1mg/l~100 g/l
Availability:
  • PC910

  • NADE

  • DC9V

  • 1

  • 1 year

  • China

Product Description

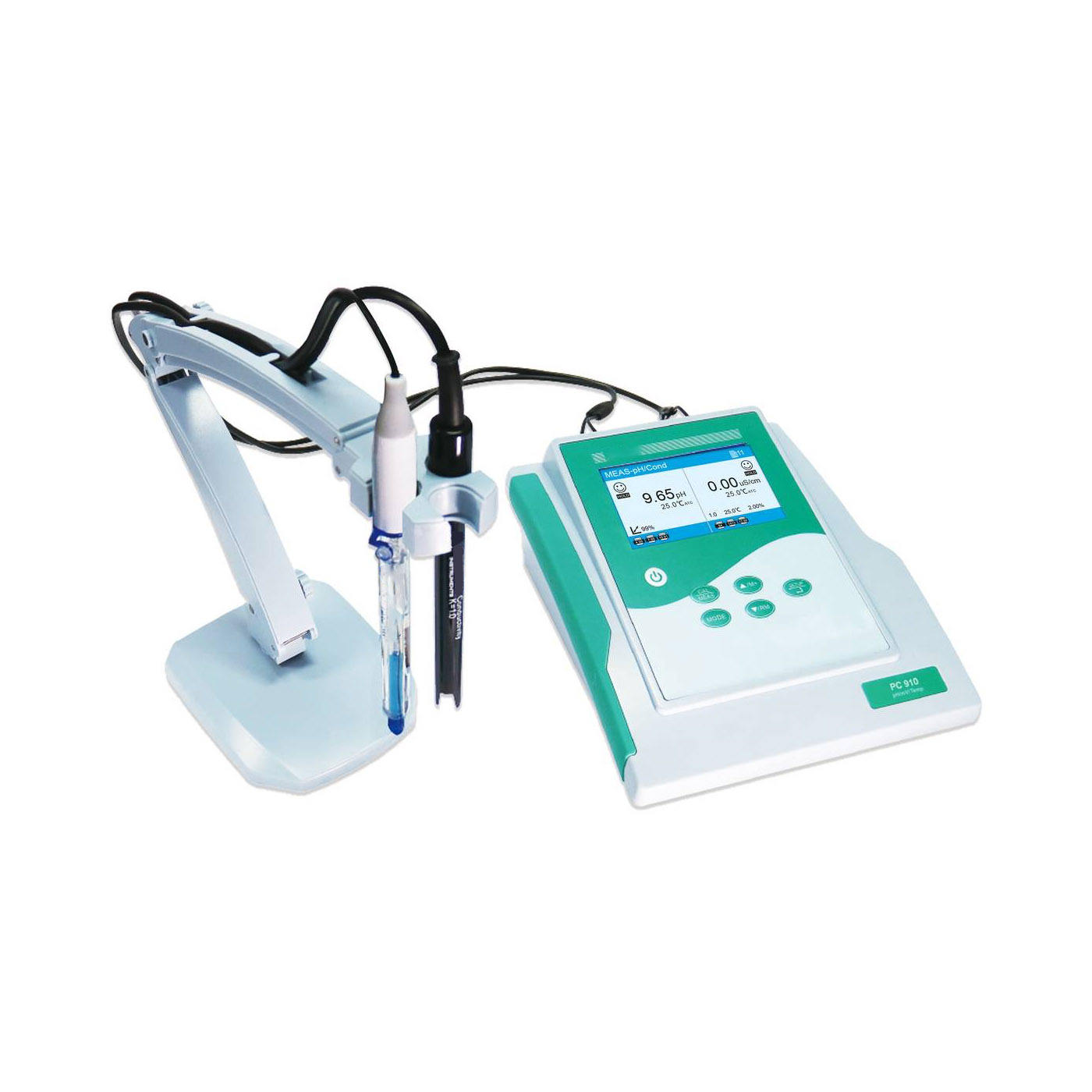

PC910 Benchtop pH/Conductivity Meter Kit

PC910 P1

Basic Features
   * Simultaneous measurement of pH and conductivity/TDS/salinity
   * Intuitive operating navigation with natural language and graphics
   * Multi-language operating system (English, German, Spanish, Mandarin)
   * Smiley icon indicates the reading stability; automatic lock mode available
   * Automatic calibration, automatic temperature compensation, self-diagnosis.
   * Manual data logger with 200 groups of storage

  pH Features
   * Swiss LabSen 211 Glass pH electrode with long-life reference system along with a separate temperature probe
   * 1 to 3 points automatic calibration with calibration instruction and self-diagnosis
   * Automatically recognizes pH standard solution (1.68, 4.00, 7.00, 10.01, 12.45). 3 series buffer standards for selection:
     USA, NIST, China series, as well as user-customized standards.
   * Automatically display electrode slope.

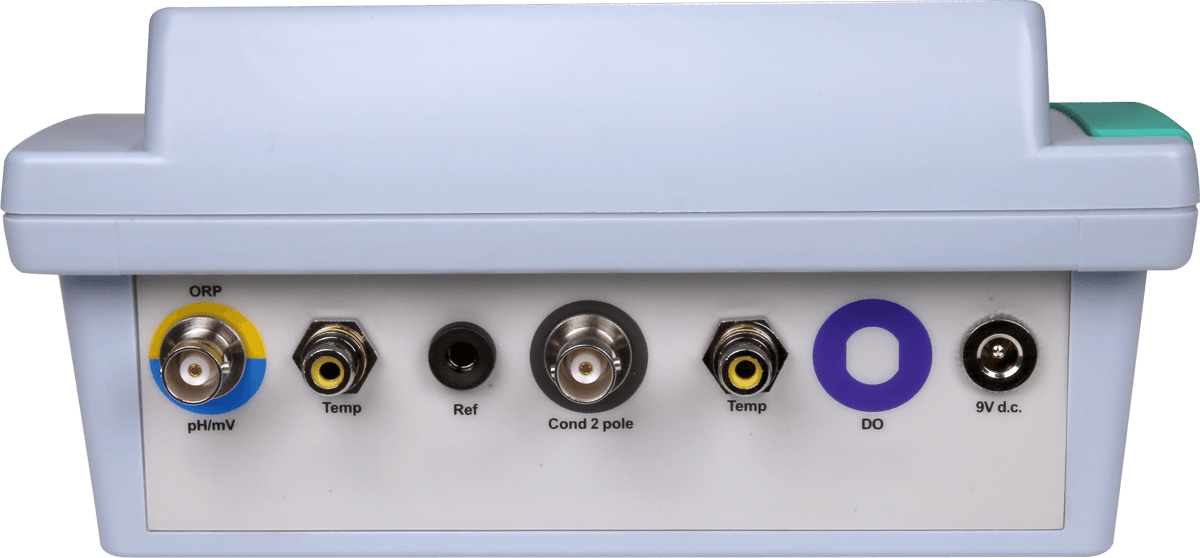

   * Standard BNC pH connector, RCA connector for a temperature probe, NTC 30KΩ thermistor

  Conductivity Features
   * The 2301T-F BPB (brush-resistant platinum black) conductivity/temp. electrode provides accurate conductivity measurement from 0 to 200mS/cm
   * 1 to 4 points automatic calibration with calibration instruction and self-diagnosis
   * Automatically recognizes conductivity standard solution (84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm).
   * Standard BNC conductivity connector, RCA connector for a temperature probe, NTC 30KΩ thermistor

Application

This product is a great combination of advanced electronics technology, sensor technology, and software design, made for general water solution applications such as water treatment, environmental monitoring, pools and spas, hydroponics, aquaculture, education, beverage making, cooling tower, etc., especially ideal for field use.

PH910 APPLICATION

Specification

Model

PC910

PC950

PC9500

Parameter

pH/mV/Cond./TDS/Sal/Res/°C(°F)







 pH

Range

-2.00 ~ 20.00 pH

-2.000 to 20.000 pH

Resolution

0.1/0.01 pH

0.1/0.01/0.001 pH

Accuracy

±0.01 pH

±0.002pH

Temp. compensation

0 to 100℃ ( 32 to212℉ ), automatic or manual

Calibration

1~3 points automatic

1 ~ 5 points automatic

Buffer

USA/NIST/CH

USA/NIST/DIN/CH/User

Other specifications

Same with table1 (Calibration remind, Calibration data checking, Measuring alarm, Stability setting)



mV

Range

±2000mV

±2000.0mV

Resolution

1mV

0.1/1mV

Accuracy

±0.1% F.S

±0.03% F.S









 Conductivity

Range

0~200.0mS/cm

0~2000mS/cm

Resolution

0.1/1μS, 0.01/0.1mS

0.01/0.1/1μS, 0.01/0.1/1mS

Accuracy

±1%F.S

±0.5%F.S

Electrode constant

0.1/1.0/10.0 cm⁻¹

Temp. compensation

0 to 50℃ ( 32 to212℉ ), automatic or manual

Criterion temperature

15~30℃

Temp. compensation coefficient

0~10.00%/℃

Calibration

1~4 points automatic

Calibration standard

USA/CH

USA/CH/User

Other specifications

Same with table2 (Calibration remind, Calibration data checking, Measuring alarm)

TDS

Ranger

0.1mg/l~100 g/l

0.1mg/l~500 g/l

TDS coefficient

0.40~1.00

Salinity

Range

0~100 ppt

0~100 ppt

Resistivity

Range

No

0~20 MΩ·cm



 Temperature

Range

0~100.0℃, 32.0~212 ℉

-10~110.0℃, 14.0~230℉

Resolution

0.1℃ ; 0.1/1℉

Accuracy

±0.5℃











Function

Display

TFT color display

Automatic hold

Yes

Yes

Yes

Date and time

No

No

Yes

Data storage

200 sets

200 sets

2000 sets

Timing storage

No

No

Yes

Self diagnosis information

Yes

Yes

Yes

USB output

No

No

Yes

GLP print

No

No

Yes ( printer optional )

External keypad

No

No

Yes

Electrode holder

602 flexible holder

606 combination test bench ( with stirrer )

IP Rating

IP54 water and dust proof

Electrode

pH:LabSen 211, Cond: 2301T-F; Temp: MP500

pH:LabSen 211, Cond:2401T-F; Temp: MP500



Other

Power

DC9V

Dimension

200×220×100mm

360×165×400mm

Weight

0.95kg

1.25kg
