Nade Lab Automatic Polarimeter WZZ-2SS

  • Zhejiang, China
  • Nade
  • WZZ-2SS
  • -120to +120Z
  • ±0.01Z
  • sodium lamp(589.44nm)
  • Digital Automatic Polarimeter
  • WZZ-2SS
  • LCD
  • 0.005°
  • 10%
  • Inspection
  • White

Product Description

Nade Lab Optical Measurement & Analysis Instrument high quality Automatic Polarimeter WZZ-2SS

Product Description

Polarimeter Detail:

Photoelectric test and automatic servomechanism control,

l LCD display

l Storage of three times results and calculation of average values.

l RS232

Specifications

l Measurement range: -45°+45°

l Minimum Reading: 0.005°

l Accuracy: ±(0.01°+ Measurement value ´ 0.05 %)

l Repeatability (Max. Deviation): £ 0.01°

lMinimum sample transmittance: 10%

l Weight (Gross): 32 kg

l Overall Dimensions: 730mm ´ 450mm ´ 370mm

WZZ-2A

WZZ-1S

WZZ-2SS

Measuring Range

-45 o to +45o

-45 o to +45o

-120 o Z to +120o

Minimum Value in Reading

±0.005 o

±0.001 o

±0.01 O Z

Accuracy

±(0.01 O+date×0.05%

±(0.01 O+date×0.05%)

±(0.03 O Z+date×0.05%)

Repeatability( )

≤0.007 O

≤0.002 O

≤0.02 O Z

Available sample transmittance

≥10%

≥1%

≥1%

Light source

sodium lamp(589.44nm)

sodium lamp(589.44nm)

sodium lamp(589.44nm)

Power source

AC 220 22V 50 1Hz 100W

AC 220 22V 50 1Hz 100W

AC 220 22V 50 1Hz 100W

Mass(N .W)

28kg

28kg

28kg

Dimention:(L. W. H) mm

720 *440 *350

720 *440 *350

720 *440 *350

Nade Lab Automatic Polarimeter WZZ-2SS Nade Lab Automatic Polarimeter WZZ-2SS Nade Lab Automatic Polarimeter WZZ-2SS Nade Lab Automatic Polarimeter WZZ-2SS Nade Lab Automatic Polarimeter WZZ-2SS

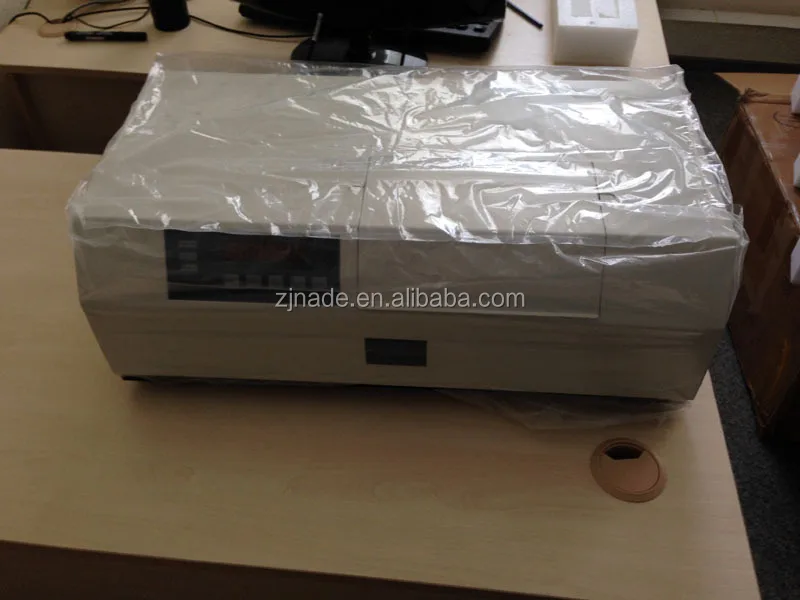

Packaging & Shipping

Nade Lab Automatic Polarimeter WZZ-2SS

Nade Lab Automatic Polarimeter WZZ-2SS

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Lab Automatic Polarimeter WZZ-2SS

Company Information

Nade Lab Automatic Polarimeter WZZ-2SS

Nade Lab Automatic Polarimeter WZZ-2SS

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
