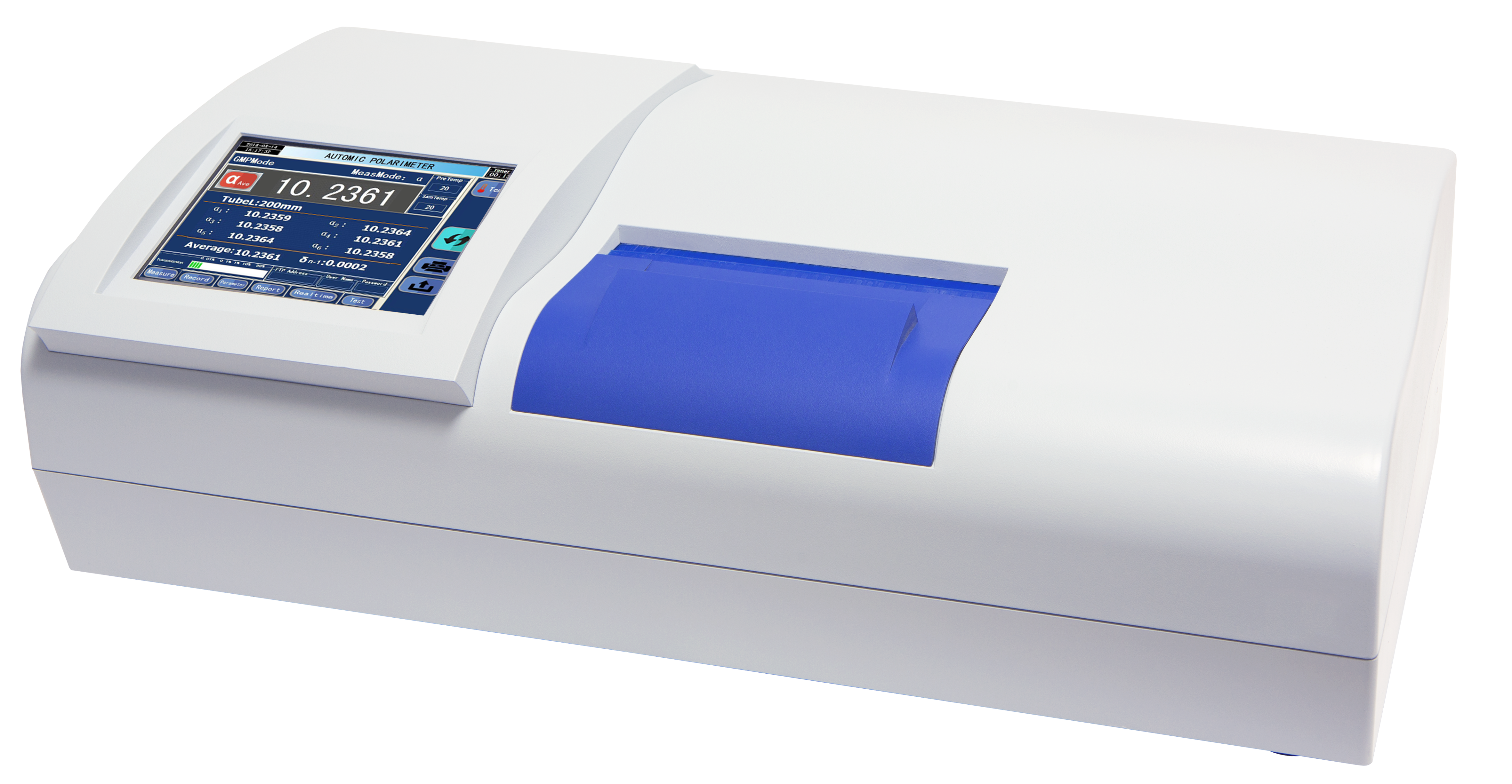

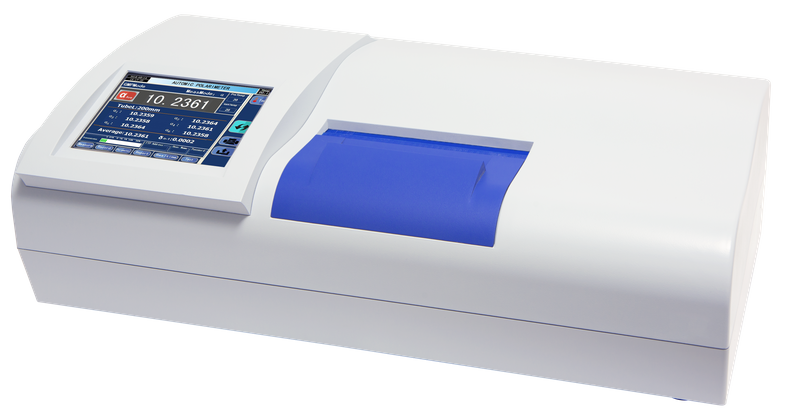

SGW-532 / SGW-531
NADE
1
Product Description
It is a precision instrument based on optical principles. By measuring the optical rotation of a sample, it can analyze and determine the concentration, content, and purity of a substance.
• High response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.
• LED light source that’s lasts over 100000 hours.
• The number of measurements can be set, and the average value can be calculated.
• Large screen LCD display.
• Equipped with multiple communication interfaces, data can be stored in real-time.
• SGW-532 has temperature control function.
Applications
- Pharmaceutical Industry (drug research and development, quality control)
- Food Industry (sugar concentration determination, food additive detection)
- Chemical and Petrochemical Fields (polymer research, petrochemical product inspection)
Specifications
Parameters/Model | SGW-532 | SGW-531 |
Measuring mode | Optical Rotation, Specific Rotation, Concentration, International Sugar Scale | |
Pre-stored measurement methods | 30 | |
Light source | LED + precision interference filters | |
Wavelength | 589nm (Sodium D Spectrum) | |
Measuring range | ±90°（OR） ±259°Z（ISS） | |
Resolution | 0.001° | 0.001° |
Accuracy | ±0.004° | ±0.006° |
Repeatability | ≤0.002° | ≤0.002° |
Min. transmission | 0.1% | 0.1% |
Response speed | 8°/S | |
Measuring time | 6 times/26s | |
Temp. control mode | Peltier(Built-in) | NO |
Temp. Control range | 10-50℃ | NO |
Temp. accuracy | ±0.2℃ | NO |
Display | 8 inch color touch LCD | |
Calibration method | Multi-point automatic calibration | |
Data storage | 10000 sets | |
Interface | USB，RS232，U disk | |
Test tubes | 200mm 100mm(regular) 100mm(temp control) | 200mm 100mm (regular) |
Optional tubes | 50mm(regular) 200mm(temp control) | 50mm(regular) |
Power supply | 220V±22V，50Hz±1Hz，200w | |
Overall dimensions | 860mm×510mm×470mm | |
Weight(Gross) | 36kg | |
Accessories
Accessories | Picutres | Model | Descriptions |
Micro Tube |
| SGW-50w | • With sample loading capacity about 0.8ml and length of 50mm, suitable for automatic polarimeter. |
Thermostatic Tube |
| SGW-100k / SGW-100kF2 | • Dedicated to polarimeters that have temperature control function. • For the length of about 100mm, the sample loading is 2.5ml; • And the non-corrosive type is optional to purchase. |
| SGW-200k / SGW-200kF2 | ||
Standard Quartz Tube |
| / | • The only calibration equipment for standard polarimeter and optical Brix; with stable performance, leas influence by the environment, and easy-to use features. • The reading of quartz tube includes ±1°, ±5°, ±10°, ±17°, ±20°, ±30°, ±34°, ±68°, for customers to choose. |
Other Type Tubes |
| SGW-50p | |
| SGW-200p | ||
| SGW-100L | ||
For more accessories’ model, pls contact us! | |||
