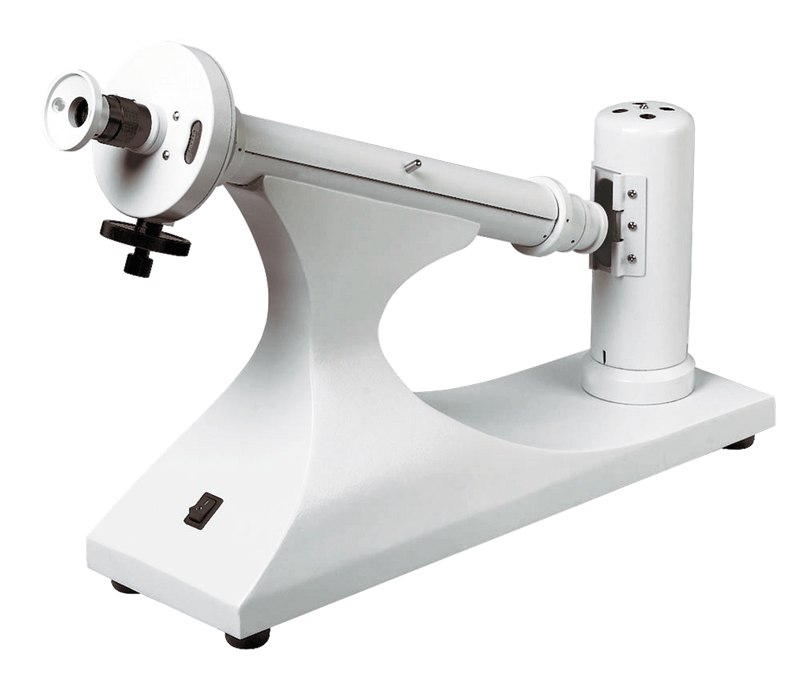

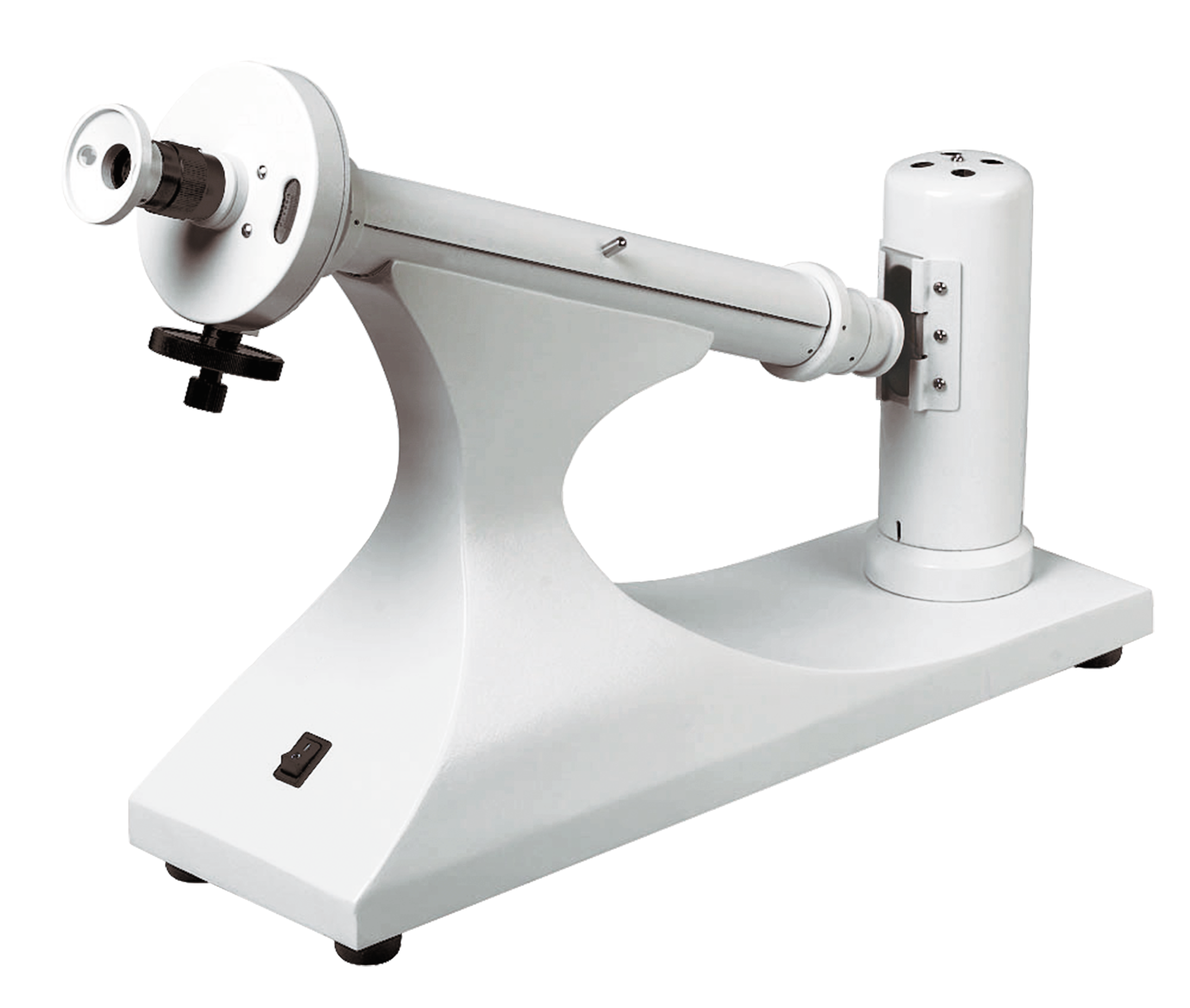

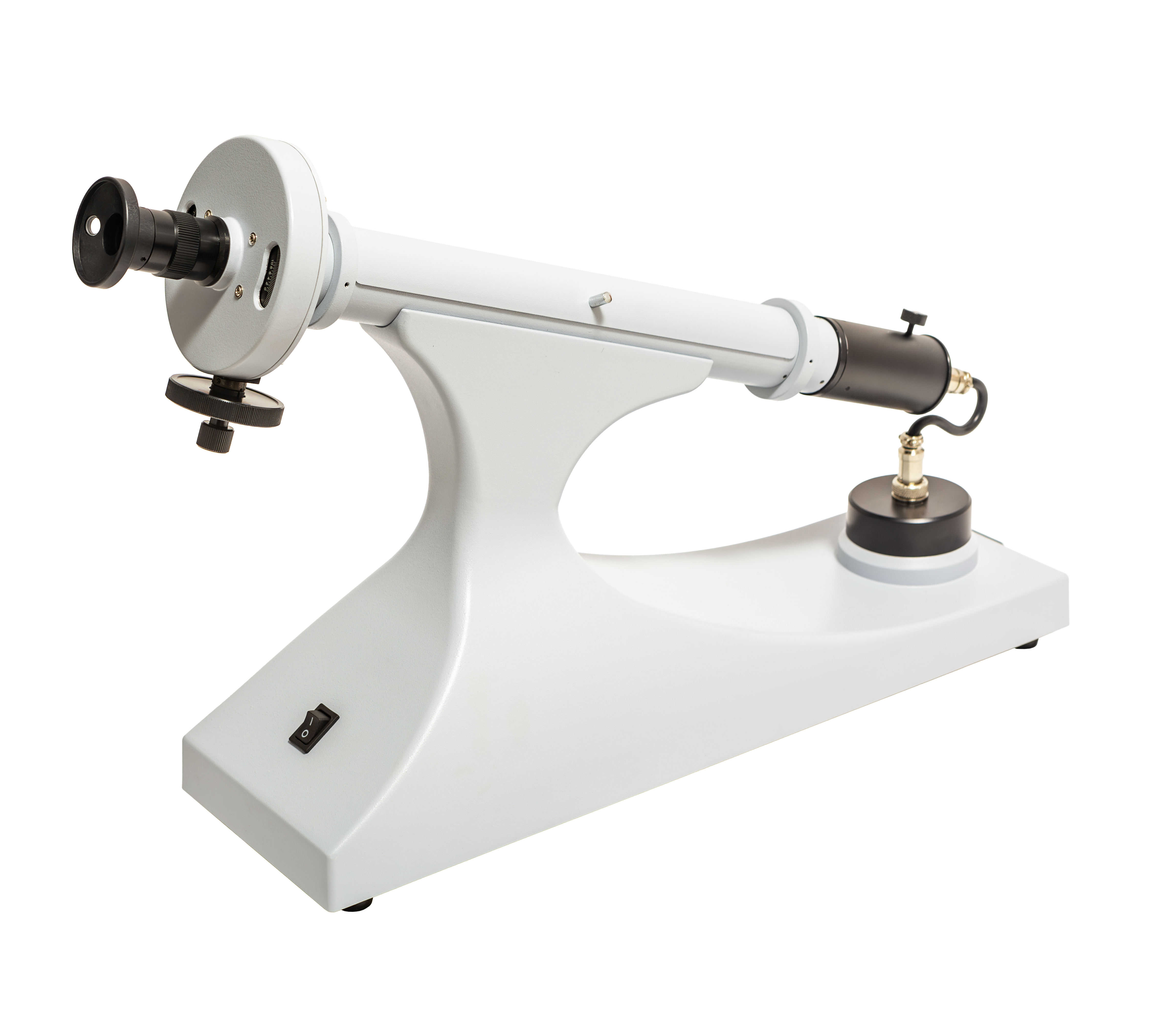

WXG-4 / WXG-4L
NADE
1
Product Description
It is a precision instrument based on optical principles. By measuring the optical rotation of a sample, it can analyze and determine the concentration, content, and purity of a substance.
• Visual aim
• Manual measure
• Easy to operate
Application
- Pharmaceutical Industry (drug research and development, quality control)
- Food Industry (sugar concentration determination, food additive detection)
- Chemical and Petrochemical Fields (polymer research, petrochemical product inspection)
Specifications
Parameters/Model | WXG-4 | WXG-4L |
Measuring range | ±180° | |
Light source | Sodium Lamp | LED + interference filter |
Wavelength | 589nm | |
Division Value | 1° | |
Dial Venire Value in Reading | 0.05° | |
Magnifying Factor of the magnifier | 4X | |
Test Tube | 100mm / 200mm (regular) | |
Power supply | 220V±22V , 50Hz±1Hz，20w | 220V±22V , 50Hz±1Hz，1w |
Overall dimensions | 600mm×220mm×400mm | |
Weight (Gross) | 7kg | 4.5kg |
Accessories
Accessories | Picutres | Model | Descriptions |
Micro Tube |
| SGW-50w | • With sample loading capacity about 0.8ml and length of 50mm, suitable for automatic polarimeter. |
Thermostatic Tube |
| SGW-100k / SGW-100kF2 | • Dedicated to polarimeters that have temperature control function. • For the length of about 100mm, the sample loading is 2.5ml; • And the non-corrosive type is optional to purchase. |
| SGW-200k / SGW-200kF2 | ||
Standard Quartz Tube |
| / | • The only calibration equipment for standard polarimeter and optical Brix; with stable performance, leas influence by the environment, and easy-to use features. • The reading of quartz tube includes ±1°, ±5°, ±10°, ±17°, ±20°, ±30°, ±34°, ±68°, for customers to choose. |
Other Type Tubes |
| SGW-50p | |
| SGW-200p | ||
| SGW-100L | ||
For more accessories’ model, pls contact us! | |||
