1 year
Laboratory Thermostatic Devices
other
Nade
DKB-450A
Zhejiang, China
26L
Platinum gold resistor PT100
water baths
+5~65 Ambient temperature
304 stainless steels
DKB-450A
AC 220V/110V 50Hz/60Hz
Water Bath
1050W
Product Description

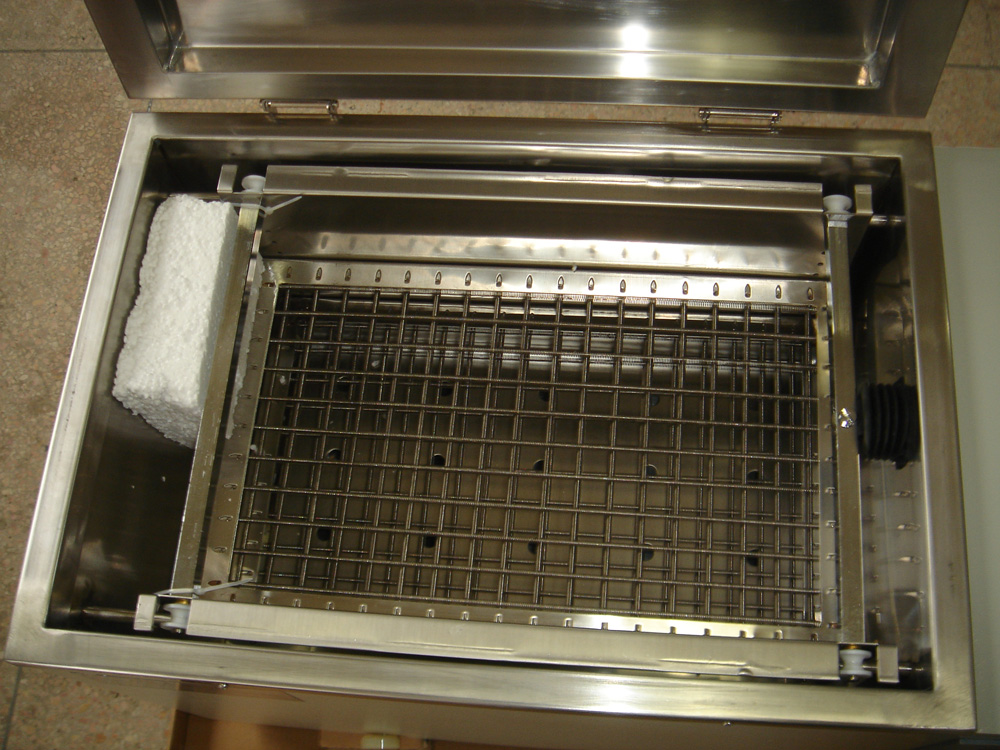

Nade laboratory equipment Electro-thermostatic Water Bath DKB-450A DKB-450A 26L +5~65C
Electro-thermostatic Water Cabinet detail:
Application
Provided for precise and constant temperature and auxiliary heating in colleges industrial and mining enterprises and scientific research department.
Feature
1.Working chamber and top cover is made of stainless steel. With a beautiful and novel appearance.
2.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
3.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
4.DKB-450A, DKB-600A is equipped with electromagnetic pump. Water flow is circulated within the water bath. If equipped with 2pcs water tube connector, using rubber tube to connect for outer cycle, can output constant temperature water supply.
Specification
|
| DK-420 | DK-450B | DK-600B | DKB-450A | DKB-600A | ||
| Chamber volume | 16 | 26 | 31 | 26 | 31 | ||
| Environmental condition | Temperature 5~30 | ||||||
| Maximum relative humidity 80% | |||||||
| Altitude up to 2000m | |||||||
| Power | AC220V,50Hz | ||||||
| Range | +5~65 | +5~99 | +5~65 | ||||
| Temperature | Accuracy | ±1 at 37 | |||||
| Pulse degree | ±0.3 | ±0.1 | |||||
| Uniformity | ±0.5 at 37 | ±0.2 at 37 | |||||
| Controller | The PID microprocessor controls, touch type, numeral manifestation | ||||||
| Sensor | Platinum gold resistor PT100 | ||||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||||
| Material | Internal | 304 stainless steels | |||||
| External | Iron 08F | ||||||
| Dimensions | Internal | 420×240×160 | 450×300×190 | 600×300×170 | 450×300×190 | 600×300×170 | |
| External | 560×280×250 | 600×340×300 | 750×340×280 | 600×340×300 | 750×340×280 | ||
| Net weight | 11.5KG | 15.5KG | 18.5KG | 13KG | 18.5KG | ||
| Consumption power | 700W | 1500W | 2000W | 1100W | 1250W | ||
All the temperature is centigrade
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
