Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

  • 1 year, 1 Year

  • Laboratory Thermostatic Devices

  • other

  • NADE-heated water bath

  • DK-S24

  • Zhejiang, China

  • 16L

  • +5 to 99 centigrade

  • AC220V,50Hz

  • water bath

  • Platinum gold resistor PT100

  • Wait on time,wait off time(Max.99hr,Min.1min)

  • 304 stainless steels

  • DK-S24

  • Water Bath

Product Description

Nade Lab Electrical Equipment CE Certificate Electric Constant Temperature Water Bath DK-S24 16L +5~99C

Product Description

Heated water bath Detail:

1.Working chamber and top cover is made of stainless steel. With a beautiful and novel appearance.
2.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
3.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.

Specification

Model

DK-S12

DK-S14

DK-S24

DK-S26

DK-S28

Chamber volume(L)

8

16

16

24

32

Environmental condition

Temperature 5~30℃

Maximum relative humidity 80%

Altitude up to 2000m

Power

AC220V,50Hz

Range

Ambient temperature +5℃~ 100℃

Temperature

Accuracy

± 0.1℃ at 37℃

Fluctuation

± 0.3℃

Uniformity

± 0.5℃ at 37℃

Controller

The PID microprocessor controls, touch type, numeral manifestation

Sensor

Platinum gold resistor PT100

Timer

Wait on time,wait off time(Max.99hr,Min.1min)

Material

Internal

304 stainless steels

External

08F

Dimension(mm)

Internal

line x hole

1x2

1x4

2x4

2x6

2x8

External

440×190

×220

740×190

×220

440×340

×220

590×340

×220

740×340

×220

Net weight

7.5KG

11.5KG

11KG

12.5KG

15.5KG

Consumption power

550W

1000W

1000W

1500W

2000W

If you want know about other models,pls click the model for more details.

Certifications

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

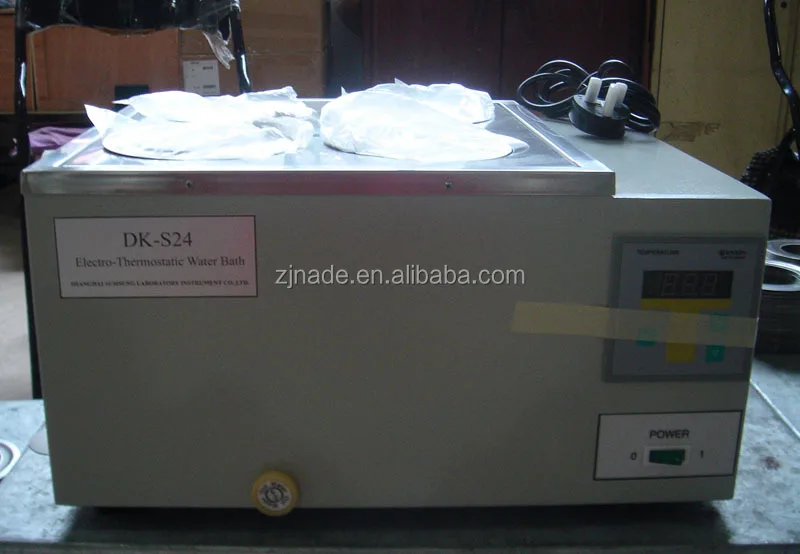

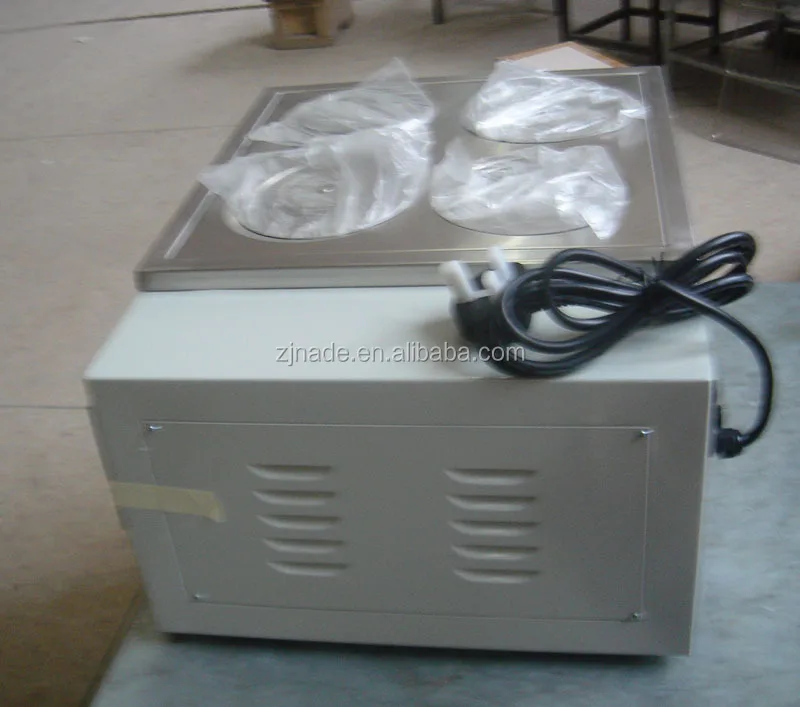

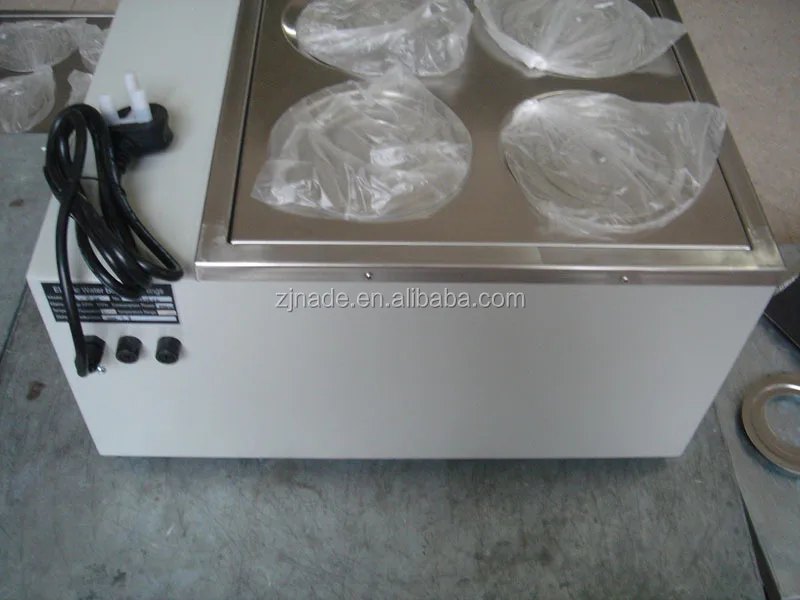

Real photos show

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

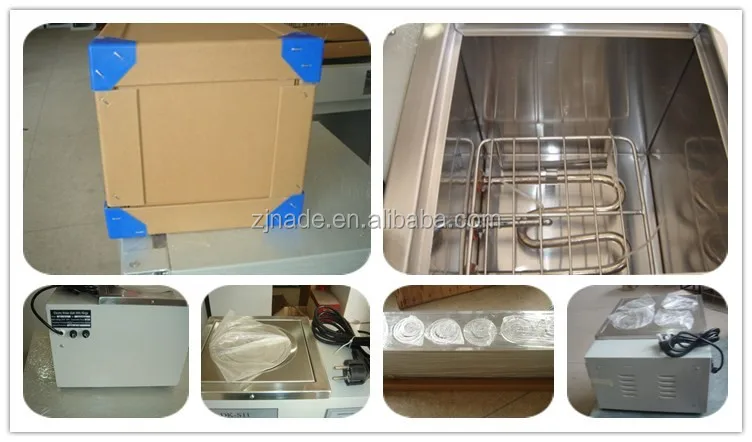

Packaging & Shipping

Our Packaging Details:

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

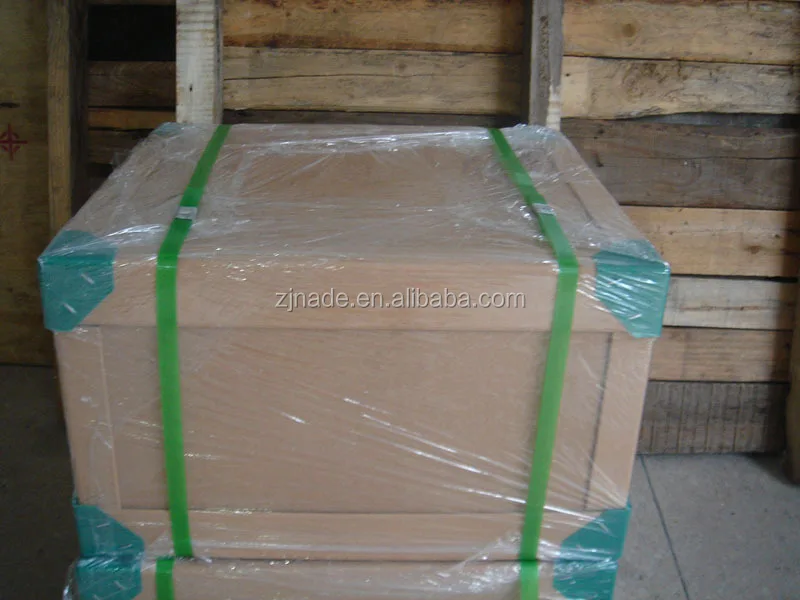

Our Shipping

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

Company Information

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

Our Services

Nade CE Certificate DK-S24 16L +5~99C Electric Lab Constant Temperature Water Bath

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
