1 year
Laboratory Thermostatic Devices
other
NADE
DRP-9602
Zhejiang, China
+5°C~65°C
600L
±0.1°C at 37°C
PT100(Platinum gold resistor PT100)
304mirror noodles stainless steels
Electro-Thermal Incubator
(304mirror noodles stainless steels)
2/4
AC 220V/110V 50Hz/60Hz
Product Description

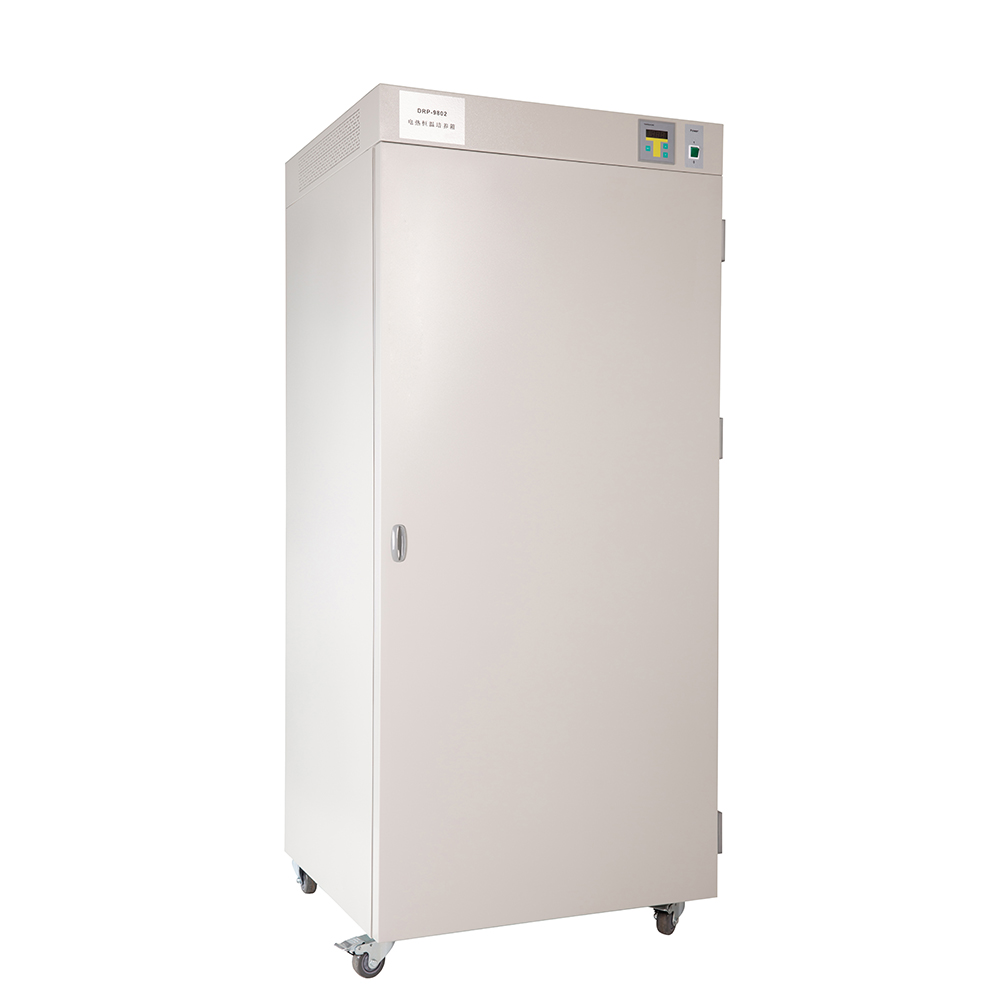

Nade Lab instrument CE Certificate Electro-Thermal Incubator DRP-9602
Purpose
Provided as a necessary equipment for scientific research to colleges as well as biological, agricultural and scientific reseach departments for storage of mould and biology cultivation.
Feature
1.Working chamber is made of high quality corrosion-resistant stainless steel. The shell is made of high quality steel plate, surface processing with static spraying plastic.Dual door. Inner door is made of toughened glass. The shelf is made of stainless steel . It is easy and convenient to use. With a beautiful and novel appearance.
2.Reasonable designed air channel structure, breeze airflow circulating designed, to assure the temperature within the working chamber even.
3.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
4.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
5.Independent alarm system for temperature-limiting ensures experiments run safety and no accident would happen. (Option)
| Model | DRP-9032 | DRP-9052 | DRP-9082 | DRP-9162 | DRP-9272 | DRP-9602 | DRP-9802 | |
| Chamber volume(L) | 30 | 50 | 80 | 160 | 270 | 600 | 800 | |
| Environmental condition | Temperature5~30℃ | |||||||
| Maximum relative humidity 80% | ||||||||
| Altitude up to 2000m | ||||||||
| Power | AC220V,50Hz | |||||||
| Range | Ambient temperature +5℃~65℃ | |||||||
| Temperature | Accuracy | ±0.1℃ at 37℃ | ||||||
| Fluctuation | ±0.3℃ | ±0.5℃ | ||||||
| Uniformity | ±0.5℃ at 37℃ | ±1℃ at 37℃ | ||||||
| Controller | PID microprocessor controls, touch type, numeral manifestation | |||||||
| Sensor | Platinum gold resistor PT100 | |||||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | |||||||
| Material | Internal | 304 stainless steels | ||||||
| External | 08F | |||||||
| Dimension (mm) | Internal | 300×300 ×350 | 350×350 ×410 | 400×400 ×500 | 500×500 ×650 | 600×600 ×750 | 610×610 ×1600 | 710×710 ×1600 |
| External | 420×390 ×625 | 470×450 ×685 | 520×490 ×775 | 630×600 ×945 | 720×690 ×1055 | 740×720 ×1950 | 840×820 ×1950 | |
| Net weight | 28KG | 33KG | 42KG | 63KG | 85KG | 173KG | 193KG | |
| Consumption power | ≤155W | ≤210W | ≤280W | ≤380W | ≤570W | ≤830W | ≤930W | |
| Shelf Dimension(mm) | 292×278 | 345×328 | 395×378 | 495×478 | 595×578 | 602×588 | 702×688 | |
| Shelve(Supply/most) | 2/4 | 2/4 | 2/4 | 2/4 | 2/4 | 3/8 | 3/8 | |
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
