1 year
Laboratory Thermostatic Devices
other
Nade
DK-S12
Zhejiang, China
8L
+5 to 99 centigrade
AC220V,50Hz
d0.3
Wait on time,wait off time(Max.99hr,Min.1min)
Laboratory Thermostatic Device
DK-S12
AC 220V/110V 50Hz/60Hz
Water Bath
Product Description

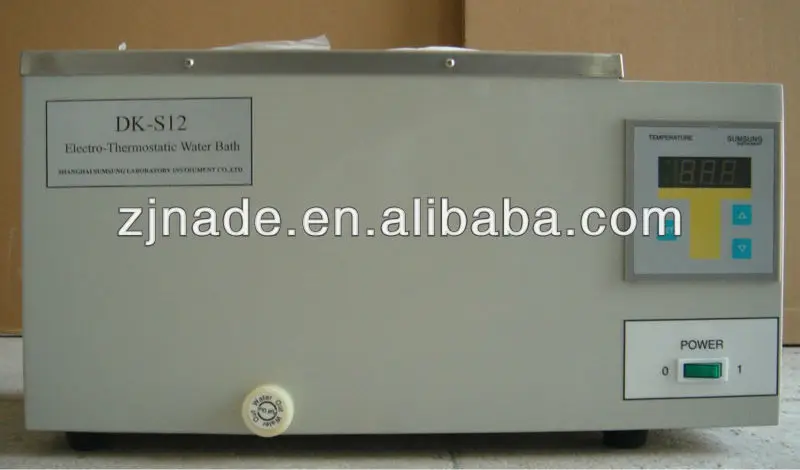

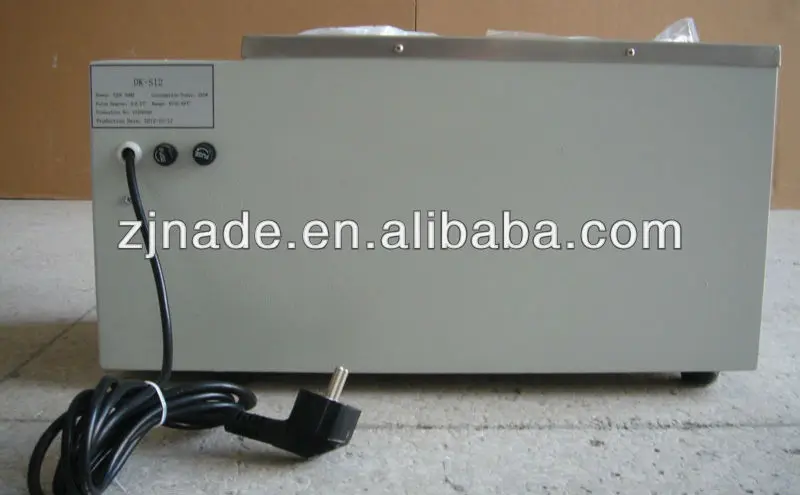

Nade Laboratory Thermostatic Device Ce Certificate Lab Circulating Electric Water Bath Rings-DK-S12 8L +5~99C
Heated water bath Detail:
1.Working chamber and top cover is made of stainless steel. With a beautiful and novel appearance.
2.Temperature controllor adopt high speed, high performance CPU handling chip. High sensitive, high precision platinum resistance sensor. Have fixed programme control function of “Resume By Alarm”, “ Close By Alarm”, “Working By Alarm”. Timing time is 0-99Hours.
3.Temperature controllor is with sensor malfunction alarm, low/high temperature deviation alarm. Over-temperature alarm. Parameters memory. Temperature display emendation. Self-diagnosing dynamic control technology.
| Model | DK-S12 | DK-S14 | DK-S24 | DK-S26 | DK-S28 | ||||||
| Chamber volume(L) | 8 | 16 | 16 | 24 | 32 | ||||||
| Environmental condition | Temperature 5~30℃ | ||||||||||
| Maximum relative humidity 80% | |||||||||||
| Altitude up to 2000m | |||||||||||
| Power | AC220V,50Hz | ||||||||||
| Range | Ambient temperature +5℃~ 100℃ | ||||||||||
| Temperature | Accuracy | ± 0.1℃ at 37℃ | |||||||||
| Fluctuation | ± 0.3℃ | ||||||||||
| Uniformity | ± 0.5℃ at 37℃ | ||||||||||
| Controller | The PID microprocessor controls, touch type, numeral manifestation | ||||||||||
| Sensor | Platinum gold resistor PT100 | ||||||||||
| Timer | Wait on time,wait off time(Max.99hr,Min.1min) | ||||||||||
| Material | Internal | 304 stainless steels | |||||||||
| External | 08F | ||||||||||
| Dimension(mm) | Internal line x hole | 1x2 | 1x4 | 2x4 | 2x6 | 2x8 | |||||
| External | 440×190 ×220 | 740×190 ×220 | 440×340 ×220 | 590×340 ×220 | 740×340 ×220 | ||||||
| Net weight | 7.5KG | 11.5KG | 11KG | 12.5KG | 15.5KG | ||||||
| Consumption power | 550W | 1000W | 1000W | 1500W | 2000W | ||||||
Pls click the following picture for more details
DK-S14 DK-S26
Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
