NDHD-16A
NADE
NDHD-16A
1
1 year
China
Product Description
Please send your request details to us by clicking "send" at the bottom!
Specification
Name | NADE Moisture analyzer | ||||
Model | NDHA-10A | NDHA-20A | NDHD-16 | NDHD-16A | NDHD-20A |
Measuring Range(g) | 50 | 50 | 110 | 110 | 110g |
Readability(g) | 0.005 | 0.001 | 0.005 | 0.002 | 0.001g |
Operating Temp.Range | 5°C---35°C | ||||

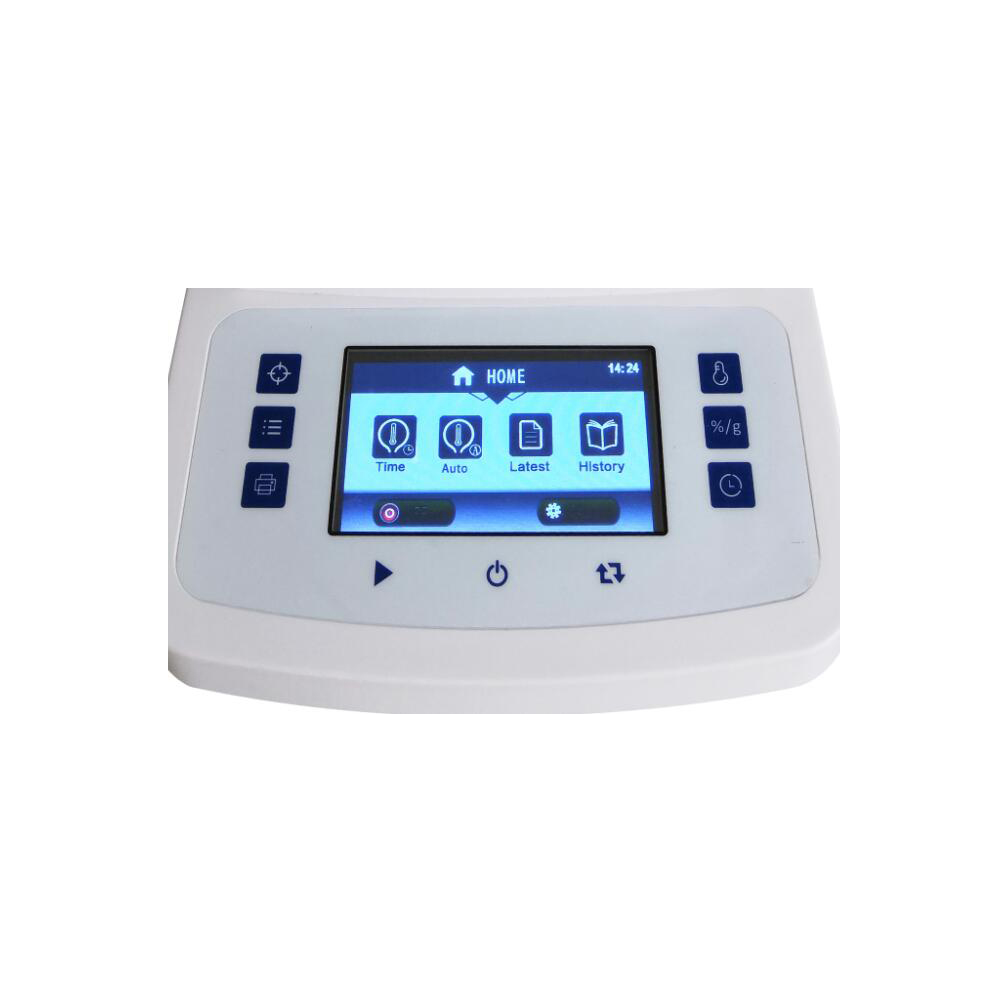

Display | Touch LCD screen | ||||
Calibration | External | ||||

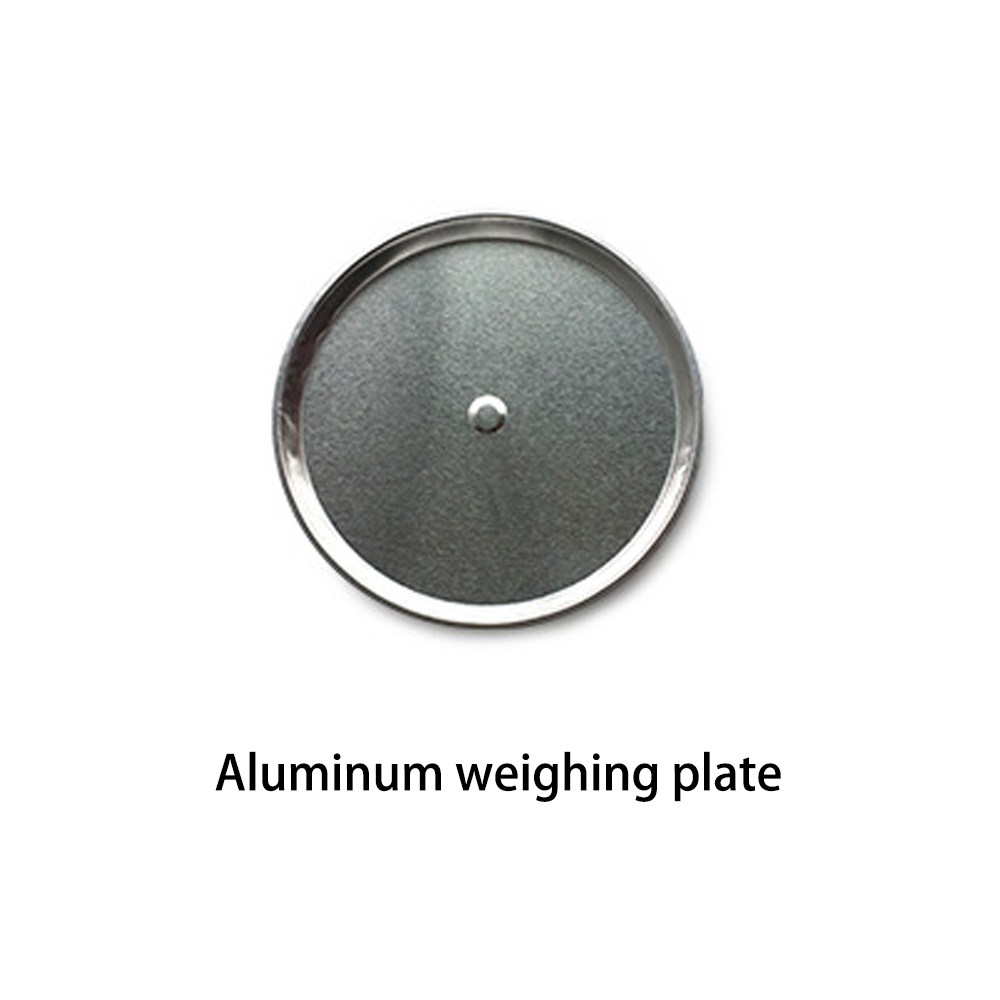

Pan size(mm) | Φ90 | ||||
Dimensions(L*W*H) | 180*380*200mm | ||||
Weight(Kg) | 5.8 | ||||

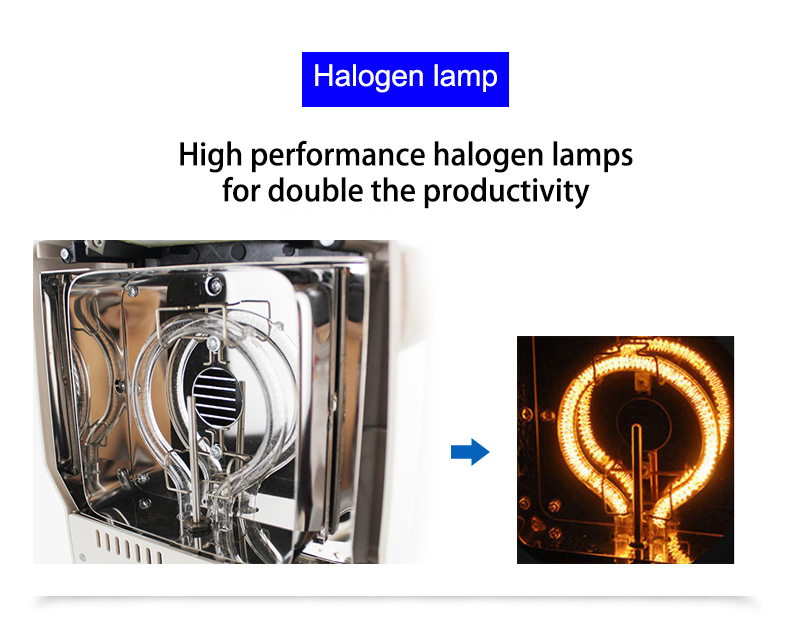

Heat soure | Halogen lamp | ||||
Temp.sensor | PT-100 | ||||
Temp.range | 40°C---199°C | ||||
Temp.step | 1°C | ||||
Moisture range | 0.00%---100% | ||||
Moisture readability | 0.02% | 0.01% | 0.02% | 0.01% | 0.01% |
Dry residual range | 100.00%---0.00% | ||||
Dry residual readability | 0.02% | 0.01% | 0.02% | 0.01% | 0.01% |
ATRO | 100%---999% | ||||
ATRO | 0%---999% | ||||
Temperature setting | 40°C---199°Cby1°C step | ||||
Time setting | 1---99min by 1s step | ||||
Autostop | 0.1%---9.9%within 1 min | ||||
Nuber of storage | 6 | ||||
Heater | 220V+15%50Hz 115V+15% 400W | ||||

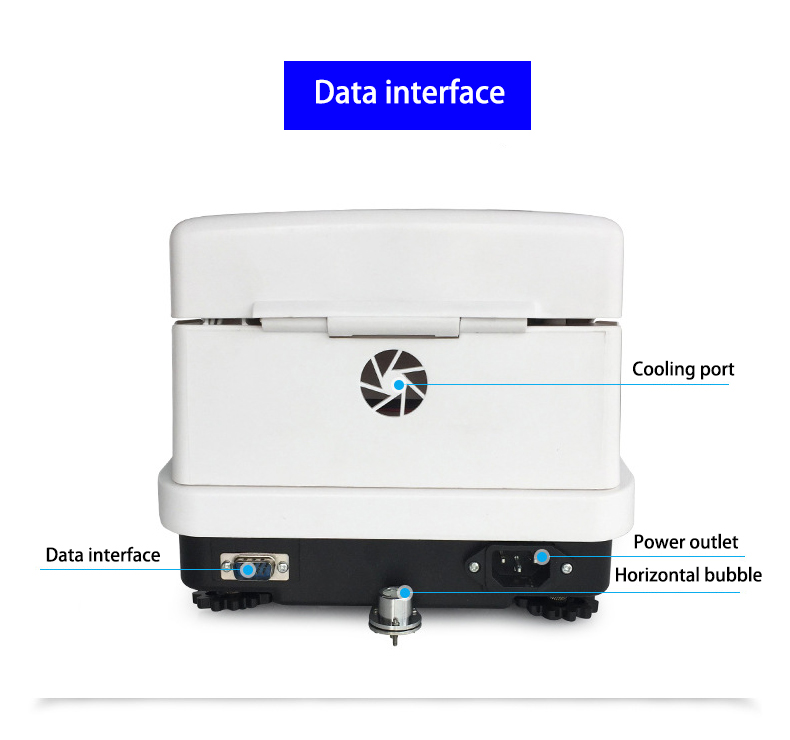

Communication interface | Rs232 | ||||
Balance | External power supply Output: 9V Lnput: 220V+15%50Hz | ||||

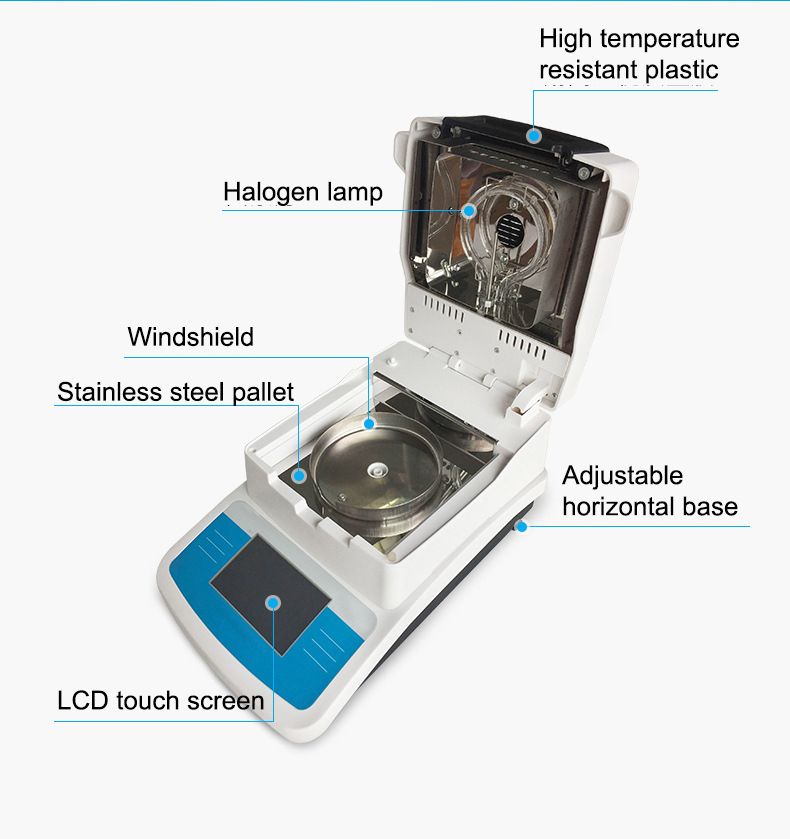

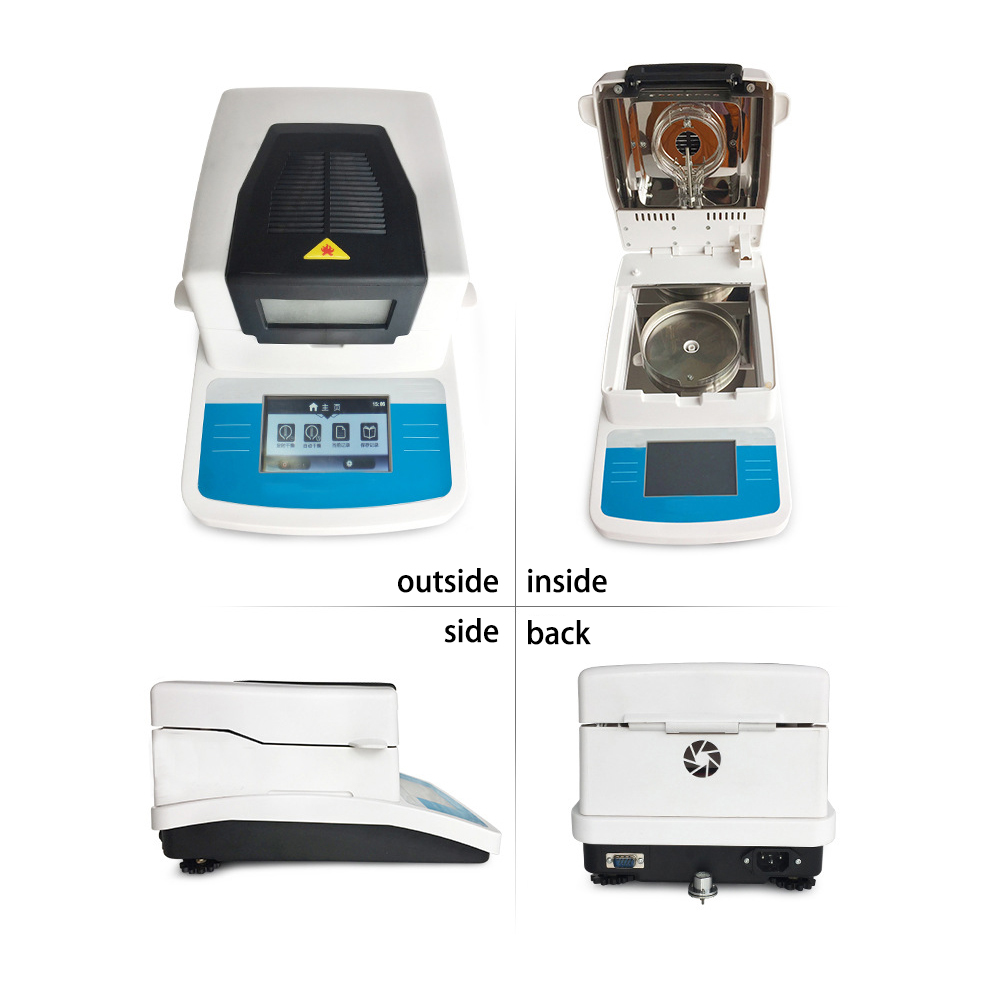

Product Details
Optional product:

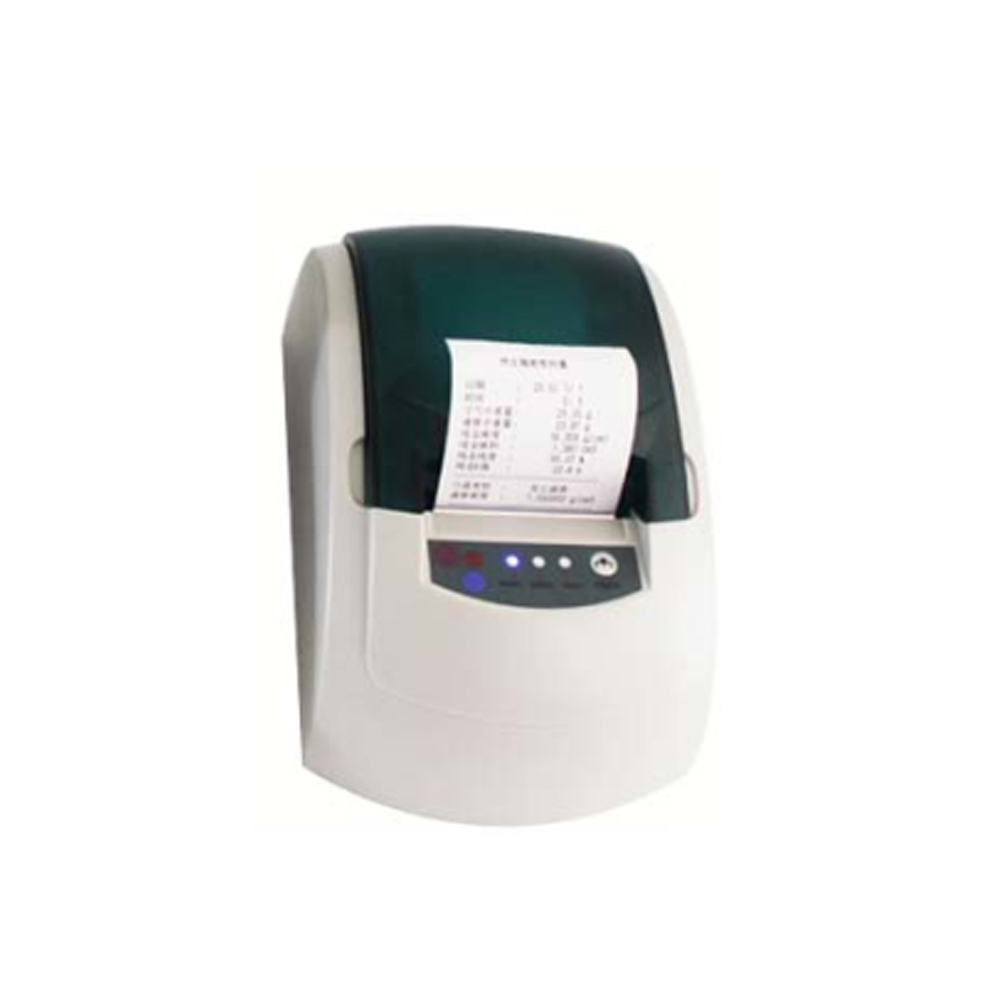

Dedicated printer

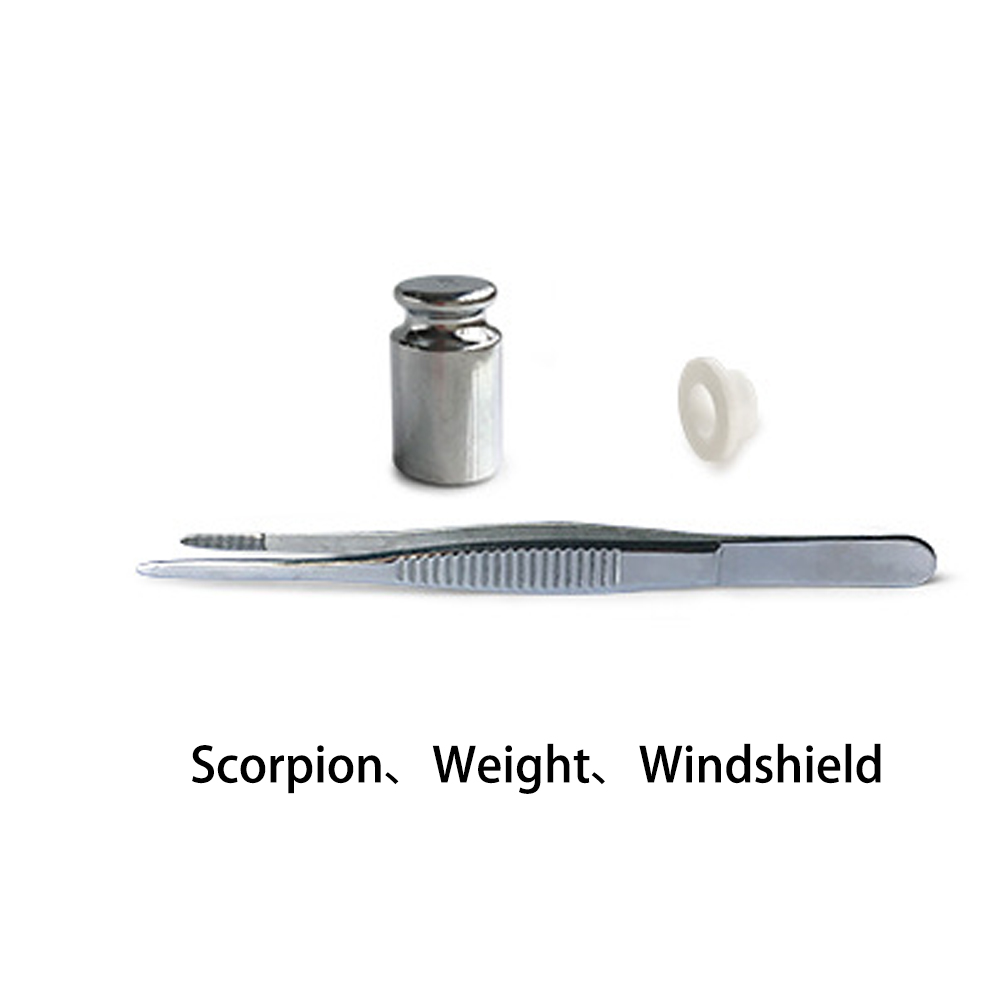

Please contact us if you want to buy accessories.
