NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Inquire

  • 1 year

  • moisture meter

  • Zhejiang, China

  • NADE

  • TZS series

  • 0-100%

  • -40-100℃;

  • -40-80℃

  • 0-14pH

  • 0~23ms/cm

  • 8.4V lithium battery

Product Description

Product Description

Model

Function

TZS-1K

Direct measure soil moisture content, and save in handset

TZS-2X

Measure soil moisture content, soil temperature, and save in handset

TZS-3X

Adding measure atmospheric temperature function based on TZS-2X

TZS-5X

Adding measure atmospheric moisture, dew point based on TZS-3X

TZS-PH-IG

Detect soil pH

TZS-PHW-4G

Soil moisture,temperature,salinity, and pH recorder with GPS positioning.

TZS-EC-I

Detect soil salinity

TZS-ECW

Detect soil moisture content temperature, and salinity same time

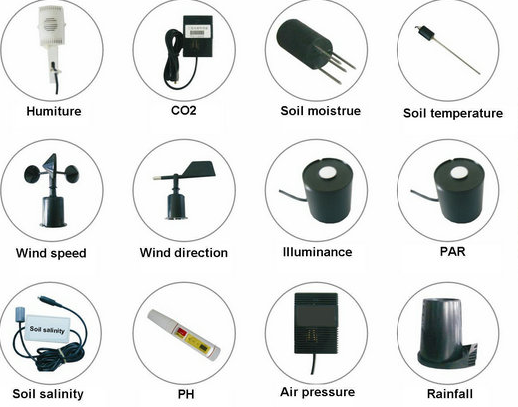

Handheld Multi-parameter Soil Meter can acquire different parameters with different sensors and the tested parameter would be air temperature, humidity, light intensity, PAR radiation, wind direction and speed, Rainfall, CO2 concentration, soil temperature, soil moisture, soil PH and Soil salinity. It is widely used in facilities agriculture, forestry, horticulture, animal husbandry and other fields, and fulfills to carry out conduct of automatically monitor, automatic control and intelligent management to the facilities for comprehensive agricultural ecological information.

Feature

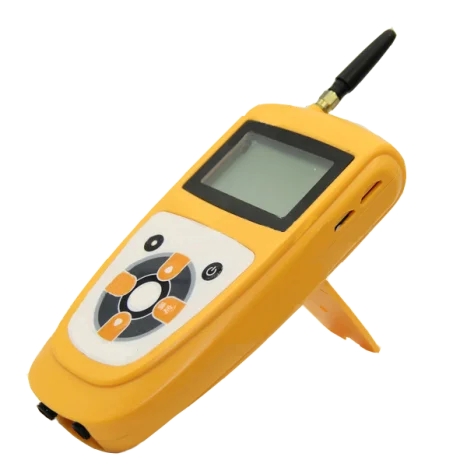

Handset:

  • Small and exquisite, easy to carry and LCD display;
  • Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
  • Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
  • Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
  • Data can be read on handset and also import to PC.
  • Power-off memory function: data already saved in SD card won’t lose when lose power.
  • Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
  • Auto detection: when sensors connect to handset, you can search different sensor.
  • Synchronous detection: 32 channels to detect same time as you combine.
  • RS485 wire communication, sensor communication cables could reach about 100 meters.
  • Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.

Software:

  • Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
  • Coloring the overrun area function, make it visual display.
  • Save the data in EXCEL format as a copy.
  • Be able to view period of parameter or graph, and can be printed.
  • All curvilinear coordinates can be set and move, which make analysis easier.
Specification

Handset Technical Parameters

Storage Capacity

Almost up to 30,000 groups in handset, and standard equipped with 4G Micro SD.Data-collection interval: 5min~99hour

Working Power Supply

8.4V lithium battery

Working Current

Stand-by power consumption 10mA, working power consumption according to the configuration.

Models

Product Photo

Sensors

Parameter

TZS-1K

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil Moisture

Range: 0-100%

Accuracy: ±3%

Resolution: 0.1%

TZS-2X

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil Moisture

Soil Temperature

Soil moisture:

Range:0-100%; Accuracy:±3% Resolution:0.1%

Soil temperature:

Range:-40-100℃; Accuracy:±3% Resolution:0.1℃

TZS-3X

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil Temperature

Soil Moisture

Air Temperature

Soil Moisture:

Range:0-100%; Accuracy:±3%; Resolution:0.1%

Soil Temperature:

Range:-40-100℃; Accuracy:±3%; Resolution:0.1℃

Air Temperature:

Range:-40-80℃; Accuracy:±0.4℃; Resolution:0.1℃

TZS-5X

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil Moisture

Soil Temperature

Air Temperature

Air humidity

Dew point

Soil Moisture:

Range:0-100%; Accuracy:±3%; Resolution:0.1%

Soil Temperature:

Range:-40-100℃; Accuracy:±3%; Resolution:0.1℃

Dew Point:

Range:-40-120℃; Accuracy:±0.4℃; Resolution:0.1℃

Air Temperature:

Range:-40-80℃; Accuracy:±0.4℃; Resolution:0.1℃

Air Humidity:

Range:0.1%RH; Accuracy:0-100%RH; Resolution:±3%RH

TZS-PH-IG

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil pH

Range: 0-14

Accuracy: ±0.5

TZS-PHW-4G

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil moisture

Soil temperature

Salinity

Soil pH

Soil Moisture:

Range:0-100%; Accuracy:±3%; Resolution:0.1%

Soil Temperature:

Range:-40-100℃; Accuracy:±3%; Resolution:0.1℃

Salinity:

Range: 0~23ms/cm;

Accuracy:±2%; Resolution:0.01mS/cm;Temperature compensation: 0-50 ℃

Soil pH

Range: 0-14; Accuracy: ±0.5

TZS-EC-I

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Salinity

Range: 0~23ms/cm;

Accuracy:±2%; Resolution:0.01mS/cm;Temperature compensation: 0-50 ℃

TZS-ECW

 NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Soil moisture

Soil temperature

Salinity

Soil Moisture:

Range:0-100%;Accuracy:±3%; Resolution:0.1%

Soil Temperature:

Range:-40-100℃;Accuracy:±3%; Resolution:0.1℃

Salinity:

Range: 0~23ms/cm; Accuracy:±2%; Resolution:0.01mS/cm;Temperature compensation: 0-50 ℃

Certifications

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Packaging & Shipping

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

Our Services

NADE Potable Digital TZS series Multi-parameter Soil Meter for moisture content, pH, salinity, temperature

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
