Zhejiang, China
NADE
NDHA-20A
optional
Touch LCD screen
50g
0.001g
90mm
0.01%
0.01%
40°C---199°Cby1°C step
1---99min by 1s step
0.1%---9.9%within 1 min
5°C---35°C
220V+15% 50Hz 115V+15% 400W
Product Description

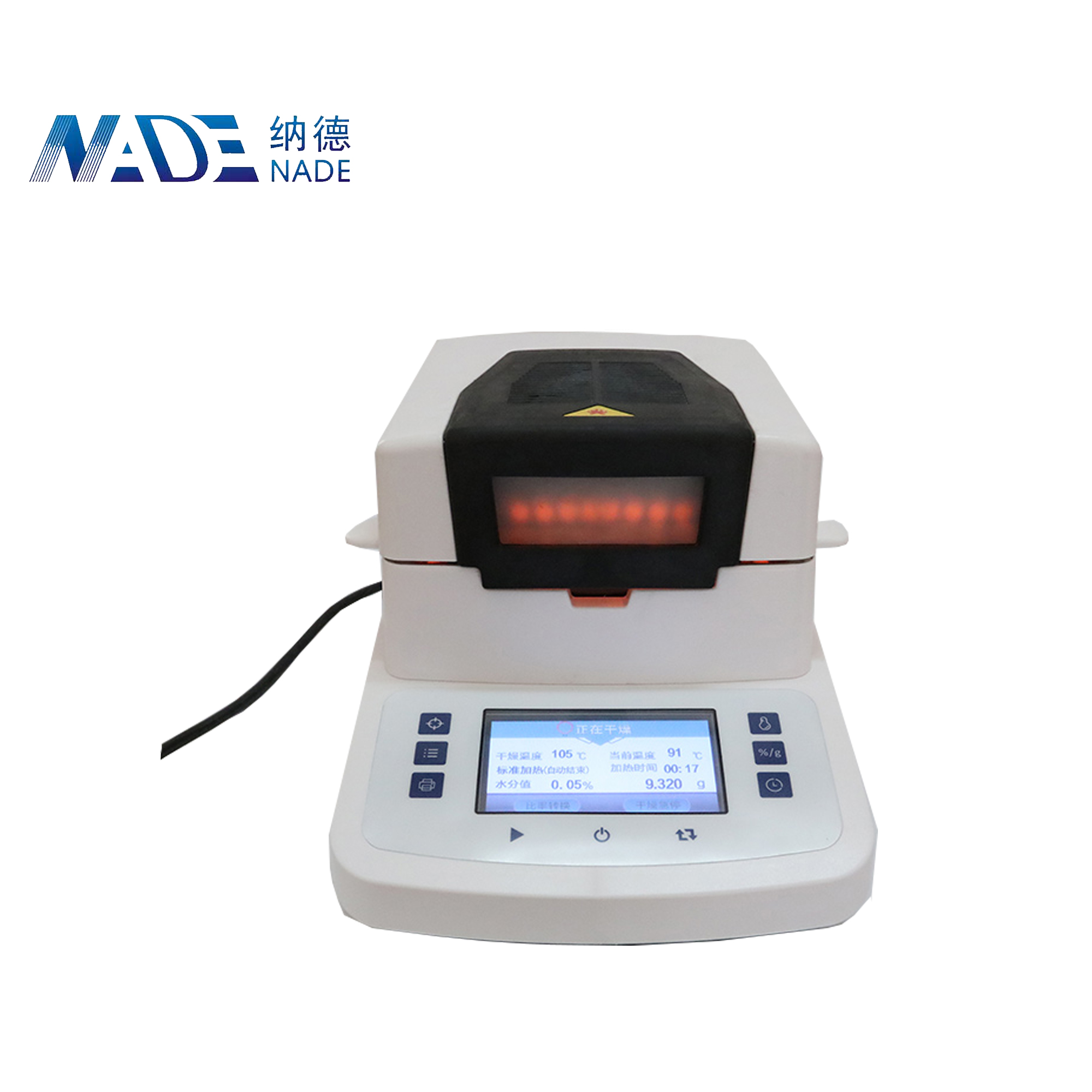

| Name | NADE Moisture analyzer | ||||
| Model | NDHA-10A | NDHA-20A | NDHD-16 | NDHD-16A | NDHD-20A |
| Measuring Range(g) | 50 | 50 | 110 | 110 | 110g |
| Readability(g) | 0.005 | 0.001 | 0.005 | 0.002 | 0.001g |
| Operating Temp.Range | 5°C---35°C | ||||
| Display | Touch LCD screen | ||||
| Calibration | External | ||||
| Pan size(mm) | Φ90 | ||||
| Dimensions(L*W*H) | 180*380*200mm | ||||
| Weight(Kg) | 5.8 | ||||
| Heat soure | Halogen lamp | ||||
| Temp.sensor | PT-100 | ||||
| Temp.range | 40°C---199°C | ||||
| Temp.step | 1°C | ||||
| Moisture range | 0.00%---100% | ||||
| Moisture readability | 0.02% | 0.01% | 0.02% | 0.01% | 0.01% |
| Dry residual range | 100.00%---0.00% | ||||
| Dry residual readability | 0.02% | 0.01% | 0.02% | 0.01% | 0.01% |
| ATRO | 100%---999% | ||||
| ATRO | 0%---999% | ||||
| Temperature setting | 40°C---199°Cby1°C step | ||||
| Time setting | 1---99min by 1s step | ||||
| Autostop | 0.1%---9.9%within 1 min | ||||
| Nuber of storage | 6 | ||||
| Heater | 220V+15%50Hz 115V+15% 400W | ||||
| Communication interface | Rs232 | ||||
| Balance | External power supply Output: 9V Lnput: 220V+15%50Hz | ||||
Product Details
:
Optional product:
Dedicated printer
Please contact us if you want to buy accessories.
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
